Black Insulated 2 Conductor Single Side Entry Splice 3/0 - 6
SKU: #280823
Part: #97107
UPC: 601986971072
Black Insulated 2 Conductor Single Side Entry Splice 3/0 - 6
SKU: #280823
Part: #97107
UPC: 601986971072
Total Price: $16.30 per piece Sold in increments of 1 piece
Description

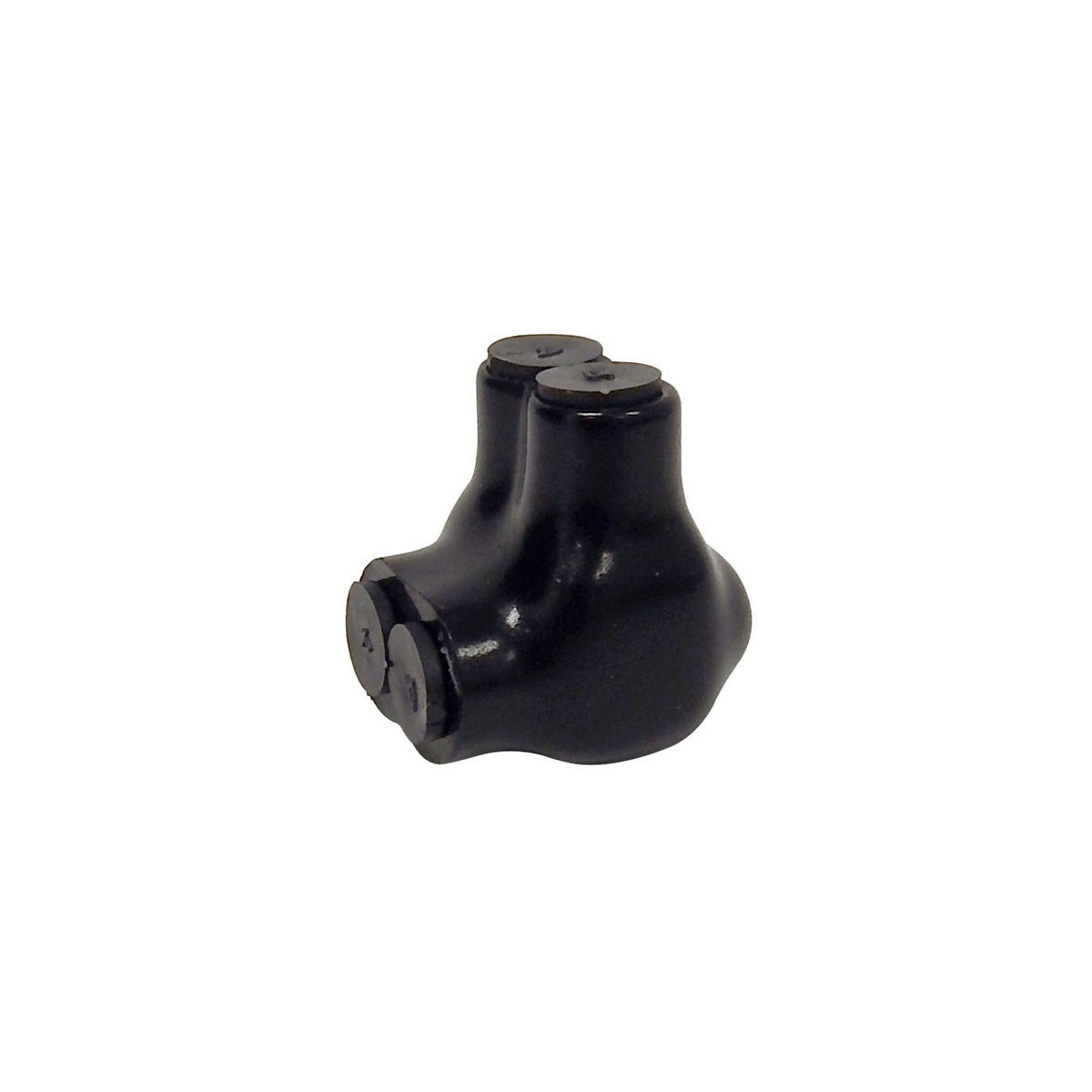

Black Insulated 2 Conductor Single Side Entry Splice 3/0 - 6 Electrical Connector
This Black Insulated 2 Conductor Single Side Entry Splice is designed for secure and efficient electrical power connections. Manufactured from 6061-T6 plated aluminum, it is suitable for use in wire and cable splicing applications within power distribution systems. The connector features black abrasion and chemical resistant PVC insulation, making it ideal for use by electrical distributors and switchgear suppliers in gutter, raceway, and enclosure power distribution environments.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Bolt Type: Hex Head
- Temperature Rating: -49 to 194 °F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.2850 lbs
Features
- Single Side Entry for ease of installation
- Insulated Mechanical Connector with black insulation
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled with oxide inhibitor to prevent corrosion
- Designed for gutter, raceway, and enclosure power distribution applications
