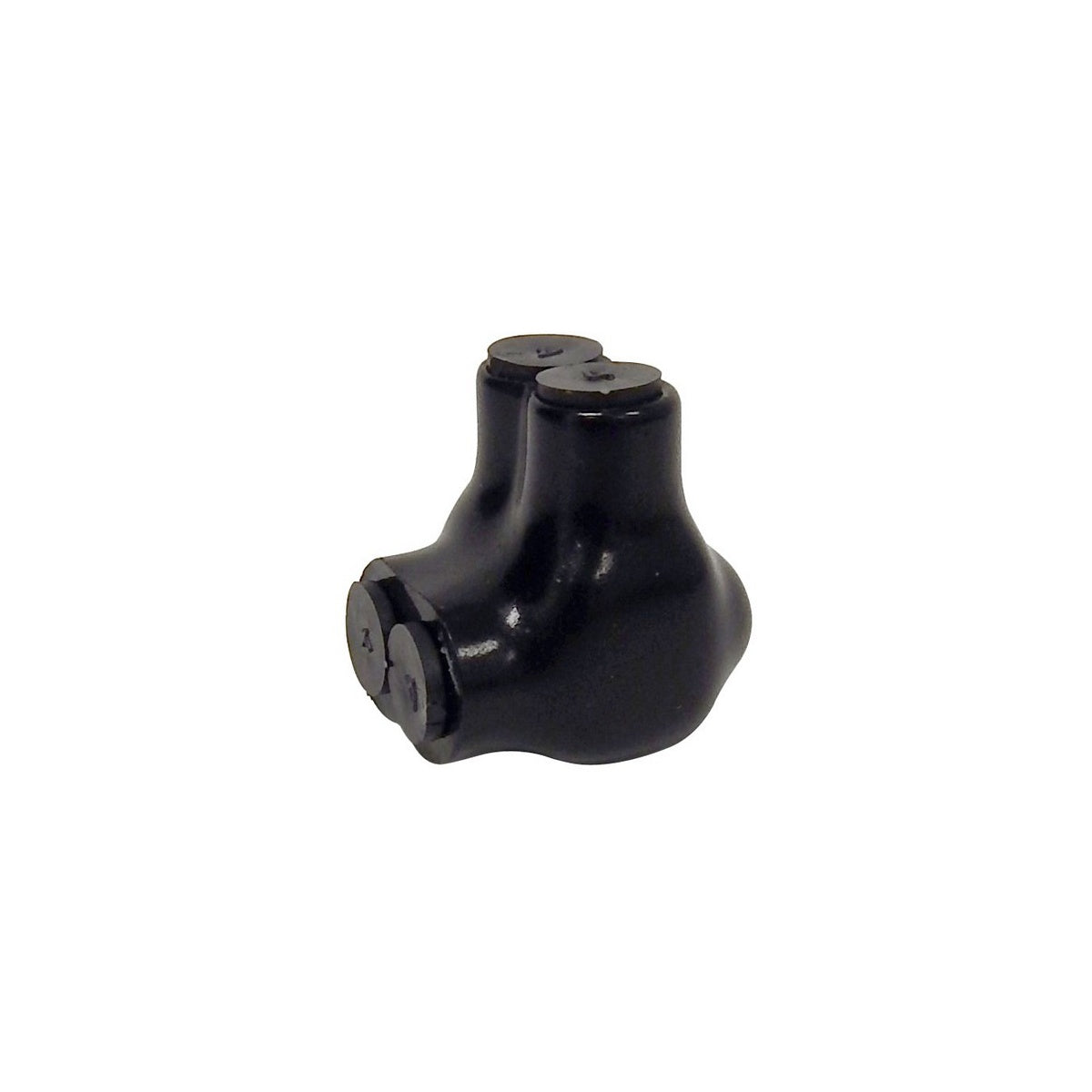

Black Insulated 2 Conductor Single Side Entry Splice 2 - 14 - Electrical Connector

This black insulated 2 conductor single side entry splice is designed for secure and easy splicing of electrical wires ranging from #2 to #14 gauge. Manufactured by Morris Products, this connector is suitable for use in electrical distribution, lighting solutions, and wire and cable applications. It is dual rated for aluminum and copper conductors, making it a reliable component for switchgear suppliers and electrical distributors.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Wire Range: #2 to #14
• Voltage Rating: 600 V
• Temperature Rating: -49¬∞F to 194¬∞F
• Insulation: Black abrasion and chemical resistant PVC
• Bolt Type: Hex Head
• Certifications: UL 486B Dual Rated CU9AL, cUL Listed
• Product Weight: 0.1500 lbs

Features

• Single side entry for simplified installation
• Dual rated for aluminum and copper conductors
• Pre-filled with oxide inhibitor to prevent corrosion
• Black insulated for abrasion and chemical resistance
• Suitable for gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
