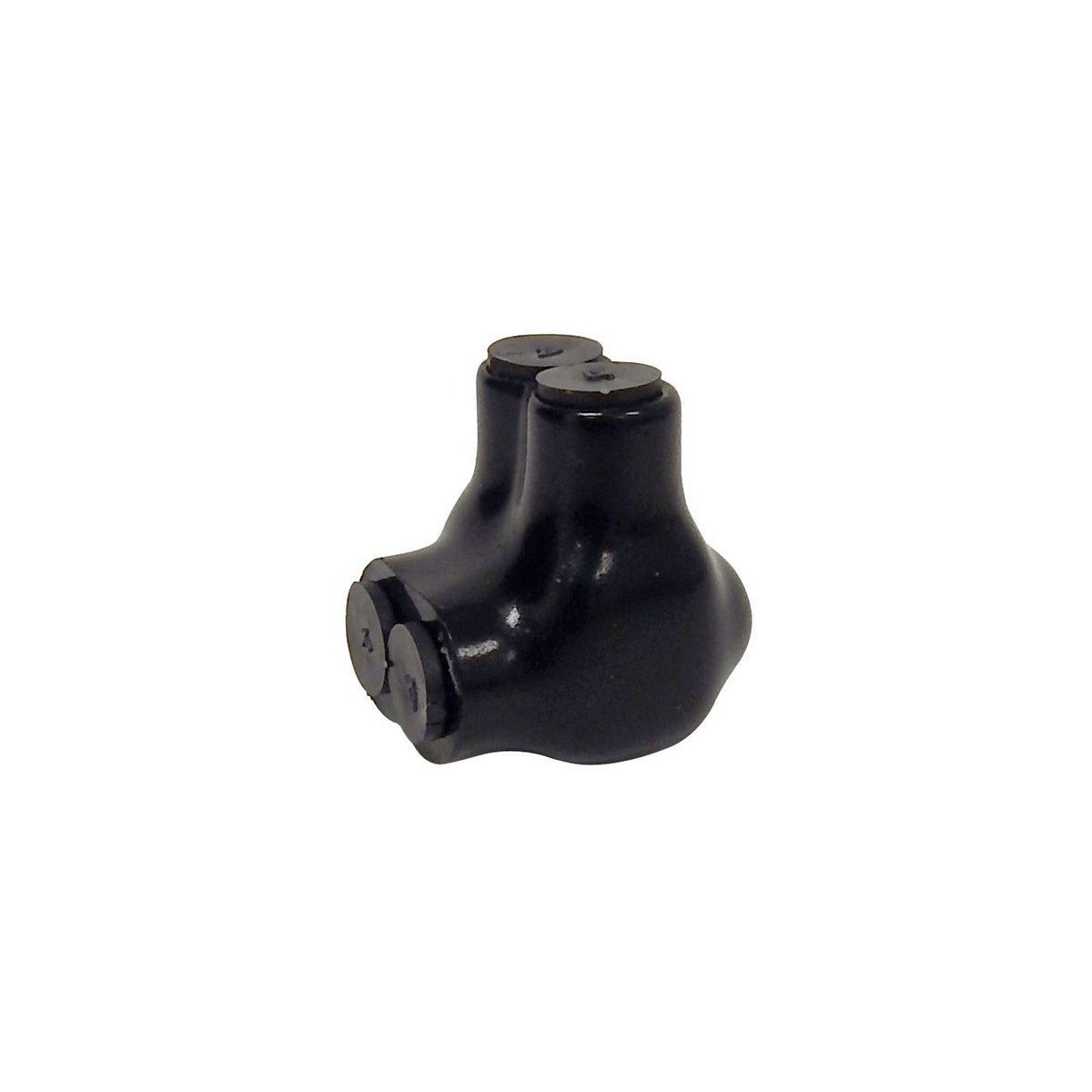

Black Insulated 2 Conductor Single Side Entry Splice 2/0 - 6 Electrical Connector

This Black Insulated 2 Conductor Single Side Entry Splice is designed for secure and efficient splicing of electrical wires in power distribution applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections with dual-rated aluminum mechanical connectors. The connector features black abrasion and chemical resistant PVC insulation and is intended for gutter, raceway, and enclosure power distribution systems.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Bolt Type: Hex Head
• Temperature Rating: -49 to 194 ¬∞F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL: Yes
• Product Weight: 0.2850 lbs
• Manufacturer Part #: 97106
• Wire Range: 2/0 - 6 AWG

Features

• Insulated mechanical connector with black insulation for protection
• Single side entry design for ease of installation
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Prefilled oxide inhibitor to prevent corrosion
• Suitable for gutter, raceway, and enclosure power distribution applications
