Morris Products
Black Insulated 2 Conductor Single Side Entry Splice 1/0 - 14
SKU: #280818
Part: #97105
UPC: 601986971058
Morris Products
Black Insulated 2 Conductor Single Side Entry Splice 1/0 - 14
SKU: #280818
Part: #97105
UPC: 601986971058
Description

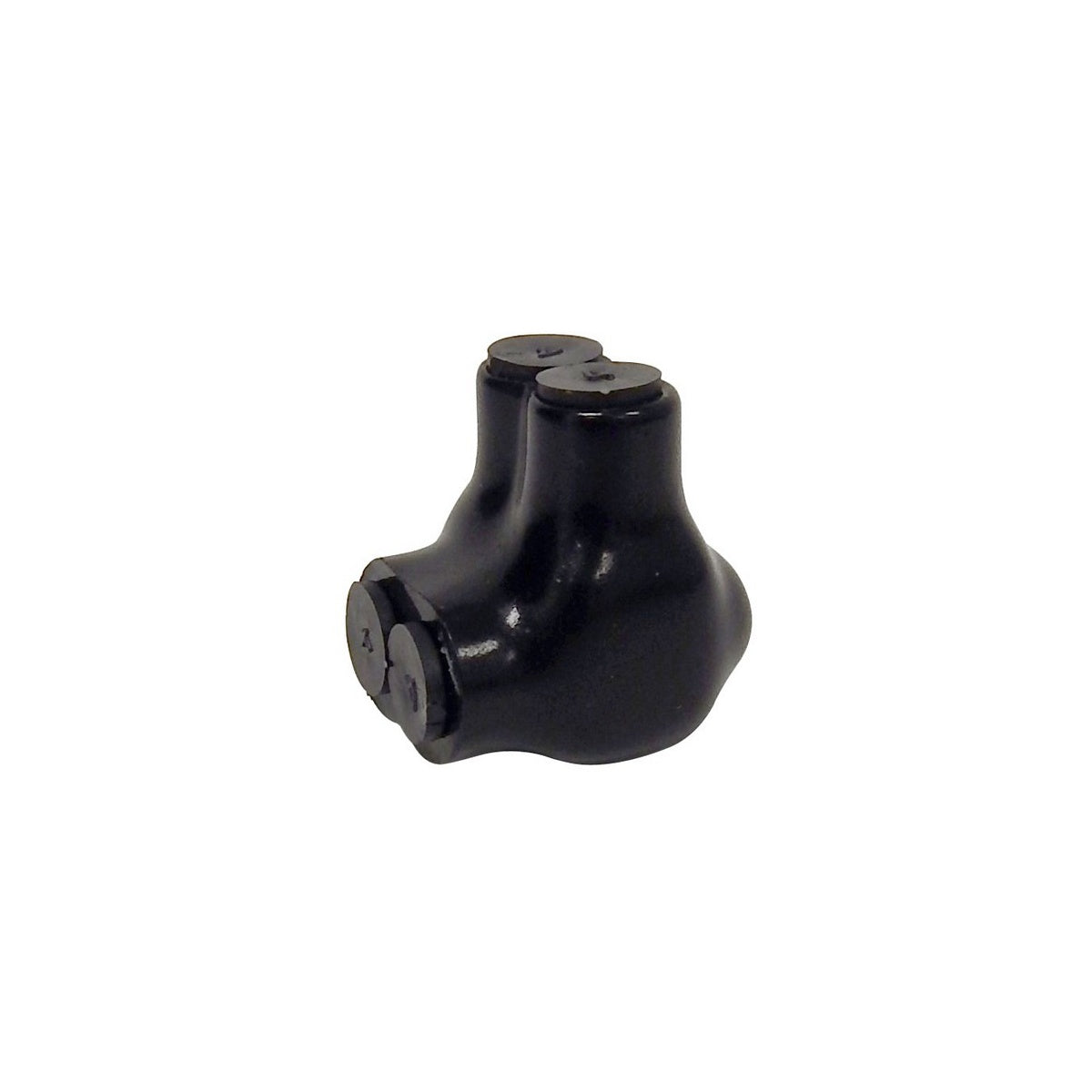

Black Insulated 2 Conductor Single Side Entry Splice 1/0 - 14 Electrical Connector
This black insulated 2 conductor single side entry splice is designed for secure electrical power connections in wire and cable applications. Manufactured from 6061-T6 plated aluminum, it is suitable for use in gutter, raceway, and enclosure power distribution systems. Ideal for electrical distributors and switchgear suppliers requiring durable and dual-rated connectors compatible with both aluminum and copper conductors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Temperature Rating: -49°F to 194°F
- Voltage Rating: 600 V
- Amp Rating: To conductor
- Bolt Type: Hex Head
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Wire Range: 1/0 - 14 AWG
- Product Weight: 0.1200 lbs
Features
- Single side entry for easy and secure splicing
- AL/CU dual rated for aluminum and copper conductor compatibility
- Prefilled oxide inhibitor to prevent corrosion
- Black insulated mechanical connector
- Suitable for gutter, raceway, and enclosure power distribution applications
