Morris Products
Black Insulated 2 Conductor Dual Entry Splice Dual Set Screw 750 - 250
SKU: #280894
Part: #97125
UPC: 601986971256
Morris Products
Black Insulated 2 Conductor Dual Entry Splice Dual Set Screw 750 - 250
SKU: #280894
Part: #97125
UPC: 601986971256
Description

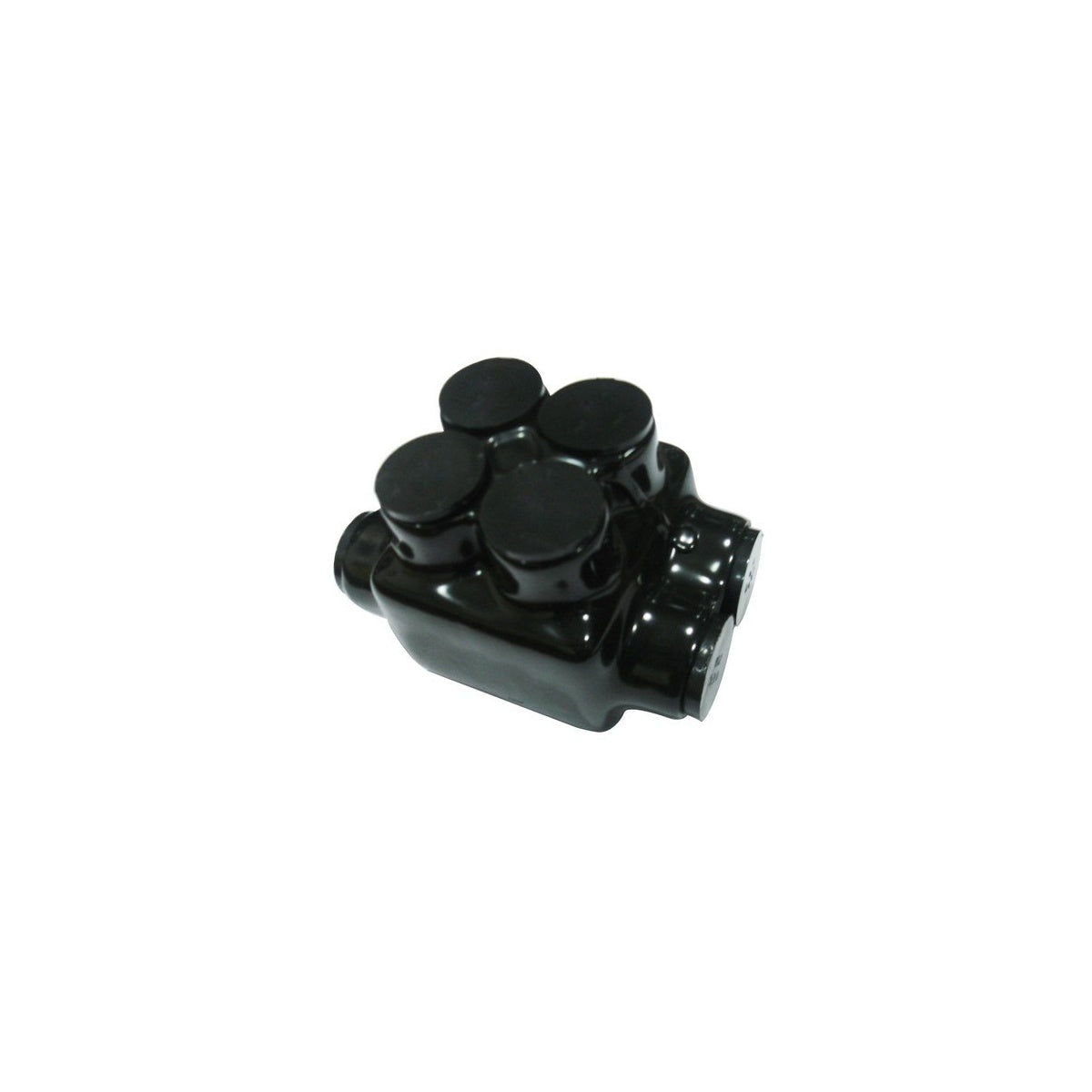

Black Insulated 2 Conductor Dual Entry Splice Dual Set Screw 750 - 250 Connector
This insulated mechanical connector is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections in power distribution applications. Featuring dual side entry and dual set screw design, it supports conductors ranging from 750MCM to 250MCM. The connector is suitable for gutter, raceway, and enclosure power distribution systems, providing a low-cost installation solution with durable black abrasion- and chemical-resistant PVC insulation.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 750MCM - 250MCM
- Voltage Rating: 600 V
- Temperature Rating: -49°F to 194°F
- Bolt Type: Hex Head
- Certifications: UL 486B Dual Rated CU9AL, cUL Listed, ANSI C119.4
- Product Weight: 2.6250 lbs
Features
- Dual side entry for 2 conductor connections
- Dual set screw design for secure mechanical connection
- AL/CU dual rated for aluminum and copper conductors
- Prefilled with oxide inhibitor to prevent corrosion
- Black insulated for abrasion and chemical resistance
- Suitable for use in gutter, raceway, and enclosure power distribution
