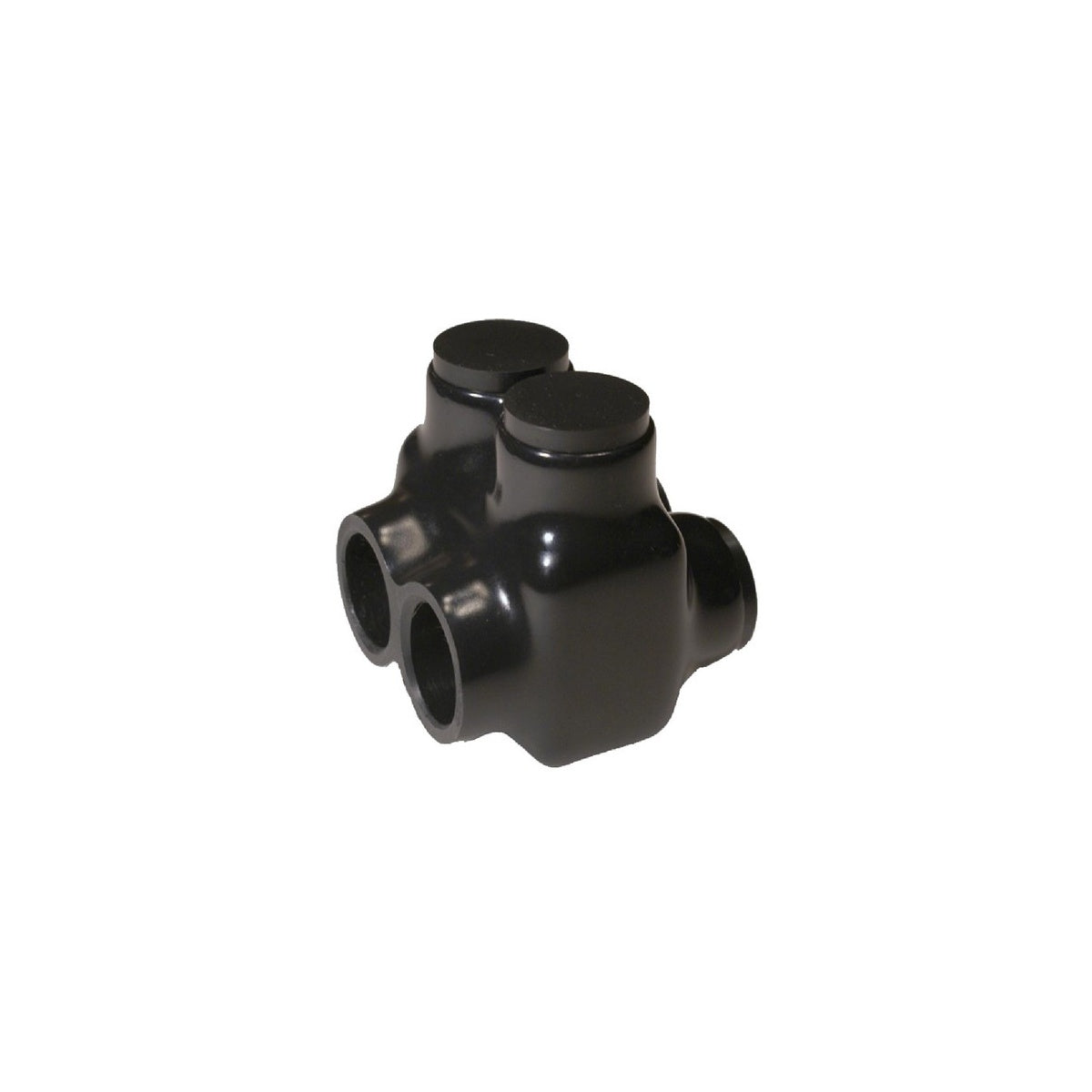

Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 600 - 250 Power Connector

This Black Insulated Dual Entry Splice Electrical Power Connector is designed for reliable electrical connections in power distribution applications. It supports wire sizes from 600 MCM down to 250 MCM with two conductor dual entry ports. Manufactured from durable 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, it is suitable for use by electrical distributors and switchgear suppliers requiring efficient and low-cost wiring solutions.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 600 MCM to 250 MCM
• Voltage Rating: 600 V
• Temperature Rating: -49¬∞F to 194¬∞F
• Bolt Type: Hex Head
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Listed: Yes
• Product Weight: 0.7950 lbs

Features

• Dual Side Entry for two conductor connections
• Insulated mechanical connector with black PVC insulation
• Aluminum mechanical connector suitable for aluminum and copper conductors (AL/CU dual rated)
• Prefilled with oxide inhibitor for improved conductivity and corrosion resistance
• Applicable for gutter, raceway, and enclosure power distribution installations

Downloads & Links

• Spec Sheet
