Morris Products
Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2 - 14
SKU: #280835
Part: #97113
UPC: 601986971133
Morris Products
Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2 - 14
SKU: #280835
Part: #97113
UPC: 601986971133
Description

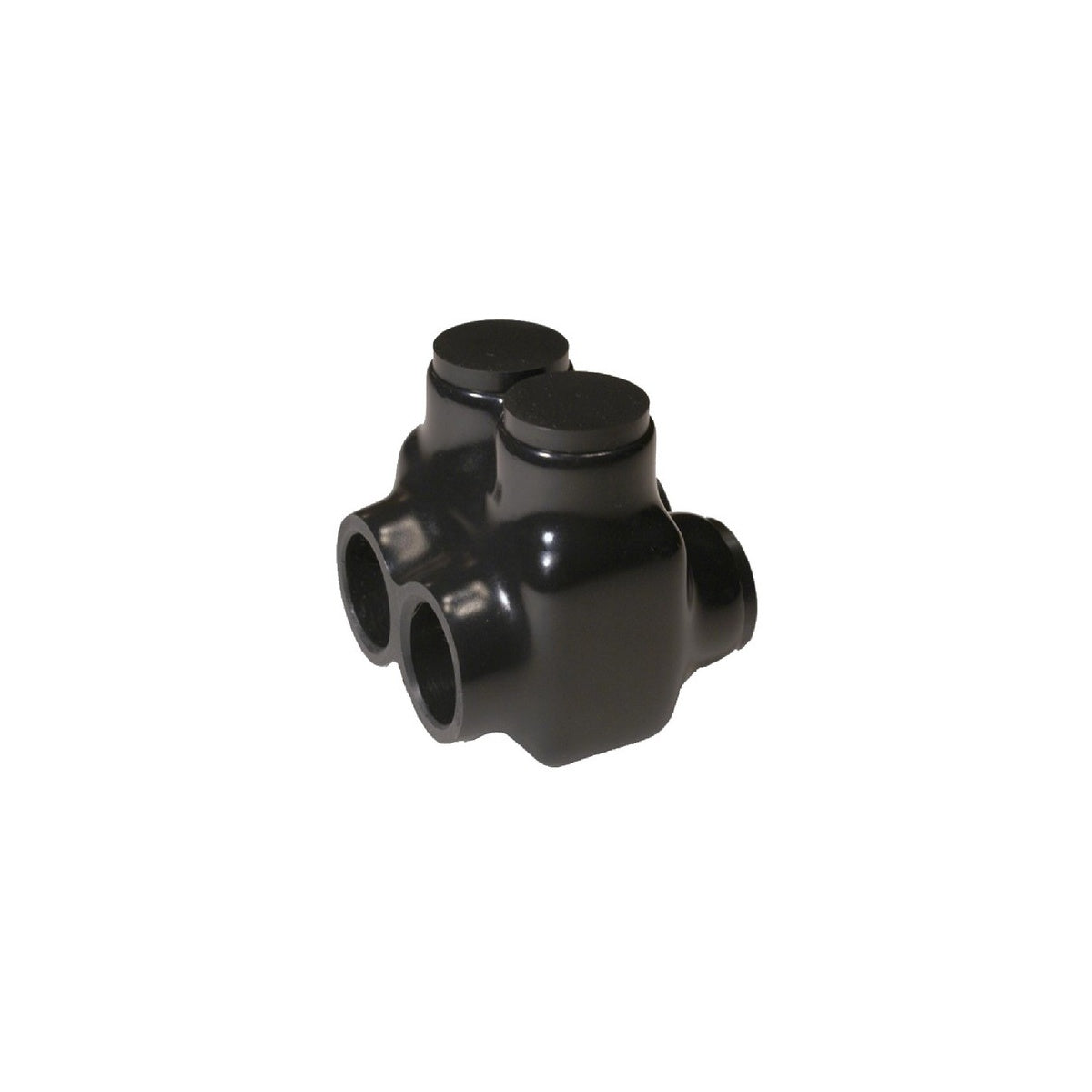

Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2 - 14 Electrical Connector
This Black Insulated Dual Entry Splice is a mechanical electrical power connector designed for low-cost installations in power distribution systems. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, it is suitable for use by electrical distributors and switchgear suppliers in applications such as gutters, raceways, and enclosures. The connector supports dual side entry for two conductors ranging from #2 to #14 wire sizes, providing a reliable and insulated connection for aluminum and copper conductors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #2 to #14
- Bolt Type: Hex Head
- Temperature Rating: -49°F to 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL Certified: Yes
- Product Weight: 0.1200 lbs
Features
- Dual Side Entry for Two Conductors
- Insulated Mechanical Connector with Black PVC Insulation
- AL/CU Dual Rated for Aluminum and Copper Conductors
- Prefilled Oxide Inhibitor for Corrosion Protection
- Compact Dimensions: Length 1.15", Width 1.5", Height 1.42"
- Hex Head Bolt for Secure Connections
- Suitable for Gutter, Raceway, and Enclosure Power Distribution Applications
