Morris Products
Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2/0 - 6
SKU: #280844
Part: #97116
UPC: 601986971164
Morris Products
Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2/0 - 6
SKU: #280844
Part: #97116
UPC: 601986971164
Description

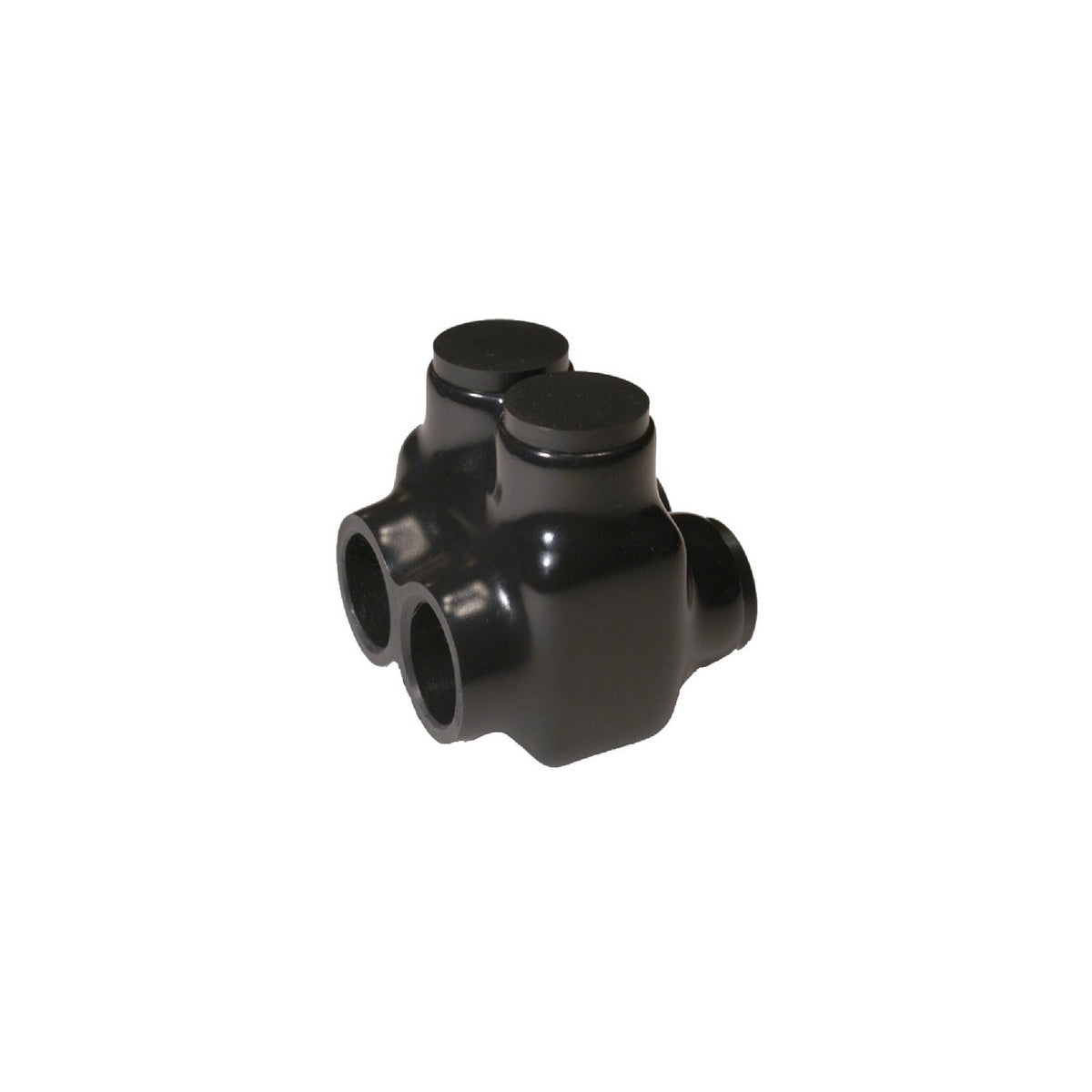

Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2/0 - 6 Electrical Connector
This black insulated dual entry splice connector is designed for electrical power distribution applications including gutters, raceways, and enclosures. It is suitable for connecting two conductors ranging from 2/0 to #6 wire sizes. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, this connector supports both aluminum and copper conductors and is dual rated for AL/CU use. It is ideal for electrical distributors and switchgear suppliers seeking reliable wire and cable connectors for low-cost installations.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 2/0 - #6
- Voltage Rating: 600 V
- Temperature Rating: -49°F to 194°F
- Bolt Type: Hex Head
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
Features
- Insulated Mechanical Connector with Black Insulation
- Dual Side Entry for two conductors
- Aluminum Mechanical Connector suitable for AL/CU conductors
- Prefilled Oxide Inhibitor for improved conductivity and corrosion resistance
- Designed for gutter, raceway, and enclosure power distribution applications
