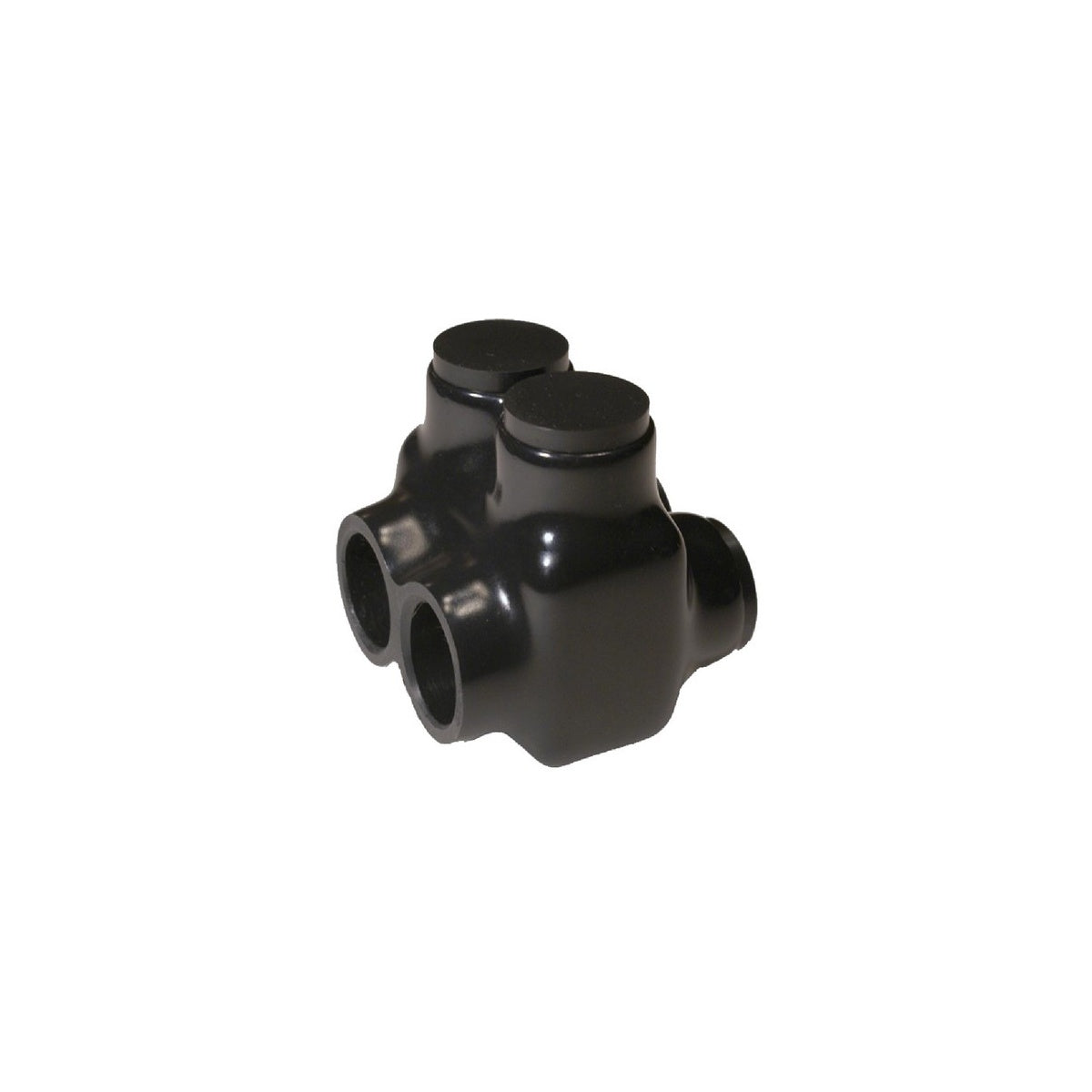

Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 1/0 - 14 Electrical Connector

This Black Insulated Dual Entry Splice is designed for electrical power connections, providing a reliable mechanical connection for two conductors. Suitable for use in wire and cable installations, this connector supports low-cost electrical distribution applications including gutters, raceways, and enclosures. It is ideal for electrical distributors and switchgear suppliers requiring a durable and dual-rated connector for aluminum and copper conductors.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Bolt Type: Hex Head
• Wire Range: 1/0 to #14 AWG
• Temperature Rating: -49 to 194¬∞F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• Certifications: UL 486B Dual Rated CU9AL, ANSI C119.4, cUL Listed
• Product Weight: 0.2250 lbs

Features

• Dual Side Entry for two conductor connections
• Prefilled Oxide Inhibitor to prevent corrosion
• AL/CU Dual Rated for aluminum and copper conductor compatibility
• Black insulated mechanical connector for added protection
• Suitable for power distribution in gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
