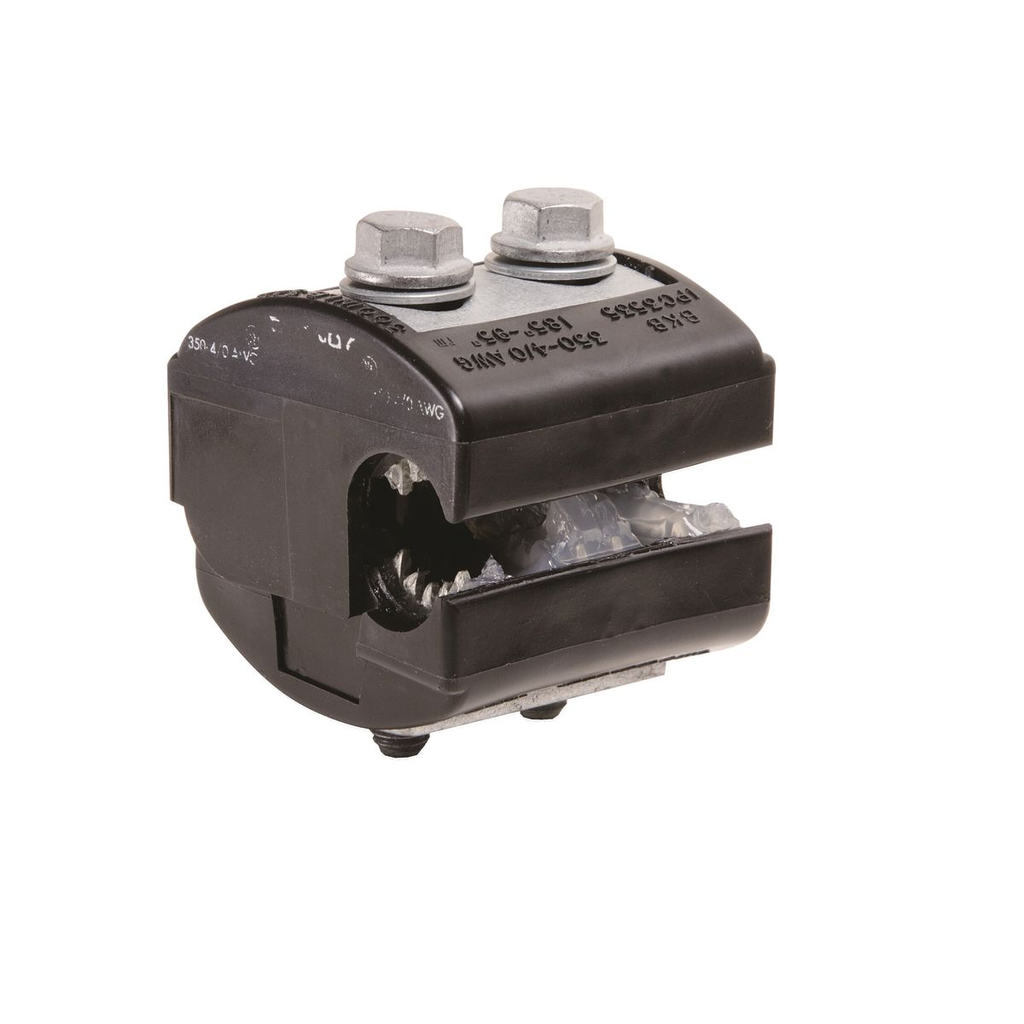

BIPC5004/0 Insulation Piercing Connector for Electrical Wire and Cable

The BIPC5004/0 by Burndy is an insulation piercing connector designed for reliable electrical connections in wire and cable systems. It is suitable for copper and aluminum conductor combinations up to 90°C and rated for 600 volts. This product is ideal for electrical distributors and switchgear suppliers requiring secure and efficient connections without the need for conductor insulation stripping.

Specifications

• Application: For Copper and Aluminum Conductor Combinations Up To 90°C, 600 Volt Applications
• Material: Aluminum
• Maximum Voltage: 600 volts
• Conductor Run Range (AL & CU): 350-500 kcmil
• Conductor Tap Range (AL & CU): 4 AWG-4/0 AWG
• Installation Torque Recommended: 400 in-lb
• Number of Screws: 1
• Screw Type: Hexagonal Bolt
• Socket Size: 9/16 inch
• Dimensions (H x L x W): 3.25 in x 1.80 in x 2.62 in
• Certification: CSA Approved, UL Listed (UL 486A-486B)
• UPC: 781810128756

Features

• Insulation piercing capability eliminates the need for conductor insulation stripping
• UL486B Listed and AL9CU rated for copper and aluminum conductor combinations
• Insulation piercing design removes the need for taping
• Easy snap-out tabs ease installation and allow customization
• Protects connection from dirt and debris
• Simple bolt-on connection for secure and fast installation
