BE2 Two Gang Outlet Box Extender – Electrical Box Extension Solutions

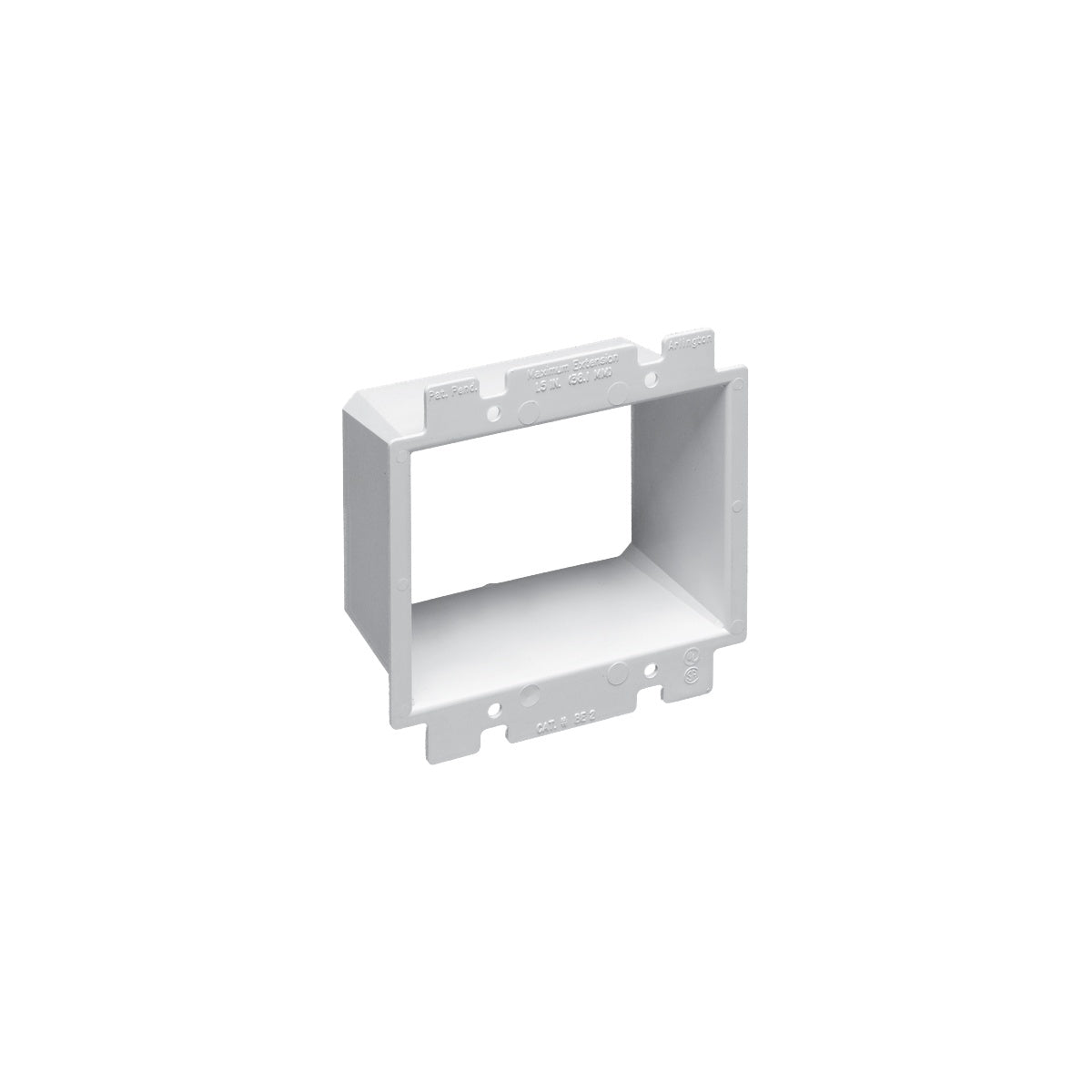

The BE2 Two Gang Outlet Box Extender by Arlington Industries is designed to extend set-back metal or non-metallic electrical boxes up to 1-1/2 inches, ensuring a level and fully supported wiring device flush with the wall surface. This plastic extender is suitable for use by electrical distributors and switchgear suppliers to address wiring box setbacks commonly encountered in lighting solutions and wire and cable installations. It works with most steel and non-metallic outlet boxes and is compatible with all standard devices, switches, and GFCIs.

Specifications

• Material: Plastic
• Color: White
• Manufacturer: Arlington Industries
• Manufacturer Part #: BE2
• Product Weight: 0.0540 lbs
• Extension Capacity: Up to 1-1/2 inches
• Dimensions (inches): 4.100 (A) x 4.188 (B) x 1.813 (C)
• UL Listed: Yes, cULus Listed
• Fire Rating: 2-hour fire rating
• Compliance: NEC 2017 Article 314.20 for set back boxes

Features

• Levels and supports wiring devices where the box is set back from the wall surface
• Works with handy boxes and 4” square electrical boxes with plaster rings
• Functions with all standard devices, switches, and GFCIs
• Manufactured from 105°C continuous use 94V0 rated flame retardant plastic for safer installations
• Non-conductive design prevents arcing and shorting in steel boxes by creating a barrier between box and device screws
• Trimmable flange for use with standard plates
• Made in USA
• Patented design with additional patents pending

Downloads & Links

• Specification Sheet
• Catalog Page
• BE2 Line Drawing
