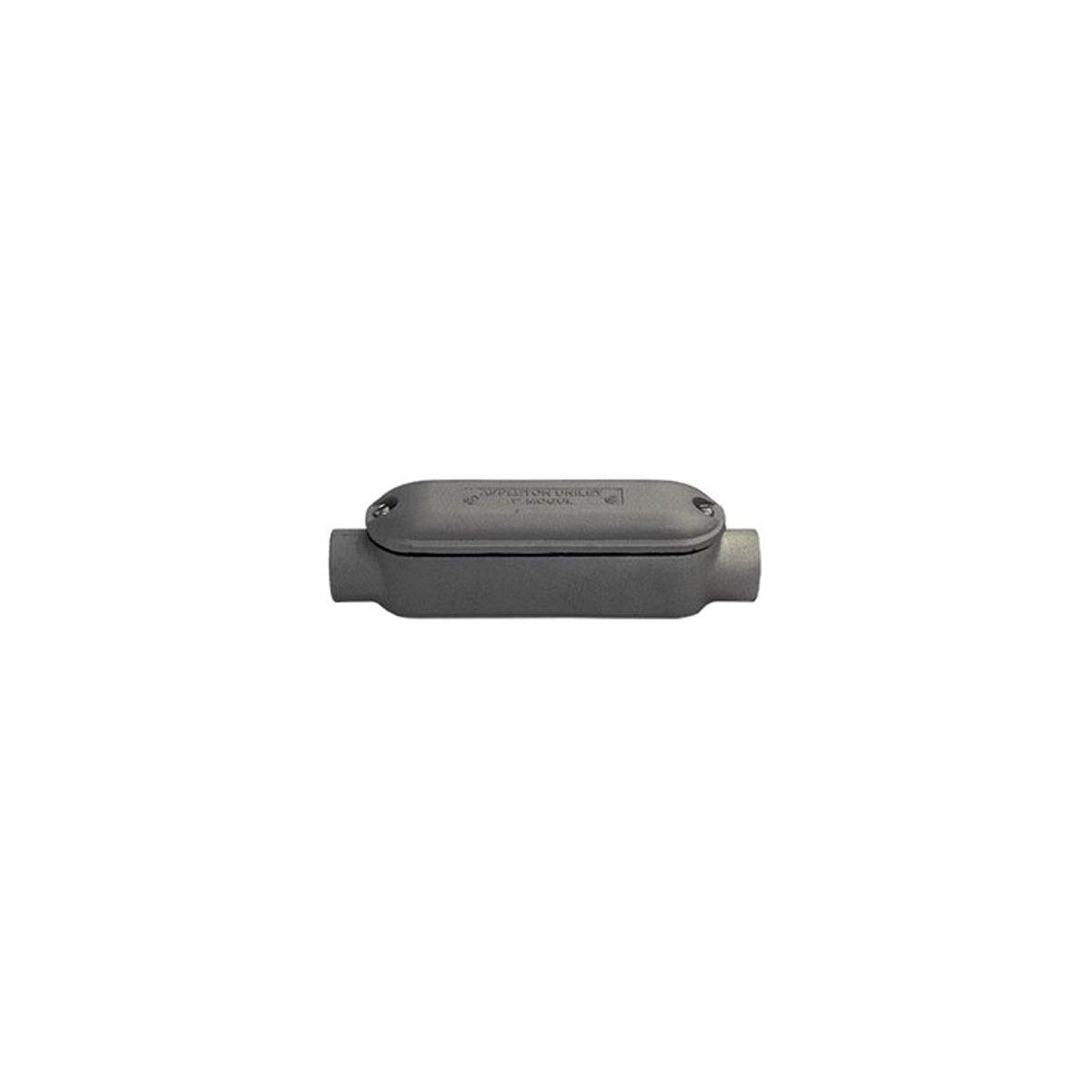

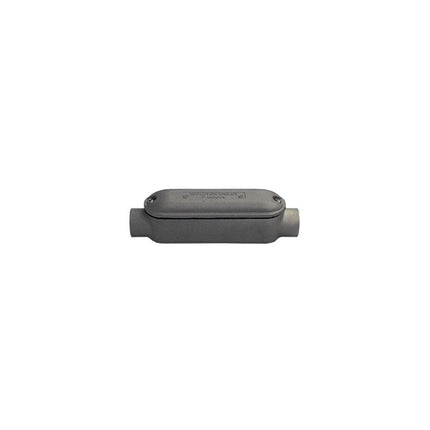

BC200A, IMC/Rigid Conduit Outlet Body - Mogul Conduit Outlet Body

The Appleton BC200A IMC/Rigid Conduit Outlet Body is designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). It facilitates the pulling of large and heavy conductors, ideal for straight, 45°, or 90° angle turns, as well as making taps and splices. This conduit body is an essential component for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring durable conduit fittings that ensure effective wiring space and protection.

Specifications

• Material: Epoxy Powder Coated Copper-Free Aluminum (Body)
• Installation: Threaded
• Weight: 5.4 lbs
• Manufacturer: Appleton
• Manufacturer Part Number: BC200A
• UPC: 781381743341
• Type: NEC 6x8x C Mogul Conduit Outlet Body
• Applicable Hub Size: 2 inches
• Max Wire Fill: 300 conductors (per NEC Chapter 9, Table 3B)
• Length Requirement: 16 inches (distance between conduit stops per NEC 314.28(A)(1))
• Standard Finish: Epoxy powder coat on aluminum body and cover

Features

• Larger body size to facilitate pulling of large and heavy conductors
• Specially designed raised cast covers provide additional wiring area
• Complete with assembled cover and neoprene gasket for environmental protection
• Threaded installation ensures tight, rigid joints and ground continuity
• Captive stainless steel screws prevent screw ‚Äúfreezing‚Äù and speed installation
• Constructed of copper-free aluminum with epoxy powder coating for corrosion resistance
• Suitable for hazardous locations: Class I, Division 2 per NEC 501.10(B)(4)
