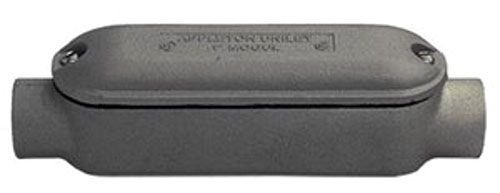

BC100A, IMC/Rigid Conduit Outlet Body – Mogul Conduit Outlet Body

The Appleton BC100A IMC/Rigid Conduit Outlet Body is designed to facilitate the pulling of large and heavy conductors in electrical installations. This conduit body is part of the NEC 6x8x Mogul series, featuring larger body sizes and specially designed raised cast covers to provide additional wiring space. Ideal for straight, 45°, or 90° angle turns, as well as for making taps and splices, it suits applications requiring durable conduit fittings from a trusted electrical distributor and switchgear supplier.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: BC100A
• Material: Chromate
• Installation: Taper Threaded
• Product Weight: 1.5 lbs
• UPC: 781381743310

Features

• Larger body size facilitates pulling of large and heavy conductors
• Specially designed raised cast covers provide additional wiring area
• Suitable for pulling straight, 45°, or 90° angle turns and making taps and splices
• Complete with assembled cover and neoprene gasket
• Made of chromate-finished material for durability
• Installation via taper threaded connections for secure, rigid joints
