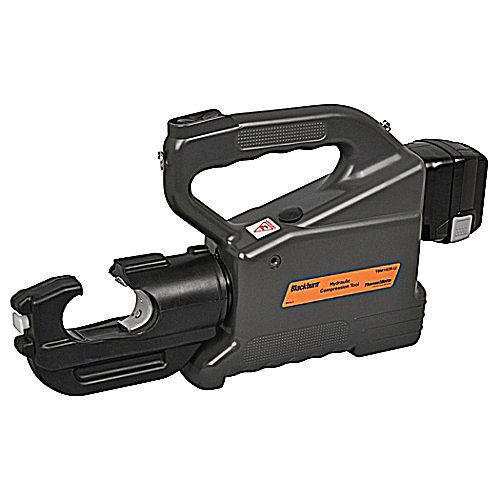

Battery Power Crimp Tool – Lithium Ion Crimping Tool

The Battery Power Crimp Tool by Thomas & Betts is a 14-ton lithium-ion battery-operated open crimp tool designed for efficient crimping of copper and aluminum connectors. Ideal for electrical distributors and switchgear suppliers, this tool is engineered to crimp #8-900 kcmil copper and #10-750 kcmil aluminum connectors. It supports applications in wire and cable installation and maintenance, offering flexibility and power in lighting solutions and electrical distribution systems.

Specifications

• Manufacturer: Thomas & Betts
• Manufacturer Part #: TBM14CR-LI
• Crimping Force: 14 ton
• Battery Type: Lithium Ion
• Weight: 37.3 lbs
• Capacity: Cu #8-900 kcmil, Al #10-750 kcmil

Features

• 14-ton crimping capacity for heavy-duty electrical connectors
• Open crimp tool with rotating head for maximum crimping flexibility
• Powered by 14.4V lithium-ion battery providing longer run time and rapid recharge
• Designed for one-handed control of ram advancement and retraction
• Protective rubber boot on the head for durability
• Rapid advance feature decreases crimp time
• Visual indication of complete crimp compression (green/orange/red) available on related tools in the series
