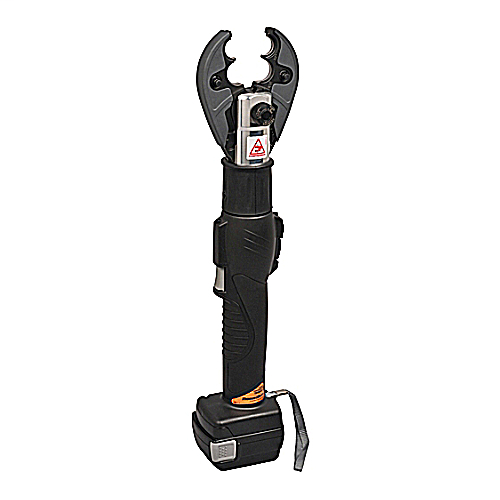

Battery Power Crimp Tool – Lithium-Ion Crimping Tool

The Battery Power Crimp Tool by Thomas & Betts is a 6-ton lithium-ion battery powered inline open OD crimp tool designed for crimping copper and aluminum connectors ranging from #8 to 300 kcmil Cu and #8 to 4/0 kcmil Al. This tool is suitable for electrical distributors and lighting solutions requiring reliable wire and cable crimping. It offers one-handed control for ram advancement and retraction, enhancing efficiency in electrical and utility applications.

Specifications

• Manufacturer: Thomas & Betts
• Manufacturer Part #: TBM6UCR-LI
• Crimping Force: 6 ton
• Battery Type: Lithium Ion
• Product Weight: 22.27 lbs
• Capacity: Cu #8–300 kcmil, Al #8–4/0 kcmil

Features

• Inline open OD crimp design with rotating 180° jaws for maximum maneuverability in tight spaces
• Integrated LED work lights for enhanced visibility during operation
• One-handed control for ram advancement and retraction with rapid advance feature to decrease crimp time
• Powered by a 14.4V DC motor for consistent crimping performance
• Accepts W-style dies for versatile connector compatibility
• Protective rubber boot on “C” head to safeguard tool and workpiece
