Ball Nose Panel Receptacle - Electrical Connector

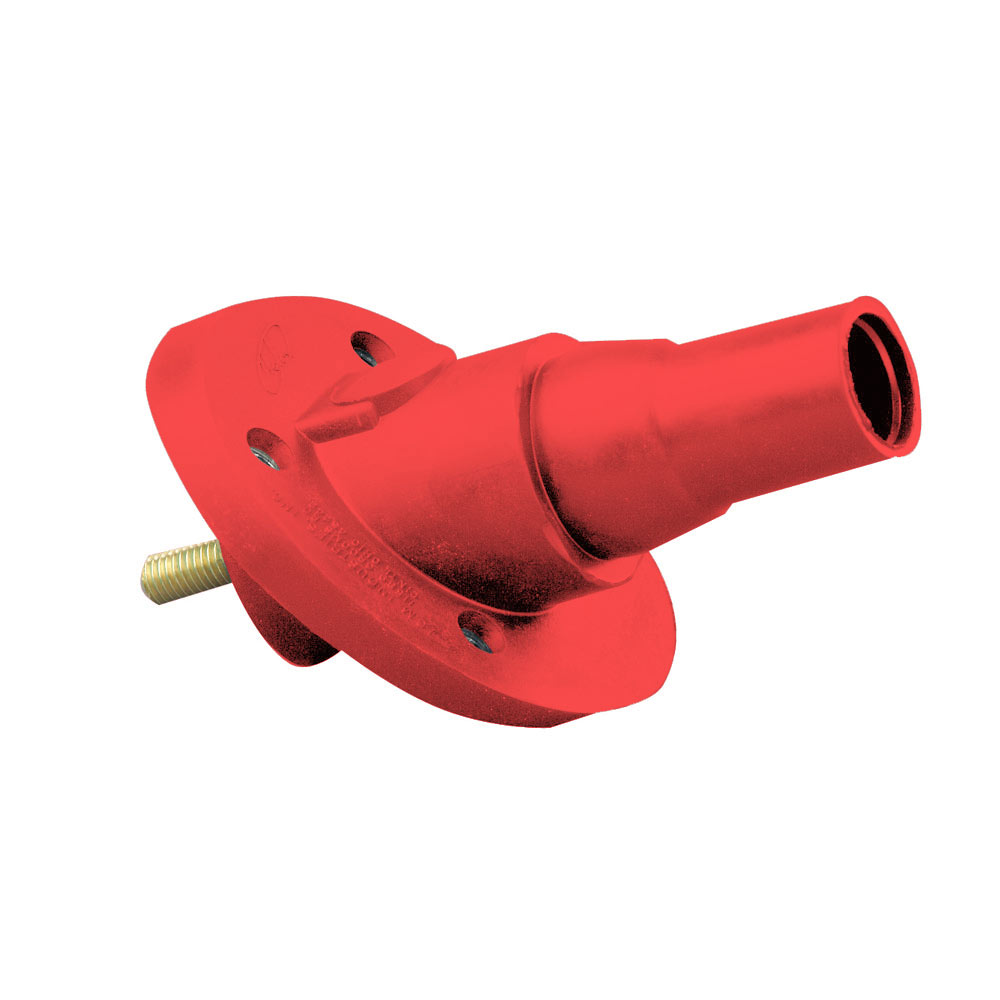

The Ball Nose Panel Receptacle is a female electrical connector designed for high-amperage applications up to 690 amperes and 600 volts. It is part of Leviton's 22 Series cam-type connectors, suitable for use with wire and cable sizes ranging from 250 to 777 MCM. This panel receptacle is engineered for reliable power distribution systems and is ideal for electrical distributors and switchgear suppliers requiring durable, high-performance lighting solutions and electrical connections.

Specifications

• Manufacturer Part #: 22R24-R
• Gender: Female
• Amperage: 690 amperes
• Maximum Voltage: 600 volts
• Color: Red
• Compatible Cable Size: 250 - 777 MCM
• Product Weight: 6.4 lbs
• Threaded Stud: 1/2-13 UNC

Features

• Intermateable and compatible with competitive same nose cam-type products for retrofit applications
• Shatter and crack proof high durometer rubber insulating sleeve for durability
• Color-coded red insulating sleeve for fast and easy phase identification
• Self-compensating for wear with slit and cam in male contact providing spring action for extended usage
• Fast connect/disconnect with twist and pull double cam/guide boss design
• High conductivity and vibration-proof connection ensured by double cam design
• Wide range of applications supporting various cable sizes and amperage ratings up to 690A continuous current
