Bagged version Power Unit, Central Vacs with Quiet Operation

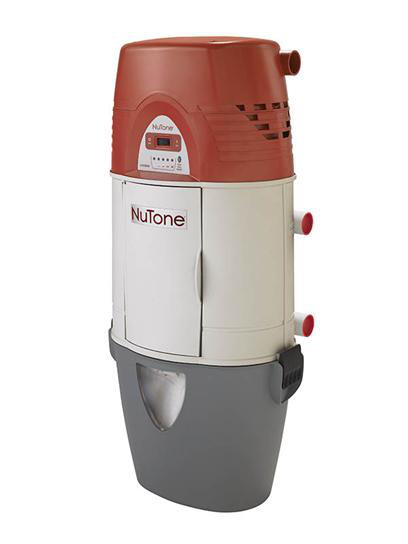

This NuTone VX1000 Bagged Power Unit is designed for central vacuum cleaning systems in larger homes up to 12,000 square feet. It offers powerful air performance with a dual two-stage universal bypass motor delivering 1040 air watts. Its compact oval shape allows close wall mounting to maximize space. This power unit is ideal for electrical distributors and switchgear suppliers seeking reliable, high-performance vacuum solutions for residential applications.

Specifications

• Manufacturer: NuTone
• Model Number: VX1000
• Power: 1040 watts (4.8 horsepower at full open orifice)
• Dimensions: 17.5" W x 39" H x 11.5" D
• Voltage: 240 Vac
• Airflow: 230 CFM at 2" opening
• Water Lift: 130"
• Amperage: 15 Amps
• Capacity: 8 gallon filter bag
• Primary Filtration: 2-ply disposable HEPA rated filter bag with anti-stick inner liner
• Secondary Filtration: Screen

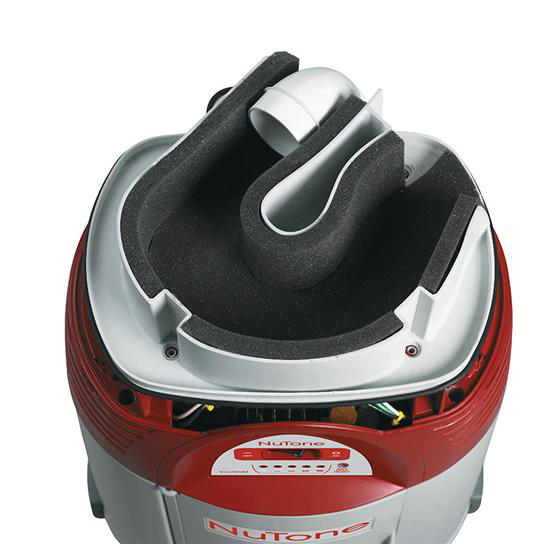

• Sound Suppression: Internal sound suppression system for quiet operation
• Power Cord Length: 6 feet
• Switch on Power Unit: Yes
• Utility Valve Included: Yes
• UL Listed
• Product Weight: 41.4 lbs
• Housing Material: Corrosion resistant, flame retardant engineered thermoplastic
• Warranty: 8 years

Features

• Revolutionary internal sound suppression system ensures quiet performance
• Status light indicates when the replaceable bag is full and needs changing

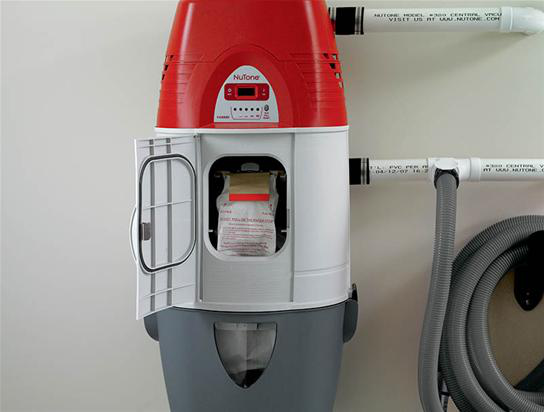

• Easy access door for quick bag replacement
• New motor design provides up to five times more cleaning power than conventional vacuums

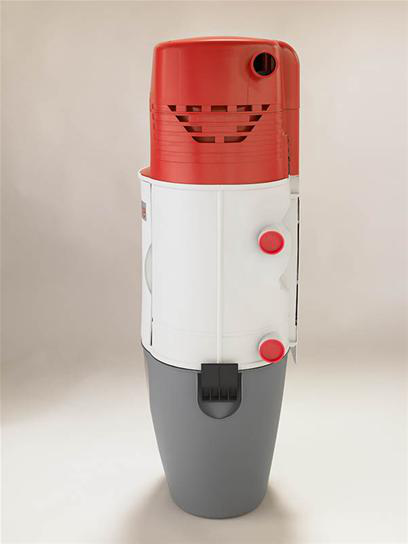

• Dual vacuum air intakes allow connection to the trunk line from right, left, or both sides
• Oversized debris pail handles for easy removal and emptying
• Extra-large 8-gallon filter bag with self-closing collar minimizes dust exposure during bag changes
• Efficient filtration system exhausts microscopic dust particles outside the home, improving indoor air quality

Downloads & Links

• Spec Sheet
• Operating Instructions
• Installation Guide
