B613AZN – Beam Clamp for Electrical Distributor and Lighting Solutions

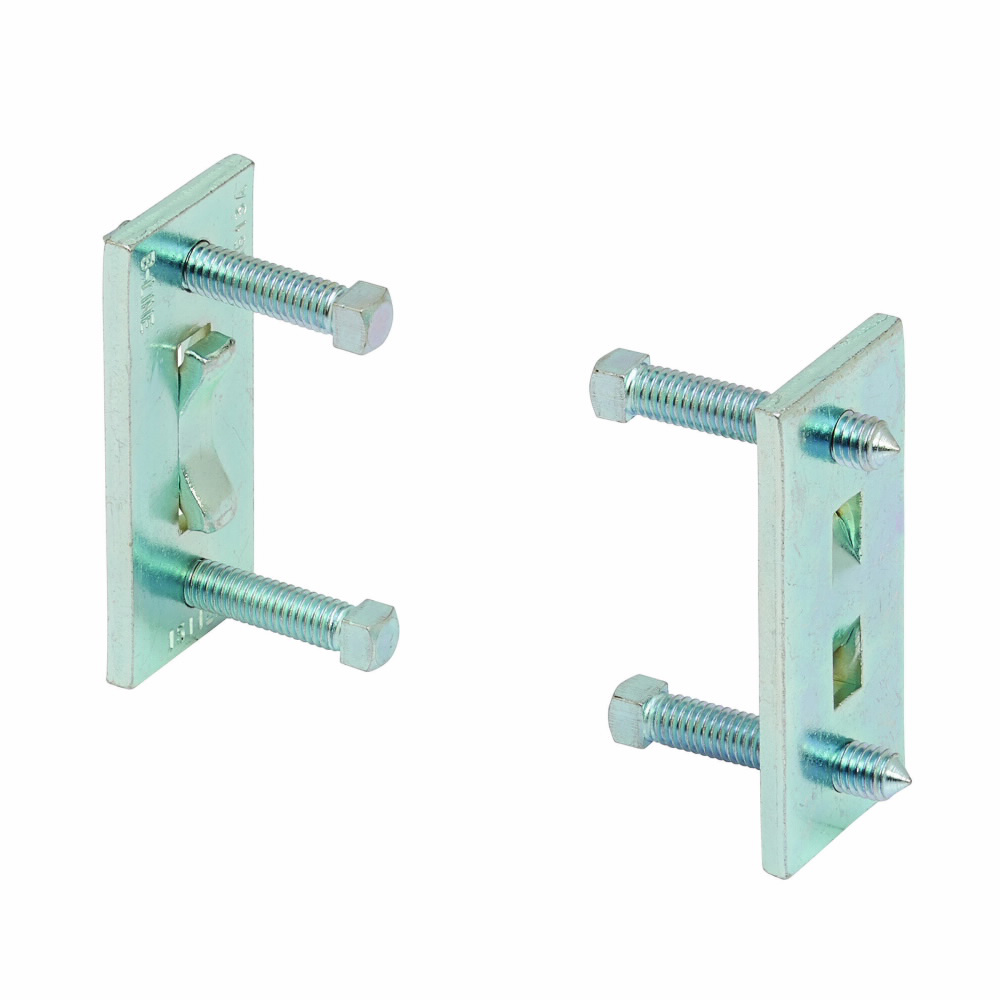

The B613AZN beam clamp by B-Line is a robust steel column support designed for use with B22 and B24 channel systems. It is ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear supplier applications requiring secure and reliable structural support. This clamp provides a slip-resistant connection with a safety factor of 3, ensuring dependable performance in industrial and commercial electrical setups.

Specifications

• Manufacturer: B-Line
• Material: Steel
• Dimensions: Width 1.625 in, Height 3.5 in, Length 3.5 in
• Product Weight: 1.0 lb
• Design Load: 800 lbs (3.56 kN) slip with Safety Factor of 3
• Compatible Channels: B22 and B24
• Setscrews Torque: To be torqued to 19 ft./lbs
• Finish Options: Zinc (ZN), Green (GRN), Hot-Dipped Galvanized (HDG)
• UPC: 781011560966
• Manufacturer Part Number: B613AZN

Features

• Slip-resistant column support designed for secure attachment to structural channels
• Constructed from durable steel for long-lasting performance in electrical installations
• Quick installation with setscrews requiring precise torque for optimal safety
• Compatible with B-Line strut systems, facilitating versatile mounting options
• Ideal for supporting wire and cable runs, switchgear, and lighting solutions in commercial environments
• Sold in pairs for balanced load distribution
• Designed to meet industry safety standards with a defined safety factor

Downloads and Links

• B-Line Series Strut Systems Catalog PDF – Comprehensive technical specifications and installation guidelines.
• Beam Clamps Section (Page 154) – Detailed material, finish, and load data for beam clamps.
