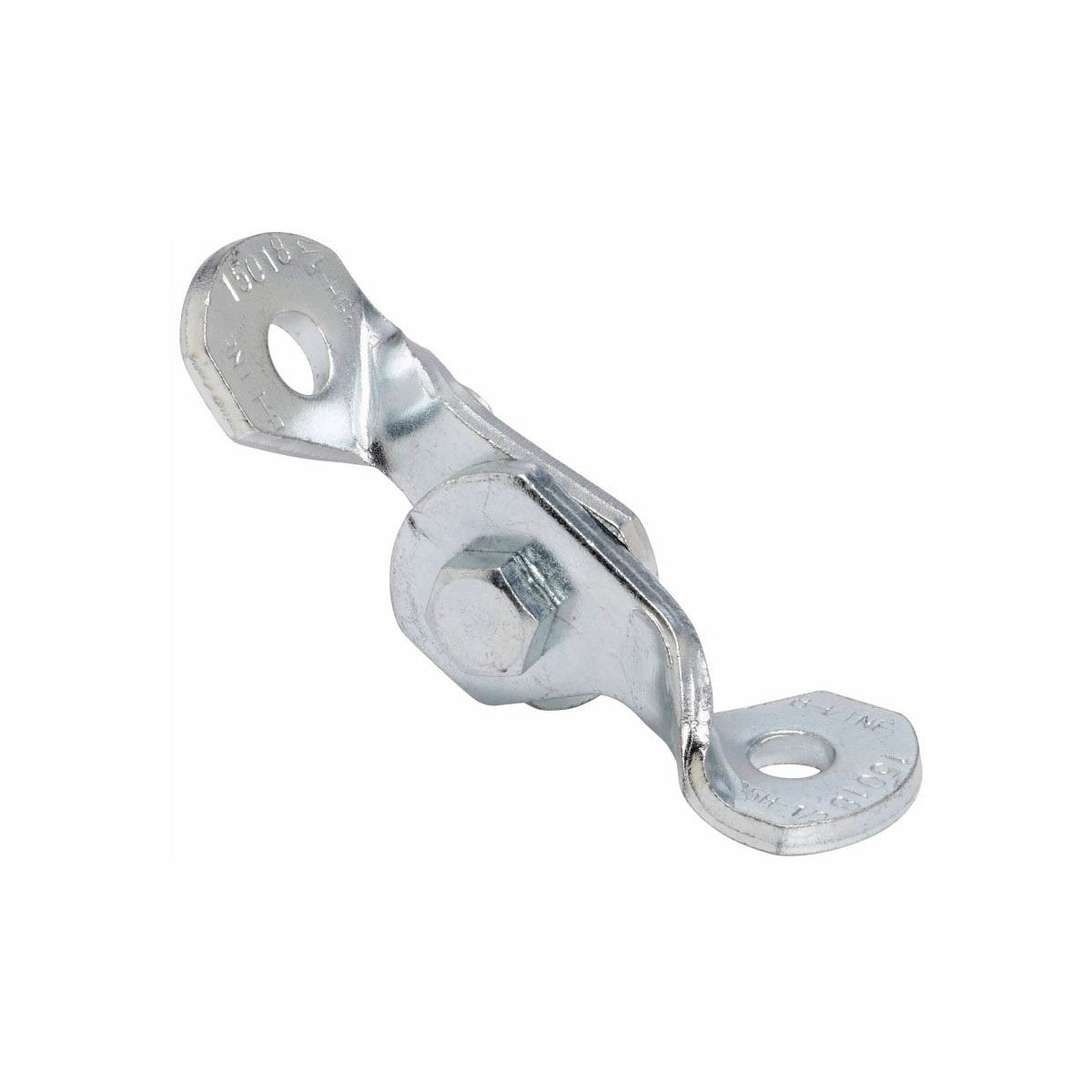

B335-2-5/8-ZN, Strut Hinge Fitting - Adjustable Strut Fitting

The B335-2-5/8-ZN is a three-hole adjustable hinge fitting designed for use in strut systems, suitable for electrical distributors and switchgear suppliers requiring reliable structural connections. This fitting enables adjustable angular connections within strut frameworks commonly used in lighting solutions, wire and cable management, and other electrical infrastructure applications.

Specifications

• Material: Carbon Steel
• Finish: Zinc Electroplated
• Weight: 0.9400 lbs
• Hole Size: 11/16” (17.4 mm)
• Standard Finish Codes: ZN (Electro-Plated Zinc per ASTM B633 SC3 Type III or ASTM A653)
• Manufacturer Part #: B335-2-5/8-ZN

Features

• Three-hole adjustable hinge design allows flexible installation and alignment
• Constructed from hot-rolled, pickled, and oiled carbon steel with zinc electroplated finish for corrosion resistance
• Compatible with 12 gauge (2.6) strut channel systems
• Recommended use with 1/2”-13 hex head cap screws and channel nuts for rated load performance
