B104-ZN, Strut Angle Fitting – Strut Fittings for Electrical Distributor and Lighting Solutions

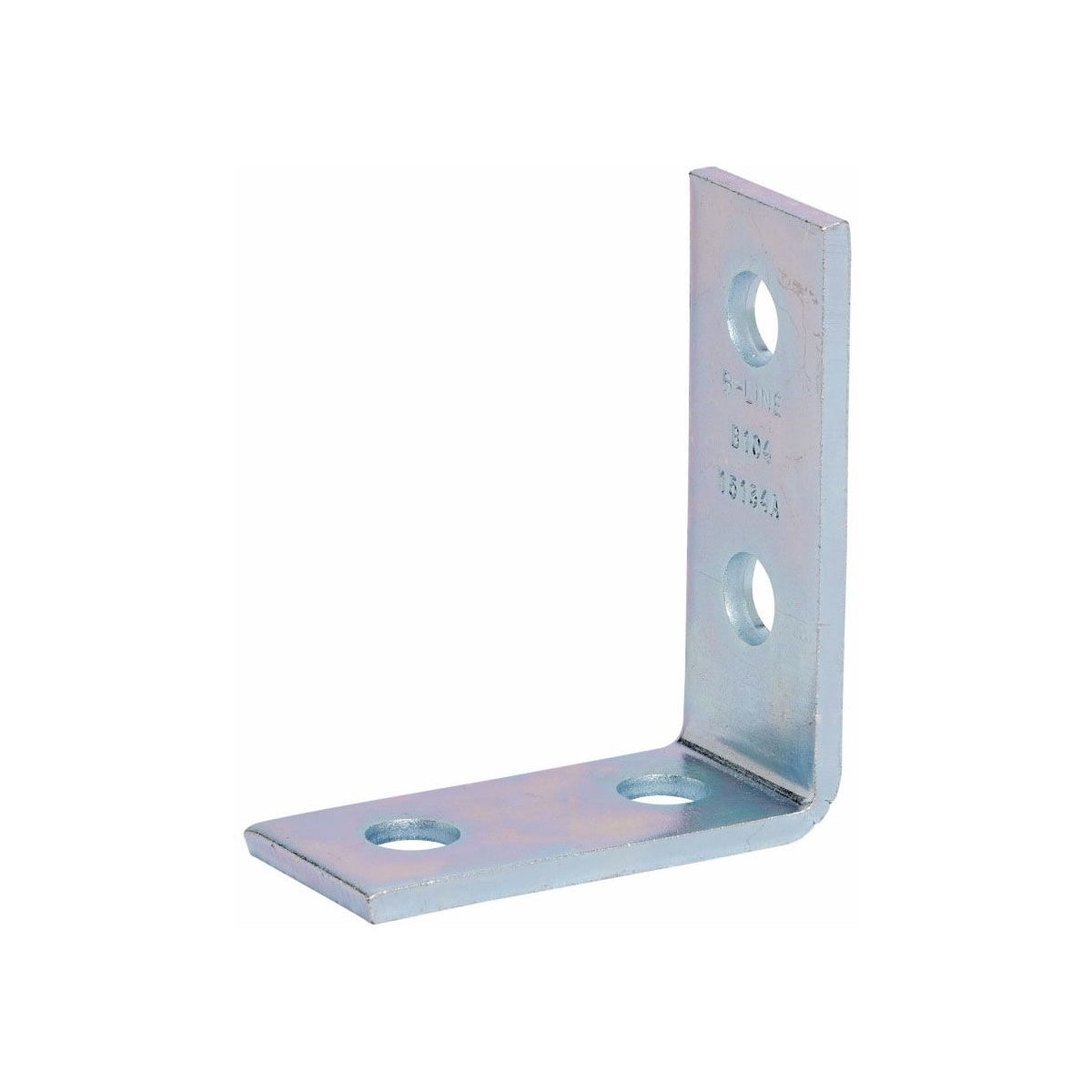

The B104-ZN is a four-hole corner angle fitting designed for use in strut systems, providing reliable support and connection for wire and cable management, switchgear assemblies, and other electrical distribution applications. Manufactured by B-Line, this fitting is suitable for electrical distributors and lighting solutions requiring durable, corrosion-resistant components.

Specifications

• Material: Carbon Steel
• Finish: Zinc Electroplated
• Weight: 0.7360 lbs
• Manufacturer Part #: B104-ZN
• Hole Size: 9/16" (14.3 mm) diameter
• Thickness: 7/32" (5.5 mm)
• Width: 1 5/8" (41.3 mm)
• Hole Spacing: 1 7/8" (47.6 mm) on center, 13/16" (20.6 mm) from end

Features

• Constructed from hot rolled, pickled, and oiled carbon steel plate with ASTM A1018 33,000 PSI minimum yield strength
• Electroplated zinc finish for corrosion resistance
• Compatible with 1/2"-13 hex head cap screws and channel nuts for secure fastening
• Designed for use with 12 gauge (2.6 mm) strut channels
• Pre-assembled fitting option available (not included)
• Compatible with 4Dimension™ Strut System
