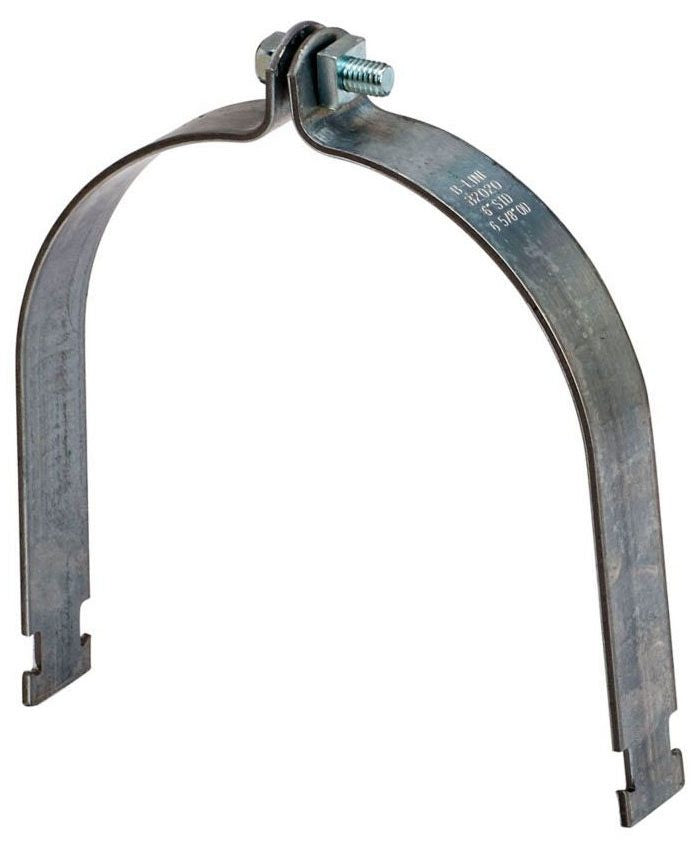

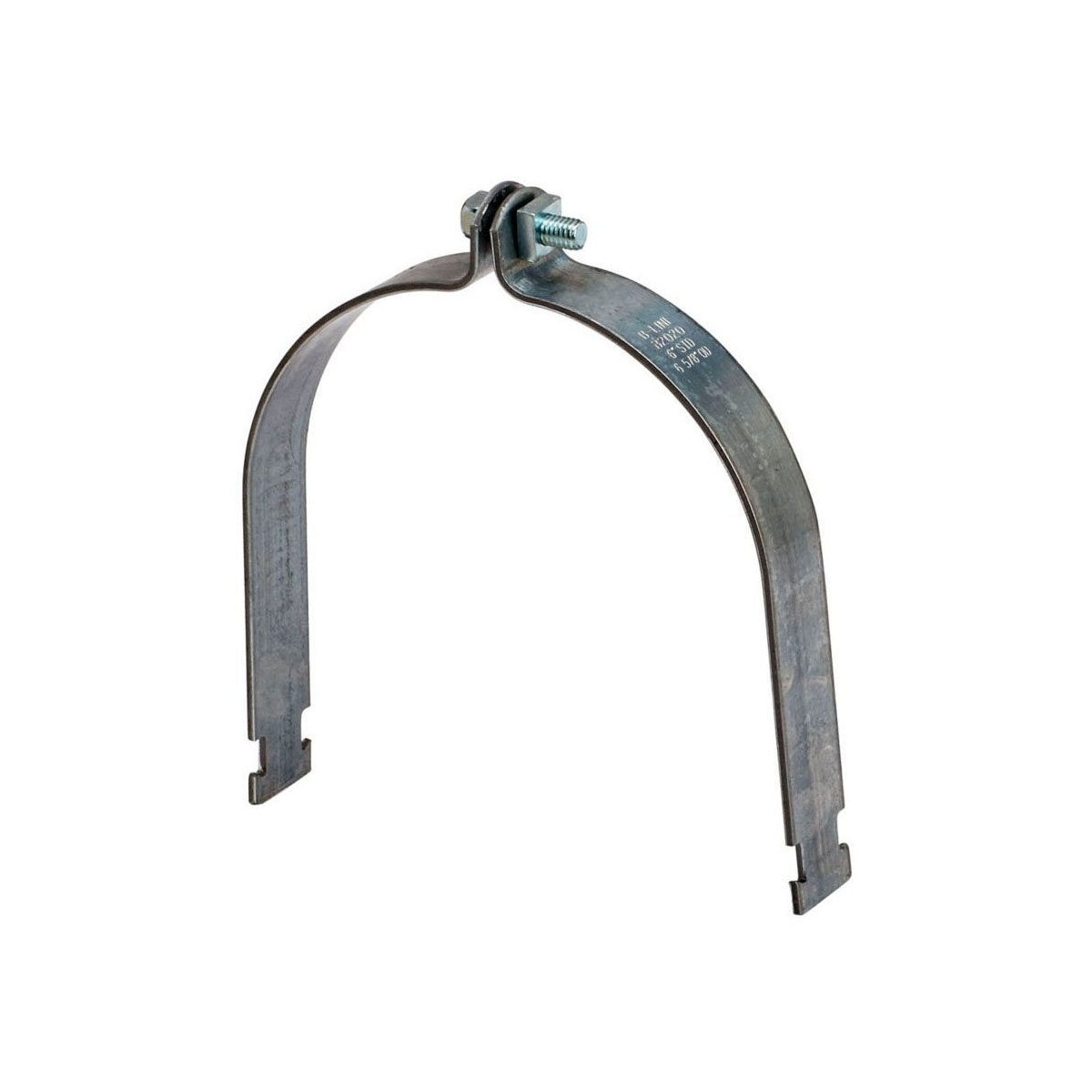

B-LINE B2017ZN 4IN Pipe/Conduit Clamp - Electrical Pipe Clamp

The B-LINE B2017ZN 4IN Pipe/Conduit Clamp by Cooper B-Line is designed for secure fastening of 4-inch rigid conduit or pipe in electrical installations. This zinc-plated clamp provides reliable support in wire and cable management systems and is suitable for use by electrical distributors and switchgear suppliers requiring durable pipe clamps for conduit routing and support.

Specifications

• Manufacturer: Cooper B-Line
• Manufacturer Part #: B2017ZN
• Clamp Size: 4 inches (100 mm) nominal conduit size
• Material Gauge: 12 Ga. (2.6 mm) ASTM A653, 33,000 PSI minimum yield
• Finish: Electro-Plated Zinc (ZN)
• Design Load 1: 1000 lbs (4.45 kN)
• Design Load 2: 200 lbs (0.89 kN)
• Design Load 3: 150 lbs (0.67 kN)
• Weight: 0.5950 lbs (approx. 0.27 kg)
• UPC: 781011611033

Features

• Includes combination recess hex head machine screw and square nut for secure mounting
• Designed for rigid conduit support with a safety factor of 5
• Zinc plating provides corrosion resistance suitable for electrical environments
• Compatible with B-Line strut channel systems for versatile installation
• Meets ASTM A653 standards for material strength and durability

Downloads & Links

• Spec Sheet
