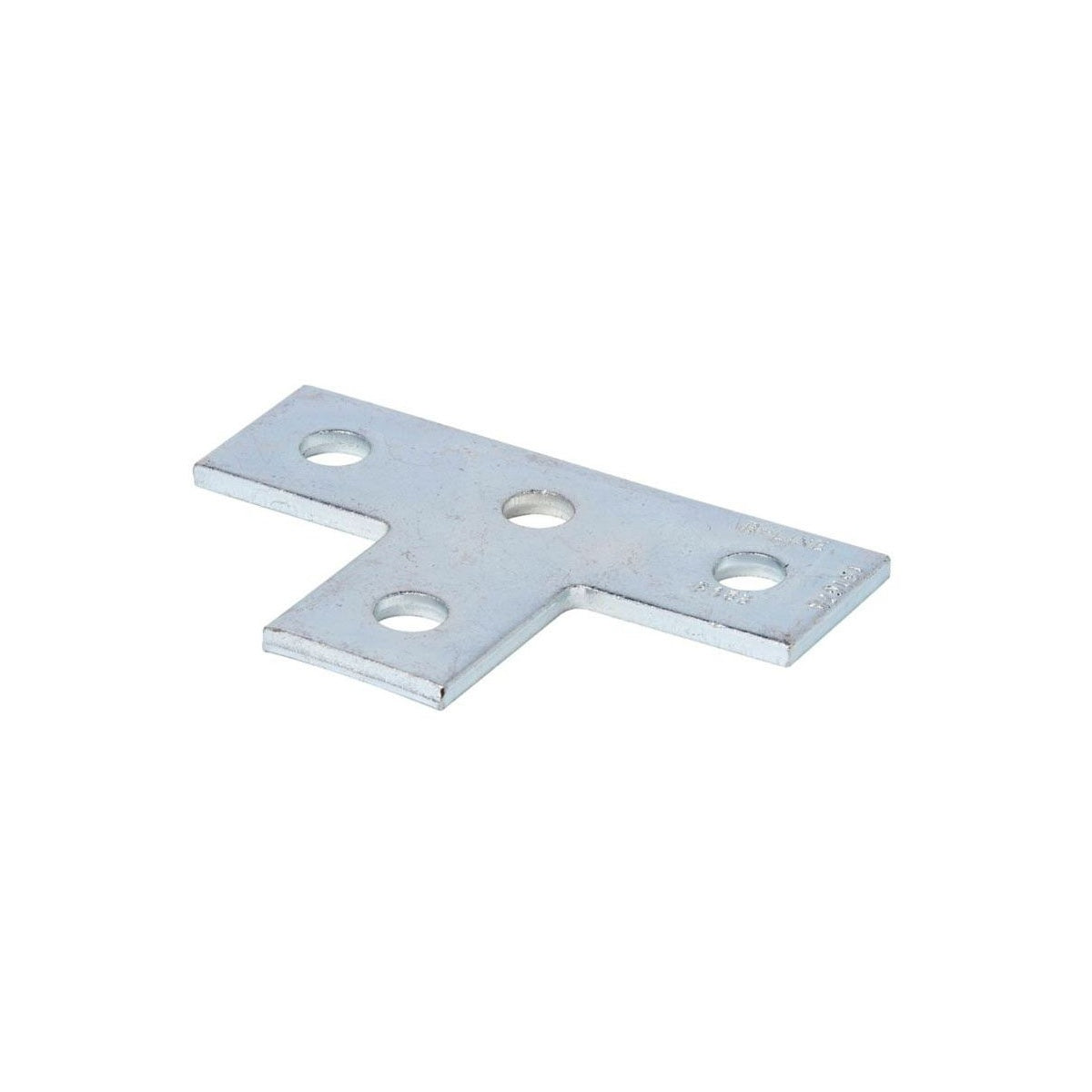

B-LINE B133ZN Four Hole Tee Plate Zinc Plated

The B-LINE B133ZN Four Hole Tee Plate is a flat plate fitting designed for use in strut systems, suitable for electrical distributors, lighting solutions, wire and cable supports, and switchgear supplier applications. It provides a reliable method to join strut channels at tee intersections, ensuring structural integrity and ease of assembly.

Specifications

• Manufacturer: Cooper B-Line
• Manufacturer Part #: B133ZN
• Product Weight: 0.68 lbs
• Standard Finishes: Electro-Plated Zinc (ZN), DURA GREEN (GRN), Hot-Dipped Galvanized (HDG), Stainless Steel Type 304 (SS4), Aluminum (AL)
• Dimensions: Approximately 3 1/2" width by 5 3/8" height (88.9 mm by 136.5 mm)
• Hole Size: 9/16" (14.3 mm) diameter
• Thickness: 7/32" (5.5 mm)
• Hole Spacing: 1 7/8" (47.6 mm) on center, 13/16" (20.6 mm) from end

Features

• Constructed from hot rolled, pickled and oiled steel plate per ASTM A1018 with 33,000 PSI minimum yield strength
• Electro-plated zinc finish for corrosion resistance
• Designed for use with 1/2"-13 hex head cap screws and channel nuts for rated load connections
• Compatible with B-Line strut channel systems to complete structural assemblies
