Description

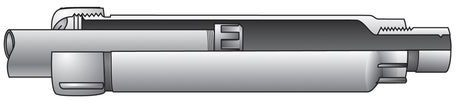

AX-75, IMC/Rigid Conduit Expansion Fitting for Electrical Conduit Systems
The AX-75 expansion fitting by O-Z Gedney is designed for use with rigid metal conduit (RMC) and intermediate metal conduit (IMC) to accommodate expansion and contraction in conduit runs. This fitting allows for up to 4 inches of conduit movement (2 inches in either direction), ensuring system integrity in environments subject to thermal expansion. It is suitable for electrical distributors and lighting solutions providers requiring reliable conduit components for wire and cable protection and routing.
Specifications
- Application: For Rigid Conduit And IMC
- Material: Malleable or Ductile Iron
- Length: 6-3/8 IN
- Diameter: 2-1/4 inches
- Outside Diameter: 2-1/4 IN
- Product Weight: 1.8800 lbs
- Flexibility: RMC And IMC
- Manufacturer: O-Z Gedney
- Manufacturer Part #: AX-75
Features
- Allows for expansion and contraction in rigid metal conduit runs
- Compatible with IMC, requiring a minimum 15-foot rigid conduit length entering the fitting
- Maximum conduit movement of 4 inches (2 inches in either direction)
- Constructed of durable malleable or ductile iron
- Suitable for wet or dry locations when used with appropriate bonding jumpers
