AX-300, IMC/Rigid Conduit Expansion Fitting
SKU: #313637
Part: #AX-300
UPC: 783126023213
AX-300, IMC/Rigid Conduit Expansion Fitting
SKU: #313637
Part: #AX-300
UPC: 783126023213
Total Price: $679.70 per each Sold in increments of 1 each
Next day delivery
Description

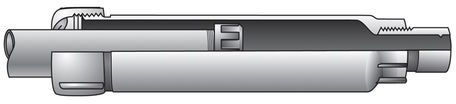

AX-300, IMC/Rigid Conduit Expansion Fitting - Electrical Conduit Expansion Fitting
The AX-300 expansion fitting by O-Z Gedney is designed for use with rigid metal conduit (RMC) and intermediate metal conduit (IMC) to accommodate expansion and contraction in conduit runs. This fitting is suitable for electrical distributors and switchgear suppliers requiring reliable conduit movement solutions, allowing up to 4 inches of conduit movement (2 inches in either direction). It is recommended to use a minimum of 15 feet of rigid conduit entering the fitting when applied to IMC due to its slightly smaller outside diameter. The product is constructed from malleable or ductile iron, ensuring durability and compatibility within lighting solutions and wire and cable installations.
Specifications
- Name: AX-300, IMC/Rigid Conduit Expansion Fitting
- Application: For Rigid Conduit And IMC
- Material: Malleable Or Ductile Iron
- Length: 8-1/8 IN
- Diameter: 5-3/8 inches
- Outside Diameter: 5-3/8 IN
- Product Weight: 9.8600 lbs
- Flexibility: RMC And IMC
- Manufacturer: O-Z Gedney
- Manufacturer Part #: AX-300
Features
- Allows for expansion and contraction in rigid metal conduit runs
- Supports up to 4 inches of conduit movement (2 inches in either direction)
- Suitable for IMC applications with rigid conduit entry length requirement
- Constructed from durable malleable or ductile iron
- Compatible with electrical distributor requirements for conduit fittings
