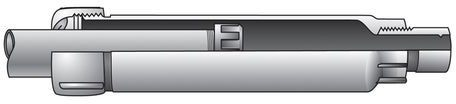

AX-100, IMC/Rigid Conduit Expansion Fitting
SKU: #313611
Part: #AX-100
UPC: 783126023060
AX-100, IMC/Rigid Conduit Expansion Fitting
SKU: #313611
Part: #AX-100
UPC: 783126023060
Next day delivery
Description
AX-100, IMC/Rigid Conduit Expansion Fitting for Electrical Conduit Systems
The AX-100 expansion fitting by O-Z Gedney is designed for use with rigid metal conduit (RMC) and intermediate metal conduit (IMC) to allow for expansion and contraction within conduit runs. It is suitable for electrical distributors and switchgear suppliers requiring reliable conduit movement accommodation in lighting solutions and wire and cable installations. The fitting supports a maximum conduit movement of 4 inches (2 inches in either direction) and is intended for applications involving IMC, where a minimum 15-foot length of rigid conduit should enter the fitting due to the smaller outside diameter of IMC.
Specifications
- Application: For Rigid Conduit And IMC
- Material: Malleable Or Ductile Iron
- Length: 6-5/8 IN
- Diameter: 2-5/8 inches
- Outside Diameter: 2-5/8 IN
- Flexibility: RMC And IMC
- Product Weight: 2.65 lbs
- Manufacturer: O-Z Gedney
- Manufacturer Part #: AX-100
- UPC: 783126023060
Features
- Allows for expansion and contraction in rigid metal conduit runs
- Accommodates up to 4 inches of conduit movement (2 inches in either direction)
- Suitable for IMC applications with recommended 15-foot rigid conduit length entering fitting
- Constructed from durable malleable or ductile iron
- Weatherproof and concretetight design
- Includes insulating bushing and bonding jumpers
- Meets UL Standard ANSI/UL 514B and CSA Standard C22.2 No. 18.3 certifications
