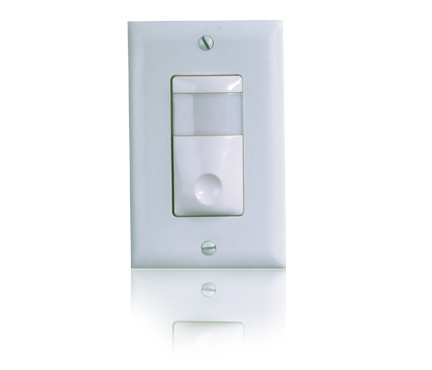

Automatic Control Switch, 120/277V, White – Lighting Control Solutions

The Wattstopper InteliSwitch® AS-100 Automatic Control Switch functions as both a manual and automatic control device for lighting loads. It allows users to manually switch loads on or off, while also receiving automatic on/off signals from lighting control panels or other lighting control systems. Designed for easy retrofit, the AS-100 simplifies lighting control without requiring additional signal wiring, making it a cost-effective solution for electrical distributors and switchgear suppliers focused on lighting solutions and wire and cable integration.

Specifications

• Voltage: 120 or 277 VAC, 50/60 Hz
• Load Requirements: 0-1300W ballast & incandescent @120VAC; 0-3000W ballast @277VAC
• Dimensions: 4.8 in (H) x 3.0 in (W) x 2.48 in (D)
• Product Weight: 0.4 lbs
• Power Interruption Signal Resolution: ± 0.1 seconds
• UL and CUL Listed
• Country of Origin: China
• Manufacturer Part Number: AS-100-W

Features

• Operates as both manual and automatic control switch
• No additional signal wiring required; uses power interruption signaling
• Selectable audible beep warning during five-minute delay-off period
• Five-minute delay-off with user override to cancel impending shutoff
• Self-adjusting zero crossing switching for reliable operation with high inrush loads
• Compatible with all electronic ballasts and motor loads
• Supports multiway switching (3-way, 4-way, and multiway applications)
• Microcontroller-enhanced reliability
• Command off without delay-off time
• Simple retrofit installation; no neutral wire required
• Pushbutton override allows manual control during automatic shutoff events
• BAA/TAA-compliant models available
