Automatic Circuit Identifier w/Digital Receiver & GFCI Receptacle – Circuit Breaker Finder

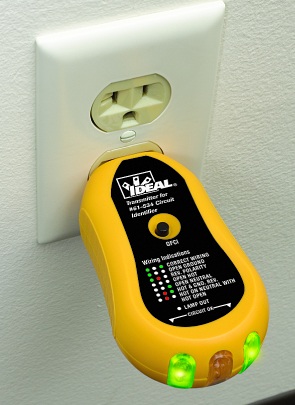

The IDEAL Industries Automatic Circuit Identifier with Digital Receiver and 120V GFCI Receptacle Tester is designed to quickly and accurately locate AC circuits and verify wiring configurations. This tool is essential for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable verification of branch circuits in residential and commercial buildings. It helps ensure safety by detecting proper wiring, testing GFCIs, and identifying circuit breakers with minimal guesswork.

Specifications

• Operating Range: 100-120VAC
• Operating Frequency: 47-63Hz
• Maximum Load: 18A (4ms) at 120VAC
• Duty Cycle: Max 4ms every 16.6ms (continuous), 0.24%
• Weight (excluding battery): Transmitter approx 50g, Receiver approx 85g
• Power Supply: 9VDC battery
• Operating Temperature: 0 to 50ºC

Features

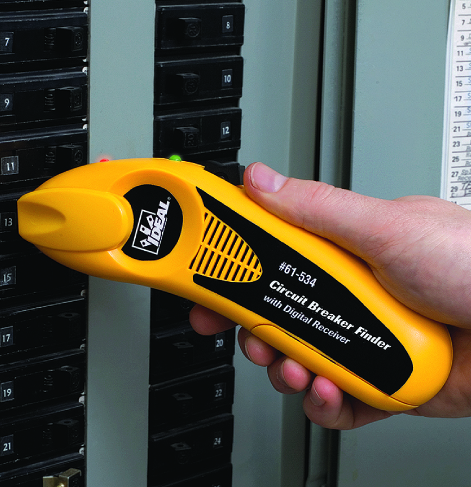

• Automatically and quickly indicates the correct circuit breaker
• Non-contact voltage sensor detecting 80-300VAC
• Transmitter operates on 120VAC Hot to Neutral circuits
• Tests GFCIs wired to 3 conductors with continuous ground path to panel
• Verifies wiring configuration of receptacles
• Low battery indicator with automatic receiver shutdown after 10 minutes idle
• Self-test function to ensure proper operation at startup
• Receiver beeps and LEDs indicate signal strength and breaker identification
