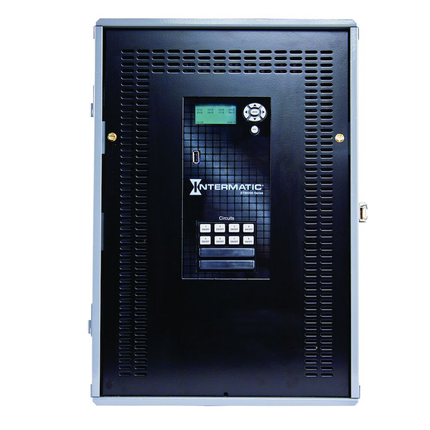

Features

• Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
• Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
• Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
• 30 A rated contacts
• 100-hour supercapacitor eliminates the need for batteries
• USB connection for uploading, downloading and transferring programs
• Easy-to-follow on-screen menus for programming to-the-minute accuracy
• Non-volatile memory protects programming indefinitely
• Firmware can be upgraded in-field via USB or Ethernet
• Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - Lead

Specifications

• Country of Origin: Mexico
• Product Height: 17.9 in; 454 mm
• Product Depth: 5.4 in; 138 mm
• Operating Temperature Min: -40°F; -40°C
• Operating Temperature Max: 104°F; 40°C
• Warranty Period: 3-Year limited
• Minimum On Off Time: 1 Sec
• Minimum Pulse Time: 1 sec
• Maximum Pulse Time: 23 hours, 59 minutes
• Maximum On Off Time: 365 days
• Maximum On Off Operations: 2000
• Tungsten NO Load Ratings: 5 A, 12 VAC, 50 Hz; 5 A, 24 VAC, 50 Hz; 5 A, 50 VAC, 50 Hz; 5 A, 110 VAC, 50 Hz; 5 A, 115 VAC, 50 Hz; 5 A, 120 VAC, 50 Hz; 5 A, 12 VAC, 60 Hz; 5 A, 24 VAC, 60 Hz; 5 A, 50 VAC, 60 Hz; 5 A, 110 VAC, 60 Hz; 5 A, 115 VAC, 60 Hz; 5 A, 120 VAC, 60 Hz
• Operation Features: Astronomic; Holiday
• Operation Mode: 365 day
• Voltage Selection Type: Auto Voltage
• General Purpose NC Load Ratings: 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
• Data Transfer Options: Ethernet Optional/USB
• Electronic Ballast NO Load Ratings: 8 A, 120 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz; 8 A, 208 VAC, 50 Hz; 8 A, 208 VAC, 60 Hz; 8 A, 240 VAC, 50 Hz; 8 A, 240 VAC, 60 Hz; 8 A, 277 VAC, 50 Hz; 8 A, 277 VAC, 60 Hz
• Daylight Saving Adjustment: Automatic
• General Purpose NO Load Ratings: 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
• Applications: Indoor Lighting Control; Outdoor Lighting Control; Timing/Scheduling ON/OFF; Machinery & Pump Controls
• Backup Restoration Time: 30 Minutes
• Backup Type: Supercapacitor
• Wiring Option: Terminals
• Input Voltage Ranges: 120-277 VAC, 50/60 Hz
• Number Of Circuits: 8
• Enclosure Type: Outdoor type 3R metal
• Backup Protection Time: 100 Hour
• Switch Type: 8xSPDT; 4xDPDT
• Power Consumption Max W: 50 W
• PDF Standards And Certifications: cULus; cCSAus; Title 20
• Electronic Series: ET90000 Series

Certifications

• UL Certification: cULus
• CSA Certification: cCSAus
• Other Certifications: Title 20

Load Ratings

• Magnetic Ballast NO Load Ratings: 20 A, 120 VAC, 50 Hz; 20 A, 208 VAC, 50 Hz; 20 A, 240 VAC, 50 Hz; 20 A, 277 VAC, 50 Hz; 20 A, 120 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz
• Magnetic Ballast NC Load Ratings: 3 A, 120 VAC, 50 Hz; 3 A, 208 VAC, 50 Hz; 3 A, 240 VAC, 50 Hz; 3 A, 277 VAC, 50 Hz; 3 A, 120 VAC, 60 Hz; 3 A, 208 VAC, 60 Hz; 3 A, 240 VAC, 60 Hz; 3 A, 277 VAC, 60 Hz
• Resistive NC Load Ratings: 10 A, 28 VDC; 10 A, 12 VAC, 50 Hz; 10 A, 18 VAC, 50 Hz; 10 A, 24 VAC, 50 Hz; 10 A, 120 VAC, 50 Hz; 10 A, 208 VAC, 50 Hz; 10 A, 240 VAC, 50 Hz; 10 A, 12 VAC, 60 Hz; 10 A, 18 VAC, 60 Hz; 10 A, 24 VAC, 60 Hz; 10 A, 120 VAC, 60 Hz; 10 A, 208 VAC, 60 Hz; 10 A, 240 VAC, 60 Hz
• Resistive NO Load Ratings: 20 A @ 28 VDC; 30 A, 12 VAC, 50 Hz; 30 A, 18 VAC, 50 Hz; 30 A, 24 VAC, 50 Hz; 30 A, 120 VAC, 50 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 12 VAC, 60 Hz; 30 A, 18 VAC, 60 Hz; 30 A, 24 VAC, 60 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz
• Pilot Duty NO Load Ratings: 470 VA, 120 VAC, 50 Hz; 470 VA, 208 VAC, 50 Hz; 470 VA, 240 VAC, 50 Hz; 470 VA, 120 VAC, 60 Hz; 470 VA, 208 VAC, 60 Hz; 470 VA, 240 VAC, 60 Hz
• Pilot Duty NC Load Ratings: 275 VA, 120 VAC, 50 Hz; 275 VA, 208 VAC, 50 Hz; 275 VA, 240 VAC, 50 Hz; 275 VA, 120 VAC, 60 Hz; 275 VA, 208 VAC, 60 Hz; 275 VA, 240 VAC, 60 Hz
• Motor Load Ratings NC Ranges: 1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz
• Motor Load Ratings NO Ranges: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
• Magnetic Ballast Load Ratings NO Ranges: 20 A, 120-277 VAC, 50/60 Hz
• Magnetic Ballast Load Ratings NC Ranges: 3 A, 120-277 VAC, 50/60 Hz
• Resistive Load Ratings NO Ranges: 20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz
• Resistive Load Ratings NC Ranges: 10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz
• Pilot Duty Load Ratings NO Ranges: 470 VA, 120-240 VAC, 50/60 Hz
• Pilot Duty Load Ratings NC Ranges: 275 VA, 120-240 VAC, 50/60 Hz
• General Purpose Load Ratings NC Ranges: 10 A, 12-240 VAC, 50/60 Hz
• General Purpose Load Ratings NO Ranges: 30 A, 12-240 VAC, 50/60 Hz
• Electronic Ballast Load Ratings NO Ranges: 8 A, 120-277 VAC, 50/60 Hz
• Tungsten Load Ratings NO Ranges: 5 A, 12-120 VAC, 50/60 Hz
