ASCH40T Portable Heater – Construction Site Heating Solutions

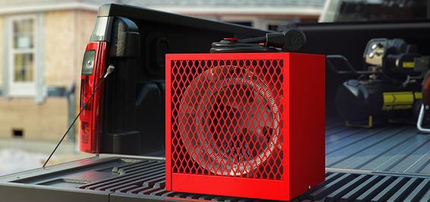

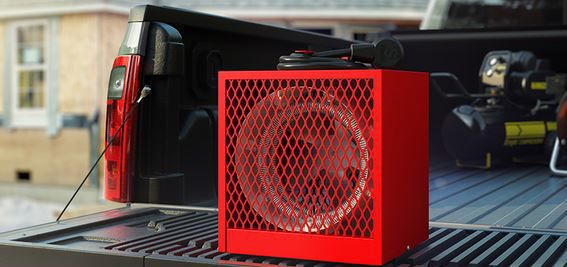

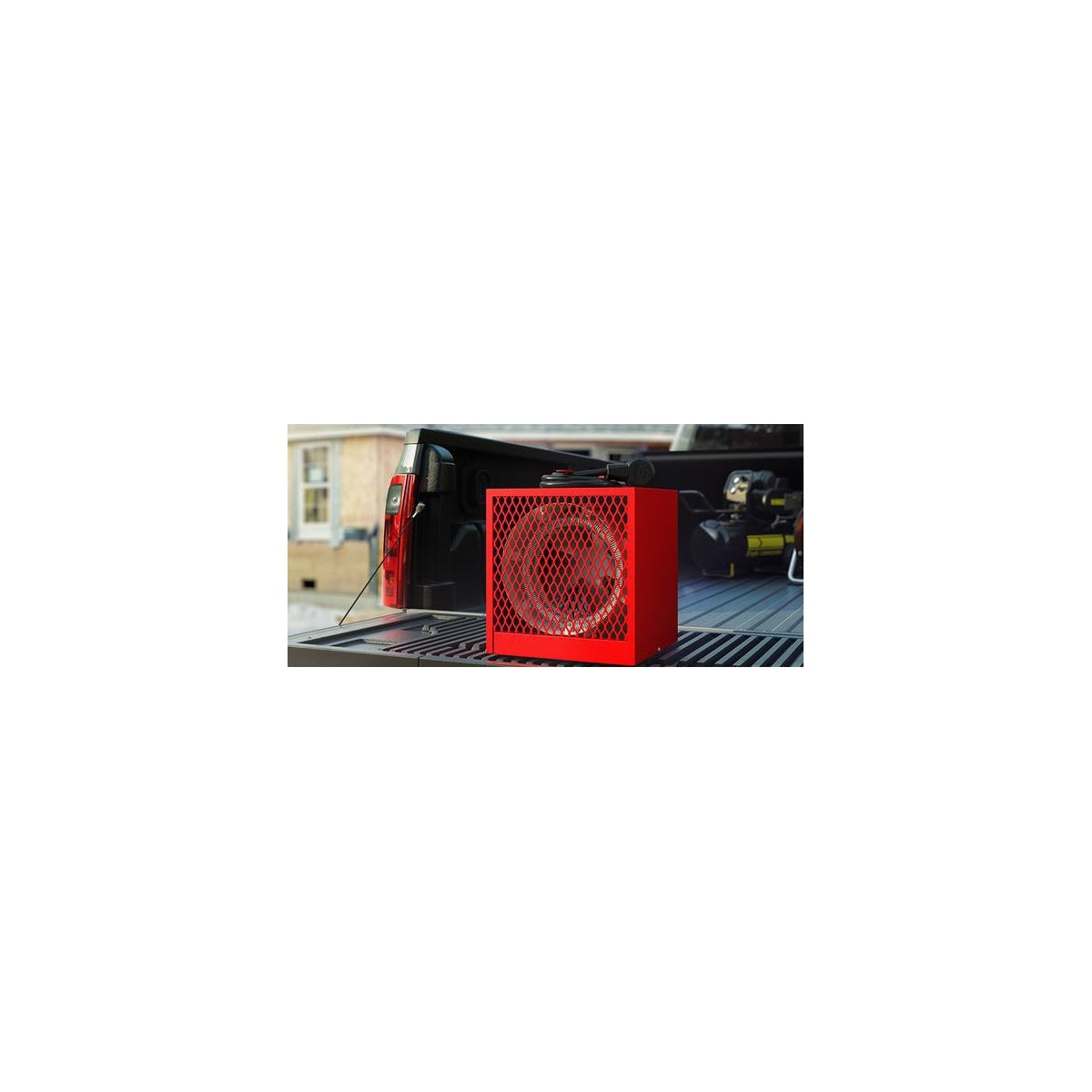

The ASCH40T Portable Heater by Stelpro is a rugged, fast-acting electric heater designed primarily for residential and construction site applications. It features a compact 20-gauge steel housing with an epoxy-polyester powdercoat finish in red, providing durability and corrosion resistance. This electric heater offers instant heat through an open nichrome coil element and includes a built-in thermostat with a control knob protector for precise temperature management. Suitable for portable or temporary installation, it can be placed on the ground or mounted using an optional bracket, making it a versatile solution for heating needs in workshops, garages, and construction sites.

Specifications

• Power: 4000/3000 Watts
• Voltage: 240/208 Volts
• Connection: 20 A 250 V Plug
• Color: Red
• Weight: 13 lbs
• Material: Steel housing with epoxy-polyester finish
• Dimensions: 11" (Length) x 11" (Width) x 14.5" (Height) [inches]
• Current: 16.67 amperes
• Frequency Rating: 60 Hz
• Energy Source: Electric
• Housing Material: Steel

Features

• Open coil element for instant heat generation

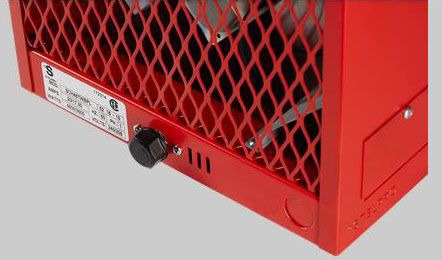

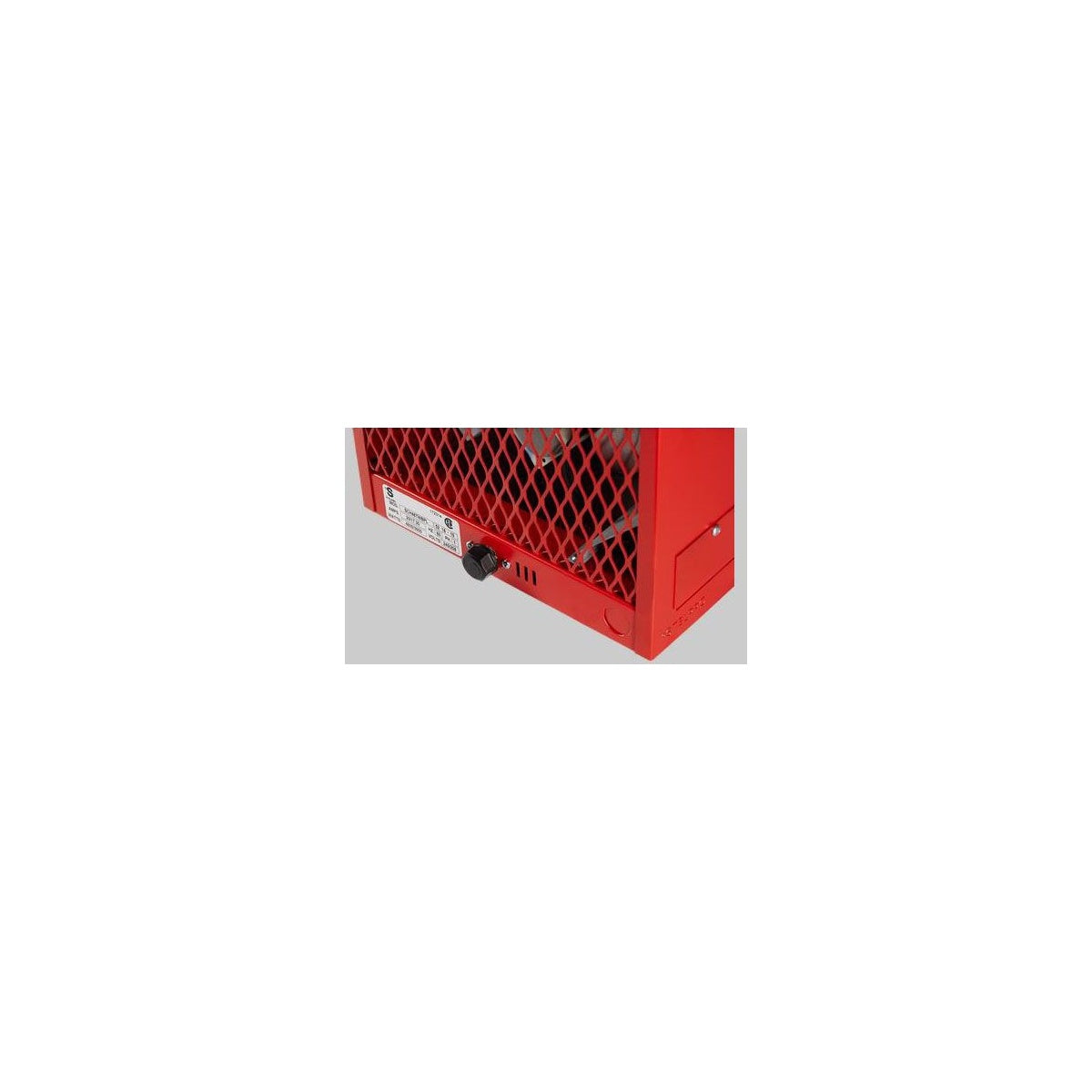

• Built-in thermostat with control knob protector for temperature regulation

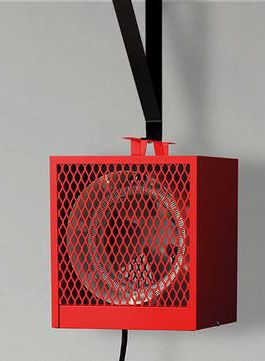

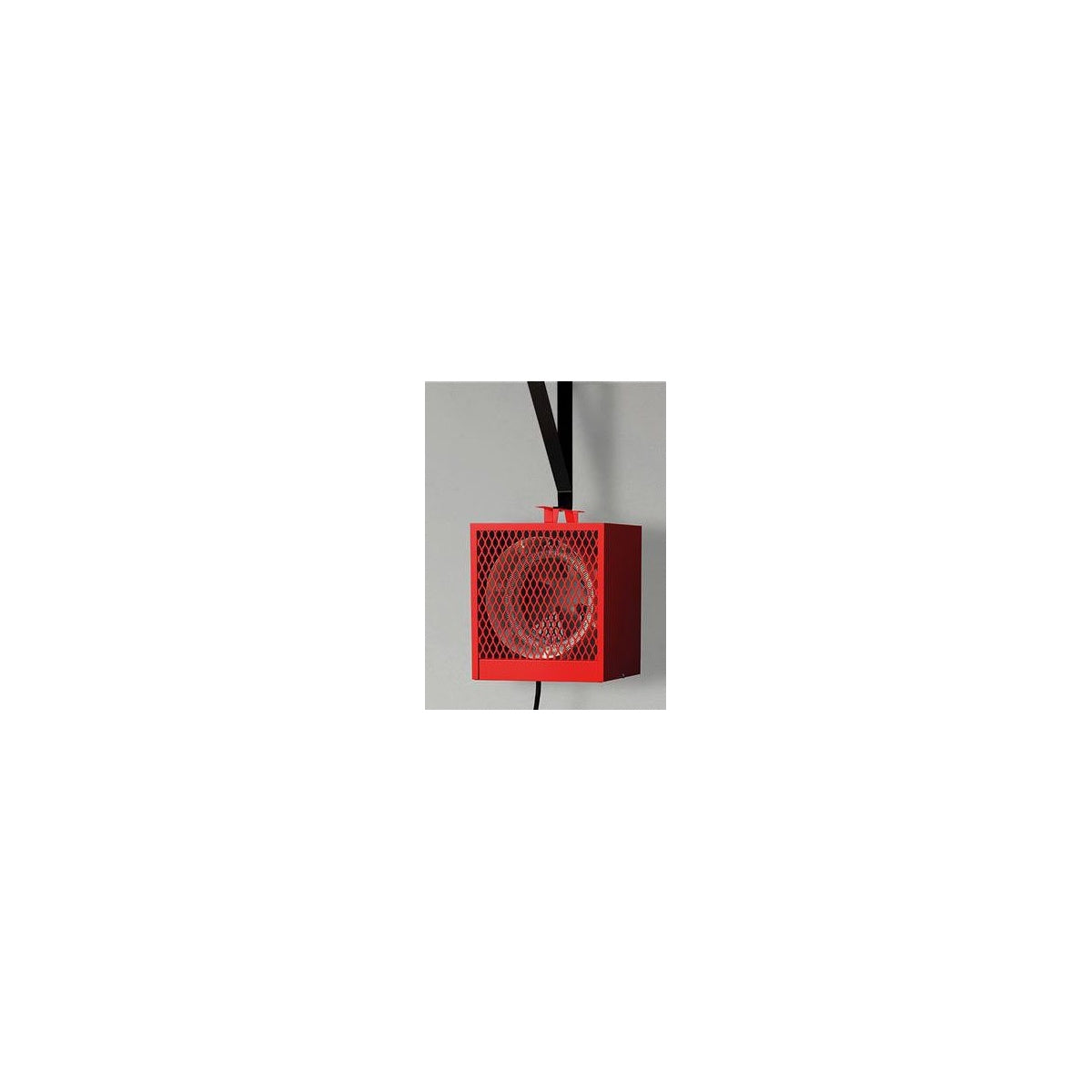

• Sturdy handle doubles as a cord rack and adapts to mounting bracket
• Thermal protection with automatic reset for safety
• Compact and portable design suitable for temporary or permanent installation
• Compatible with standard 20 A 250 V grounded receptacle

Downloads & Links

• Installation/Operator
• Catalog
• Warranty
• CAD Drawing
• Specification/Technical
