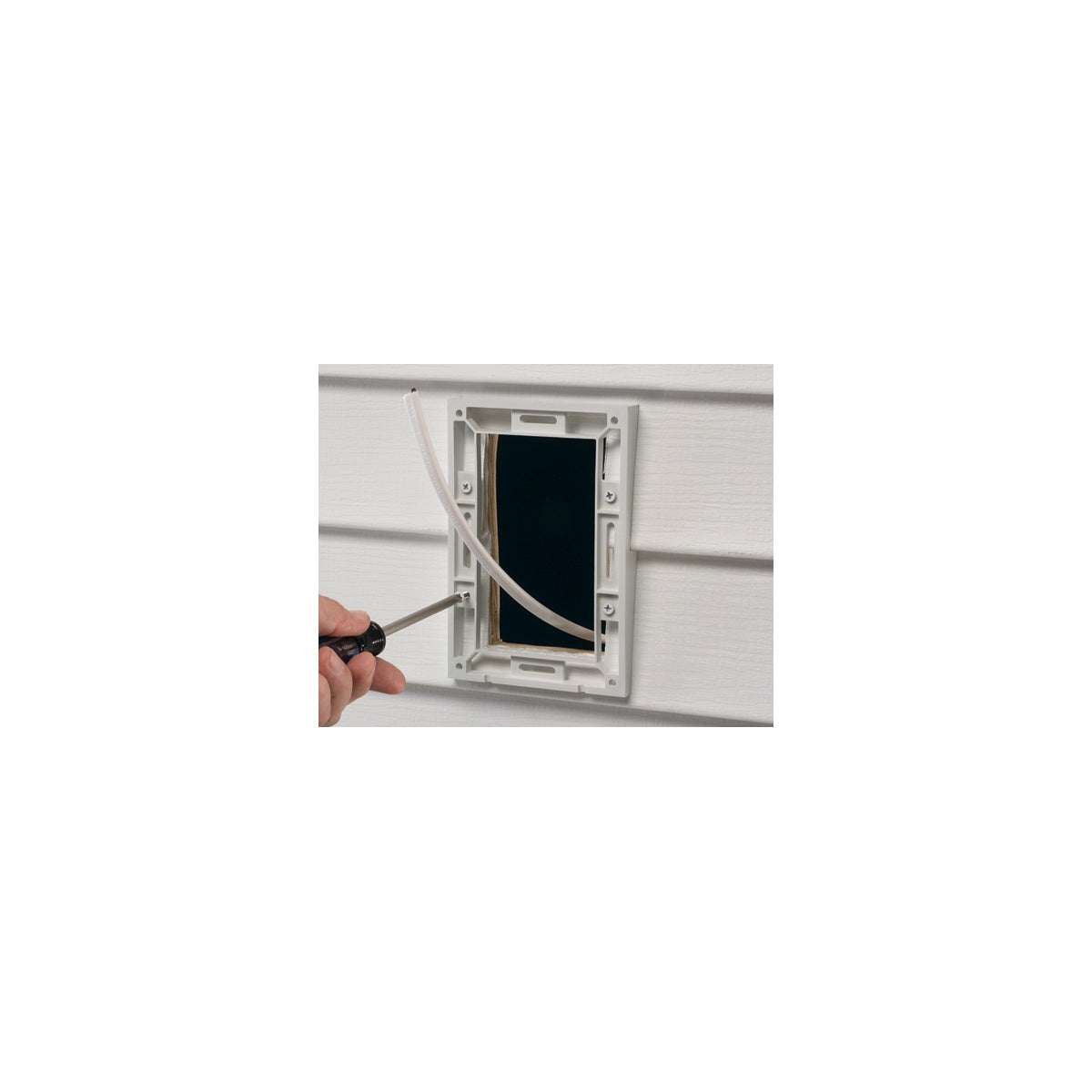

Arlington's Low Profile In Box is excellent for retrofit siding construction. The single gang box replaces an electrical box, siding block, and bubble cover assembly with one unit. Mounts vertically to siding with a lap size of 1/2" and has a white cover.
SKU: #71473
Part: #DBVR141W
UPC: 018997143761
Arlington's Low Profile In Box is excellent for retrofit siding construction. The single gang box replaces an electrical box, siding block, and bubble cover assembly with one unit. Mounts vertically to siding with a lap size of 1/2" and has a white cover.
SKU: #71473
Part: #DBVR141W
UPC: 018997143761
Description
Arlington's Low Profile In Box for Retrofit Siding Construction - Weatherproof Electrical Box
Arlington's Low Profile In Box is a recessed electrical box designed for retrofit siding construction, combining an electrical box, siding block, and bubble cover assembly into one unit. It is suitable for use by electrical distributors and switchgear suppliers providing lighting solutions and wire and cable accessories. The box mounts vertically to siding with a 1/2" lap size and features a white, UV-rated plastic cover that is textured and paintable for long outdoor life. It accepts most single gang wiring devices and uses standard indoor wall plates or a GFCI cover plate.
Specifications
- Manufacturer Part #: DBVR141W
- Color: White
- Material: UV-Rated Plastic
- Orientation: Vertical
- Siding Lap Size: 1/2"
- Product Weight: 1.5160 lbs
- UPC: 018997143761
- Dimensions: 7.186" (A) x 4.934" (B) x 5.160" (C) x 1.567" (D) x 3.539" (E)
Features
- One-piece assembly replaces electrical box, siding block, and bubble cover assembly
- Installs recessed in the wall for a low profile appearance
- Weatherproof-in-use extra-duty cover included
- Non-metallic, paintable cover and base
- No gaskets required
- Includes installed bug plugs to seal unused cord hole openings
- Accepts standard indoor wall plates or GFCI cover plates
- Complies with 2015 CEC Rule 26-702, NEMA 3R, and 2017 NEC 406.9(b) for outdoor receptacles
