ARLINGTON VB1 BLACK VAPOR BOX RING
SKU: #73968
Part: #VB1
UPC: 018997164308
ARLINGTON VB1 BLACK VAPOR BOX RING
SKU: #73968
Part: #VB1
UPC: 018997164308
Description

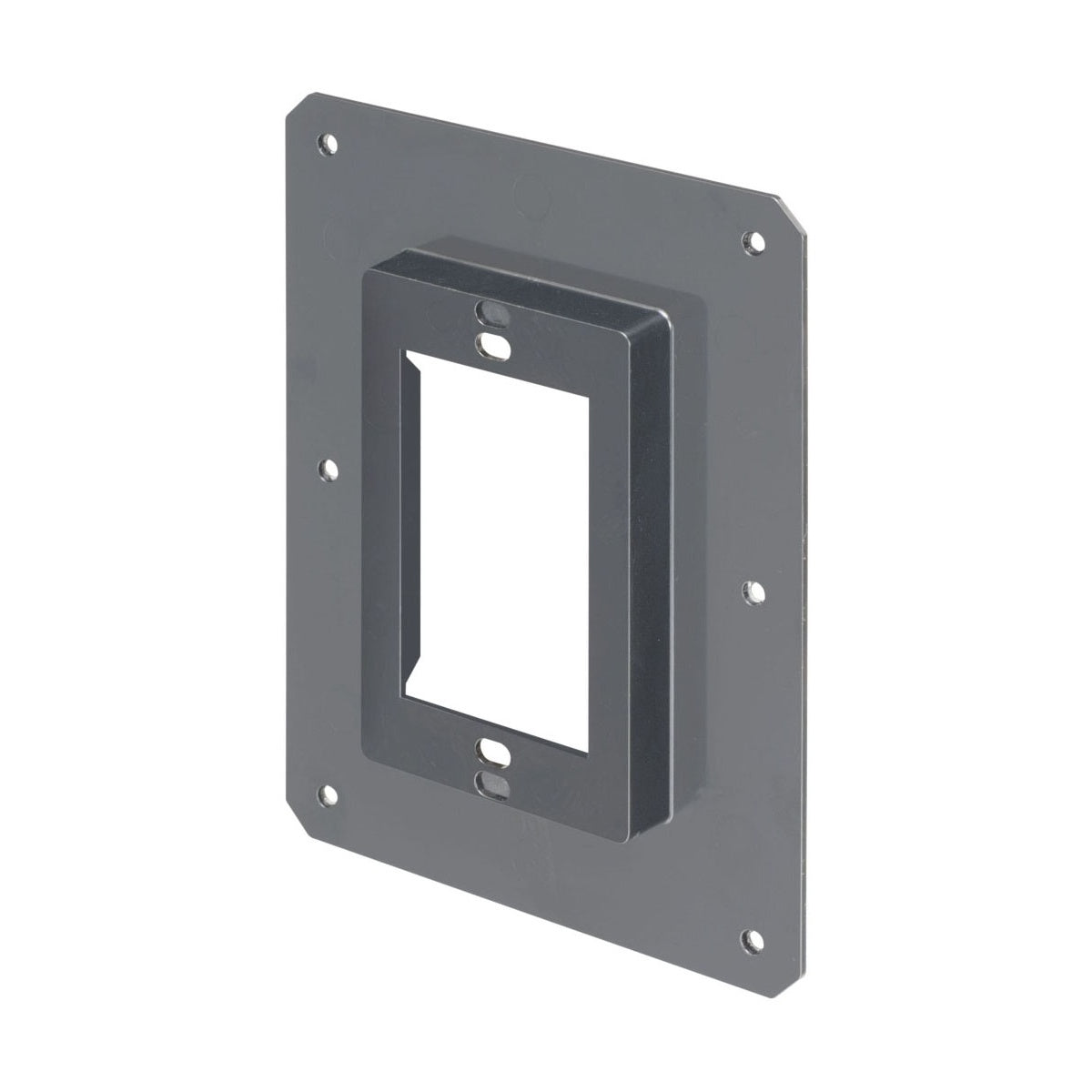

ARLINGTON VB1 BLACK VAPOR BOX RING – Vapor Barrier Cover
The Arlington VB1 Black Vapor Box Ring is a non-metallic vapor barrier cover designed to prevent air infiltration around single gang electrical boxes. Suitable for use with most plastic or steel single gang boxes, this product is ideal for new construction work. It supports energy-efficient building practices by helping to meet energy-saving codes and can be used by electrical distributors and lighting solutions providers to ensure proper sealing around wire and cable entry points.
Specifications
- Manufacturer Part #: VB1
- Color: Black
- Material: Plastic
- Dimensions (inches): A - 6.313, B - 4.059, C - 4.875, D - 0.570
- Product Weight: 0.1170 lbs
- Fits single gang plastic or steel box
- UPC: 018997164308
- UL Certification: E170558
- Fire Rating: 2 hour
Features
- Prevents air infiltration without the need for a gasket
- Easy installation using supplied #6-32 x 3/4” screws
- Compatible with single 1/2” or 5/8” drywall thickness
- Nails ship captive; plugs and NM cable supplied but not installed
- NEMA OS-4 certification when caulking is applied around NM cable during installation
- Can be temporarily held in place using device screw holes or flashed-over holes in the flange during drywall installation
- Made in USA
