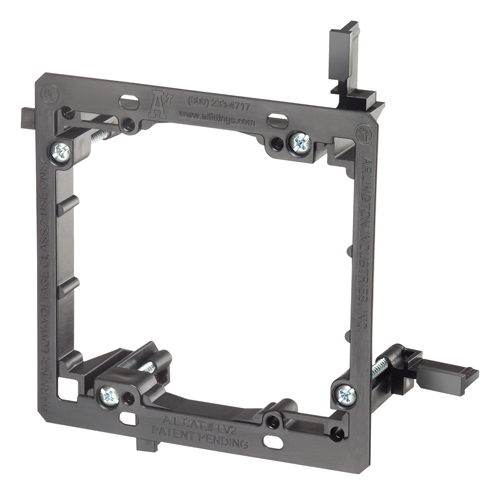

ARLINGTON LV2HD 2G Low Voltage Mounting Bracket

The ARLINGTON LV2HD 2-gang low voltage mounting bracket is designed for secure and efficient installation of low voltage Class 2 wiring in existing construction. It is suitable for communications, cable TV, and computer wiring applications, providing a reliable mounting solution for electrical distributors and lighting solutions providers. This bracket supports mounting on wallboard, paneling, or drywall with thickness adjustments from 1/4" to 1".

Specifications

• Manufacturer: Arlington Industries
• Manufacturer Part #: LV2HD
• Material: Plastic
• Color: Black
• Width: 4.185 inches
• Height: 4.250 inches
• Product Weight: 0.1020 lbs
• Country of Origin: United States
• Made in USA: Yes
• Wall Thickness Adjustment: 1/4" to 1"
• UL/CSA Listed

Features

• Non-metallic design reduces cost and improves installation ease compared to metal brackets
• Four mounting wings provide secure attachment in each corner for enhanced stability
• Bracket serves as its own template for accurate cut out
• Adjusts to fit wallboard, paneling, or drywall of varying thicknesses
• Designed for use in low voltage Class 2 wiring installations including fire alarm systems
• Compatible with existing construction installations

Downloads & Links

• Catalog Page
• Specification Sheet
• LV2HD Line Drawing
