ARLINGTON LPCG757S 3/4 IN STL CG .385/.750
SKU: #73083
Part: #LPCG757S
UPC: 018997127921
ARLINGTON LPCG757S 3/4 IN STL CG .385/.750
SKU: #73083
Part: #LPCG757S
UPC: 018997127921
Description

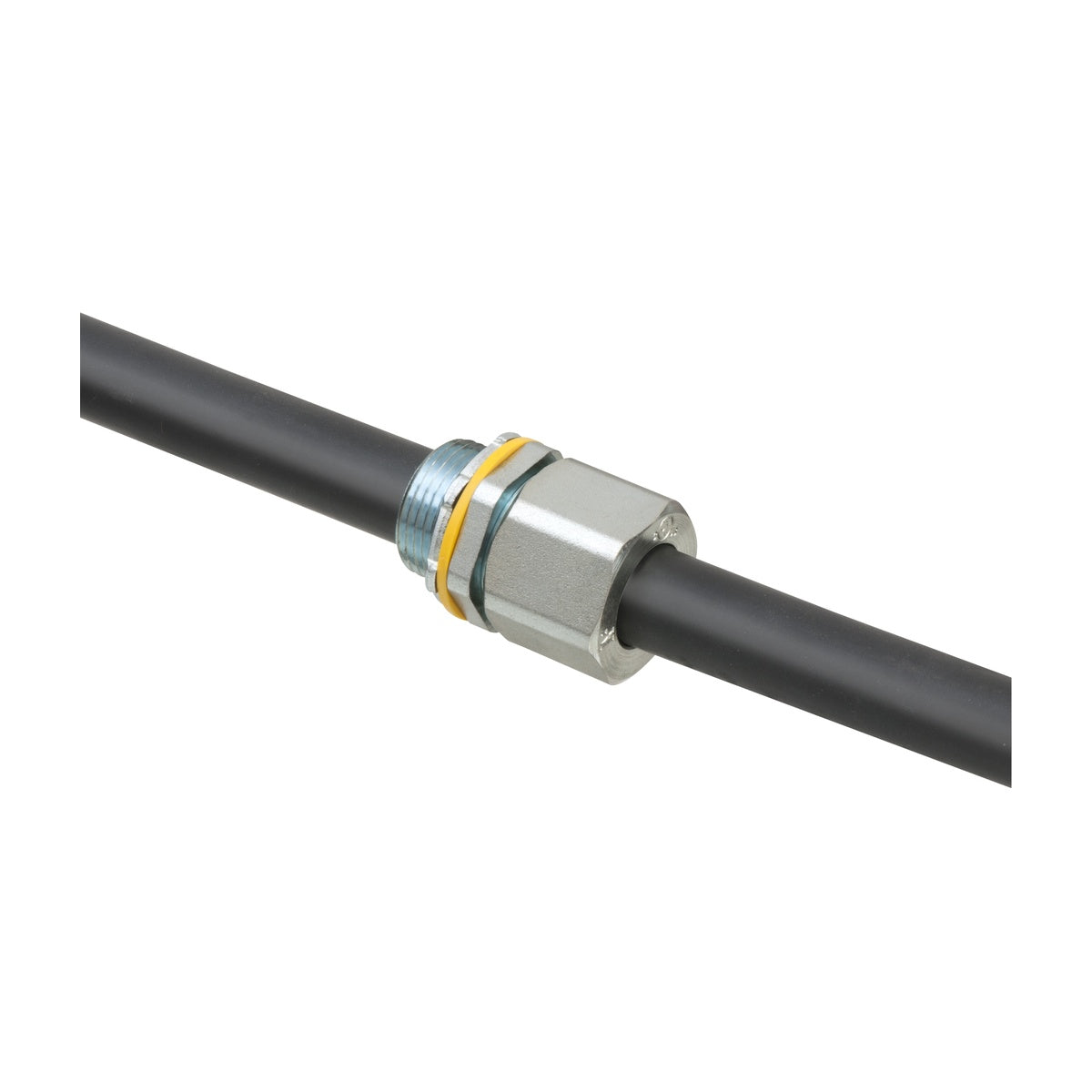

ARLINGTON LPCG757S 3/4 IN STL CG .385/.750 Zinc-Plated Steel Cord Connector
The ARLINGTON LPCG757S is a zinc-plated steel low-profile strain relief cord connector designed for secure and liquid-tight connections in electrical installations. Suitable for electrical distributors and lighting solutions, this connector accommodates a wide cord range, providing superior pullout resistance with a unique nylon grommet that grips the cable as the nut is tightened. It is ideal for wire and cable management in switchgear and other industrial applications requiring oil- and liquid-tight seals.
Specifications
- Manufacturer Part #: LPCG757S
- Material: Zinc-Plated Steel
- Color: Silver
- Trade Size: 3/4 inch
- Cord Range: Grommet A - 0.385 to 0.600 inches, Grommet B - 0.600 to 0.750 inches
- Width: 1.230 inches
- Height: 1.230 inches
- Product Weight: 0.3340 lbs
Features
- Low-profile design for tight installation spaces

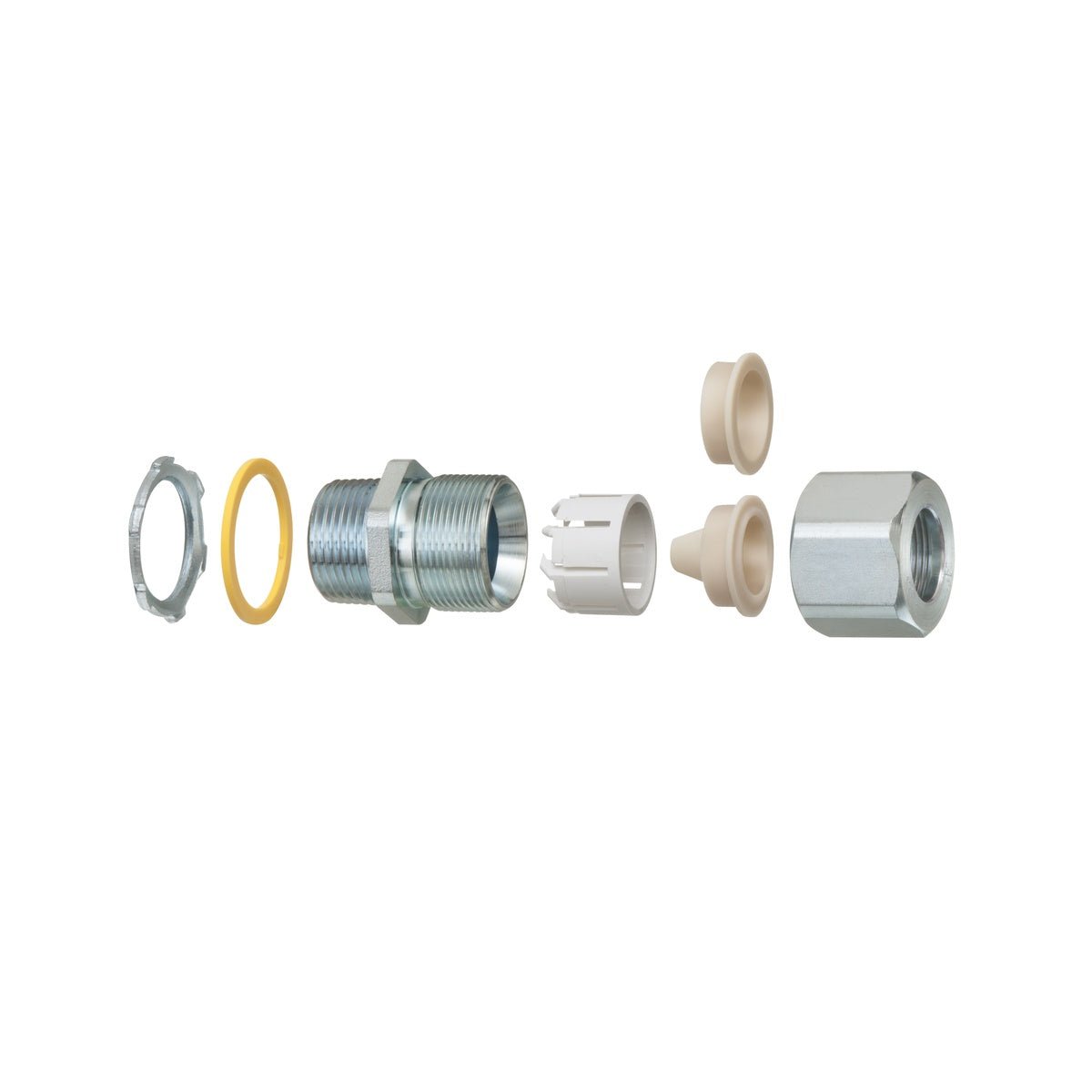

- Unique nylon grommet with gripping fingers for superior pullout resistance
- Liquid-tight and oil-tight seal achieved by tightening the nut

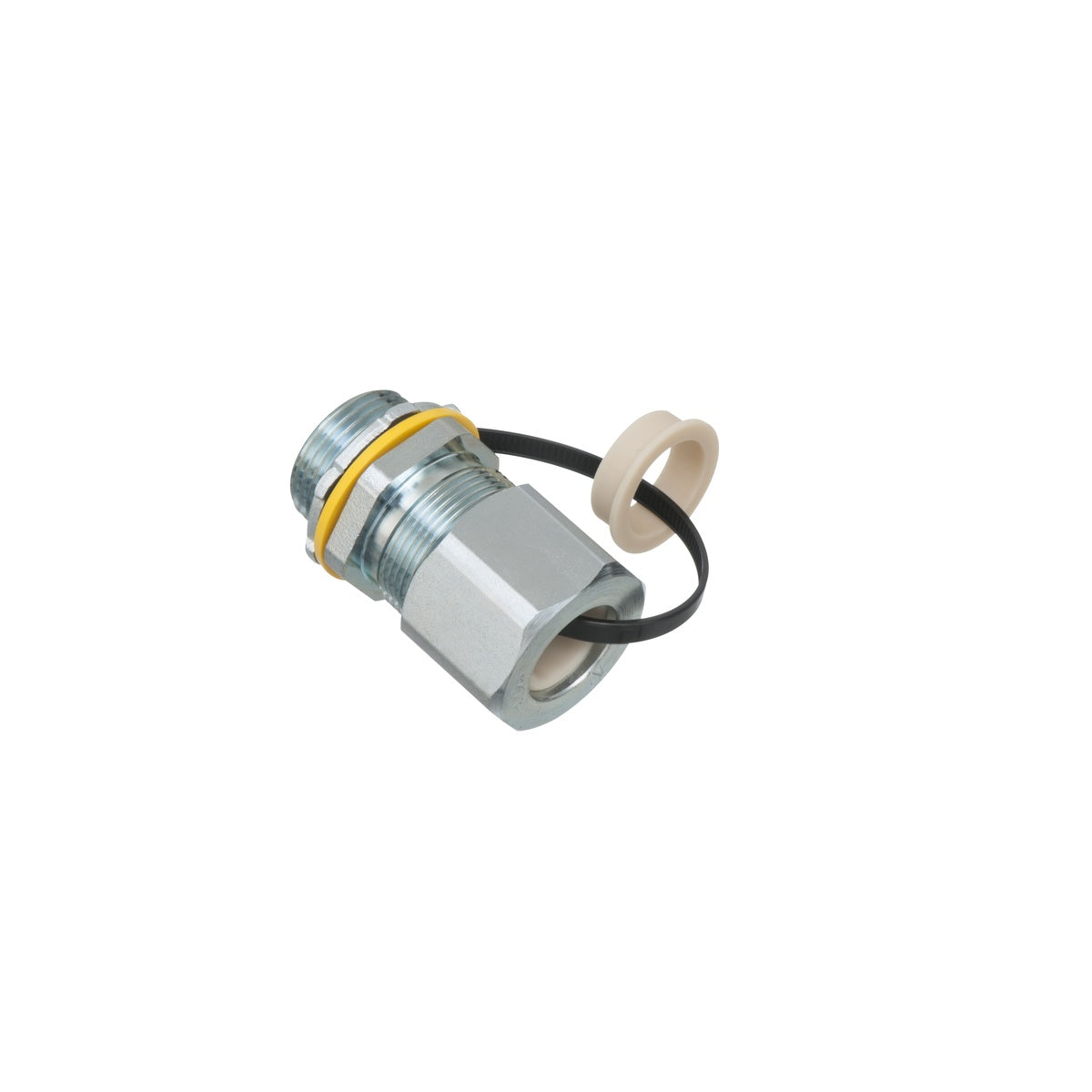

- Furnished with sealing ring to ensure a liquid-tight seal in non-threaded openings
- Wide cord range reduces inventory requirements
- UL/CSA Listed, suitable for Class I, Division I and II hazardous locations when installed per NEC
