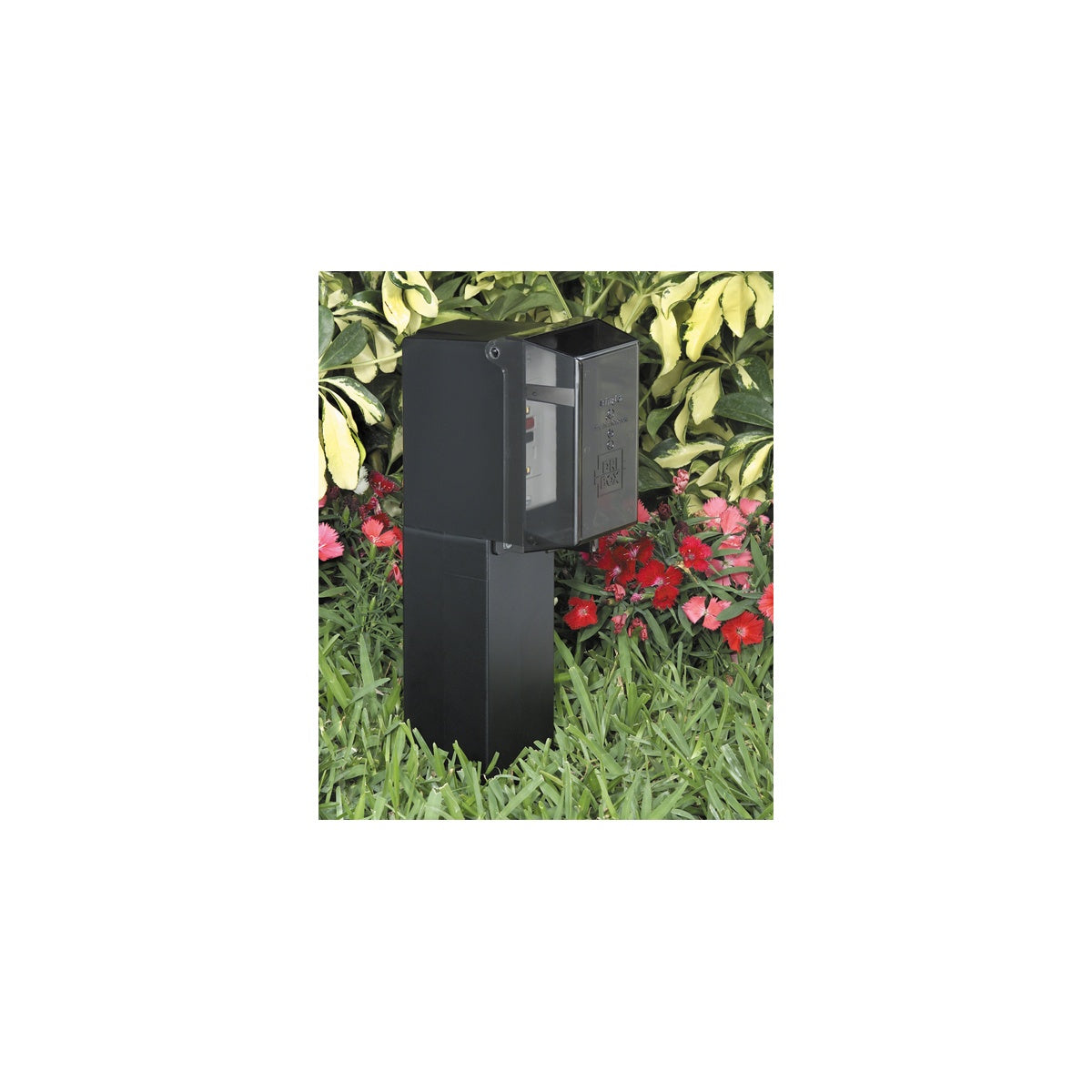

ARLINGTON GPD19BR POST W/IN USE COVER - Weatherproof Electrical Enclosure

The Arlington GPD19BR Gard-N-Post is a 19.5-inch tall, UL Listed outdoor electrical enclosure designed for use with GFCI devices. It features a clear, extra-duty weatherproof-in-use cover that provides protection for outdoor electrical outlets, meeting the 2017 NEC Section 406.9 and 2011 NEC extra-duty code requirements. This enclosure is made of heavy-duty, UV-rated plastic, ensuring long-lasting durability and resistance to outdoor elements. The post includes built-in stabilizers for rigid support and is angled at the bottom for easy access to underground wiring, making it suitable for electrical distributors, lighting solutions, and wire and cable installations requiring reliable switchgear protection outdoors.

Specifications

• Color: Bronze
• Height: 19.500 inches
• Width: 6.269 inches
• Material: UV-Rated Plastic
• Product Weight: 2.38 lbs
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Arlington Industries
• Manufacturer Part #: GPD19BR
• UPC: 018997770219

Features

• Clear, extra-duty weatherproof-in-use cover for outdoor 15 or 20 AMP receptacles
• Molded-in permanent color that resists chipping and color loss
• Built-in stabilizers provide rigid support with no assembly required
• Angle-cut post base for easy access to underground wires
• Includes standard duplex and GFCI wall plates; no gasket needed
• UL Listed enclosure that meets NEC box support and extra-duty weatherproof code requirements
• CSA listed with grounding lug

Downloads & Links

• Catalog Page
• Specification Sheet
• GPD19BR Line Drawing
