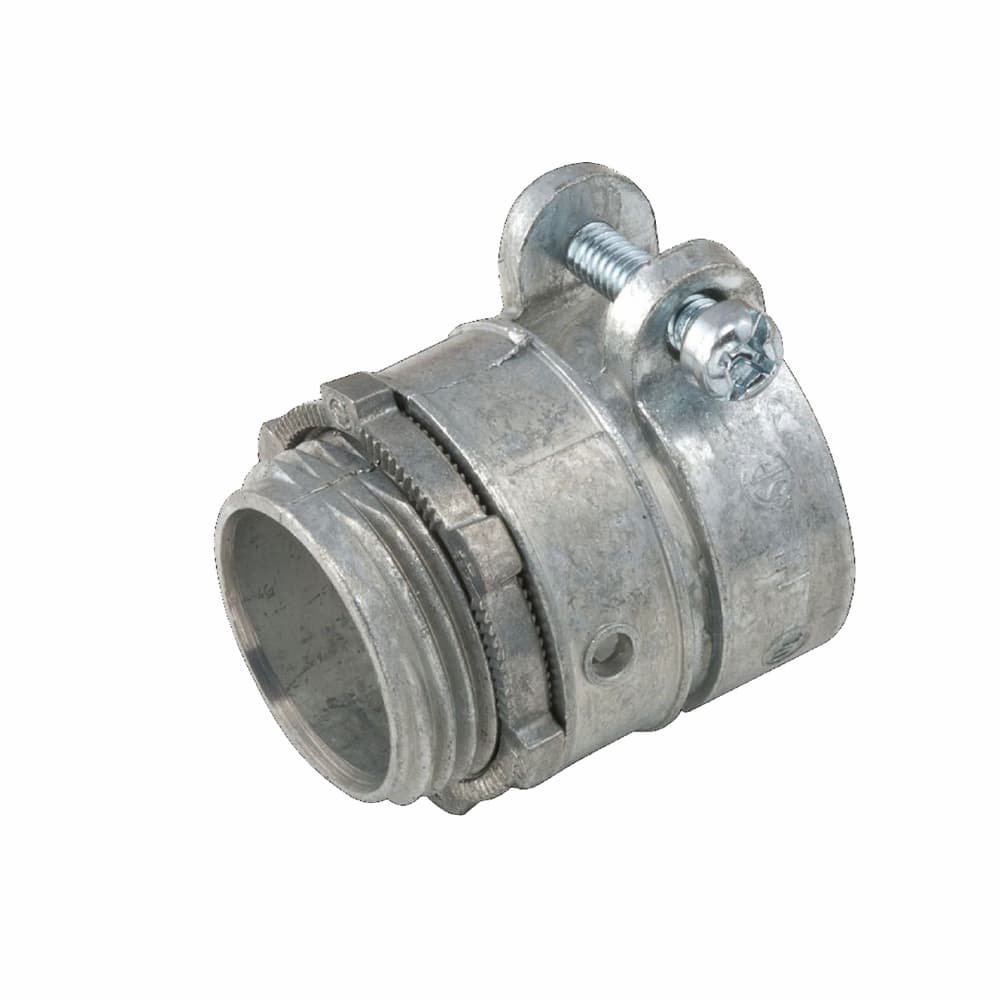

ARFCNS-400 - 4" FLEX AC MC Straight Connector Squeeze-Zinc

The ARFCNS-400 is a squeeze-type straight connector designed for terminating flexible metal conduit, armored cable, and metal clad flexible metal conduit to knockouts or unthreaded slip holes in dry location boxes or enclosures. This product is suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable termination fittings. It is manufactured by Ammo International with zinc die cast construction for durability and compliance with industry standards.

Specifications

• Size: 4"
• Dimensions (A x B x C): 3.93 in x 4.84 in x 0.86 in
• Screws: 2
• Weight: 1.65 lb
• Material: Zinc die cast body and locknut
• UPC: 840526218950
• Certifications: UL Standard 514B, CSA Standard C22.2 No. 18

Features

• Male hub threads NPS
• Available with insulated throat
• Furnished with locknuts
• Combination head screws for secure installation
• Easy installation process
