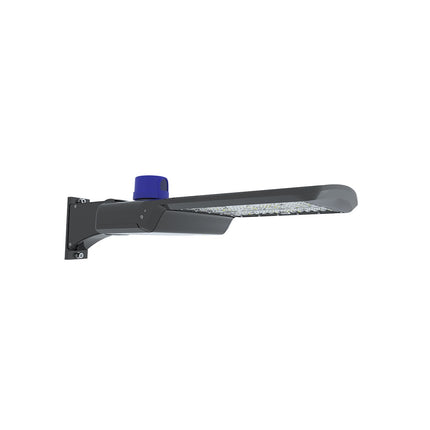

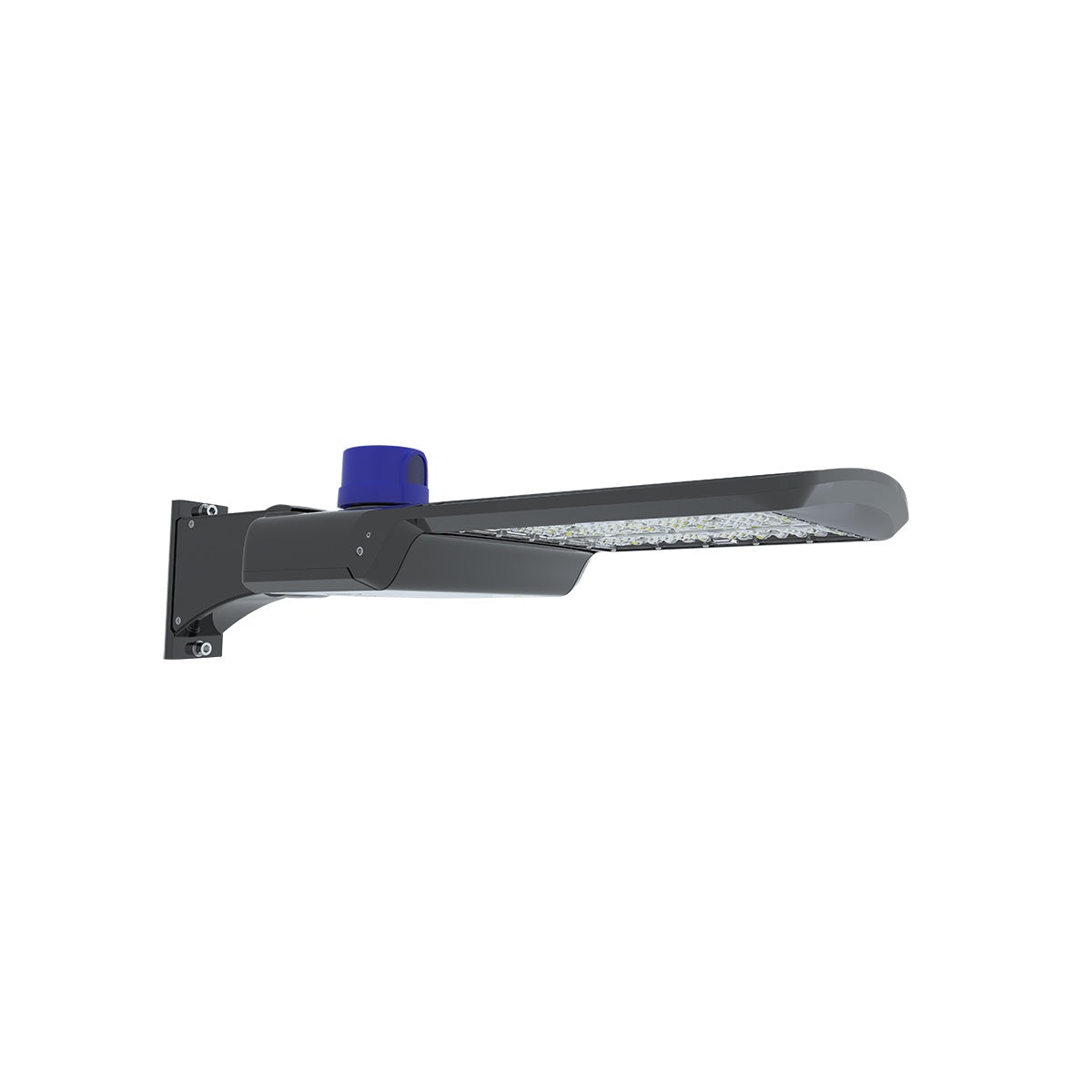

AREALIGHTS 11168-21875.1 LUMENS A17 3WAY FIELD ADJUSTABLE CCT 70W-100W-150W LED BRONZE Area Light

This AREALIGHTS A17 field-adjustable LED area light by RAB offers versatile lighting solutions for outdoor environments, suitable for electrical distributors and switchgear suppliers requiring efficient, adjustable illumination. Designed for energy efficiency and ease of installation, it supports field adjustment of color temperature and wattage to meet varied lighting needs.

Specifications

• Manufacturer: RAB
• Model Number: A17XFU150
• Lumens: 11,168 lumens
• Efficacy: 134 lumens per watt
• Input Wattage: 70 watts (field adjustable up to 150W)
• Color Accuracy: 71 CRI (Color Rendering Index)
• Lens Material: Polycarbonate
• Dimensions (L x W x H): 28.35" x 11.3" x 6.3"
• Product Weight: 12.32 lbs
• Operating Ambient Temperature: Up to 104¬∞F
• Minimum Starting Temperature: -40¬∞C
• Field Adjustable Color Temperature and Wattage: 70W, 100W, 150W at 4000K CCT factory setting

Features

• Field-adjustable wattage and color temperature (CCT) for customized lighting control
• Universal voltage driver compatible with 120V through 277V, 50/60 Hz
• 0-10V dimmable wiring for flexible light level control
• Durable polycarbonate lens for impact resistance and longevity
• Adjustable mounting arm allowing 0-35¬∞ fixture angle adjustment for precise aiming
• Photocell and shorting cap included for automated or manual operation
• Designed for easy installation and maintenance with clear wiring instructions and safety warnings

Downloads & Links

• Instructions
