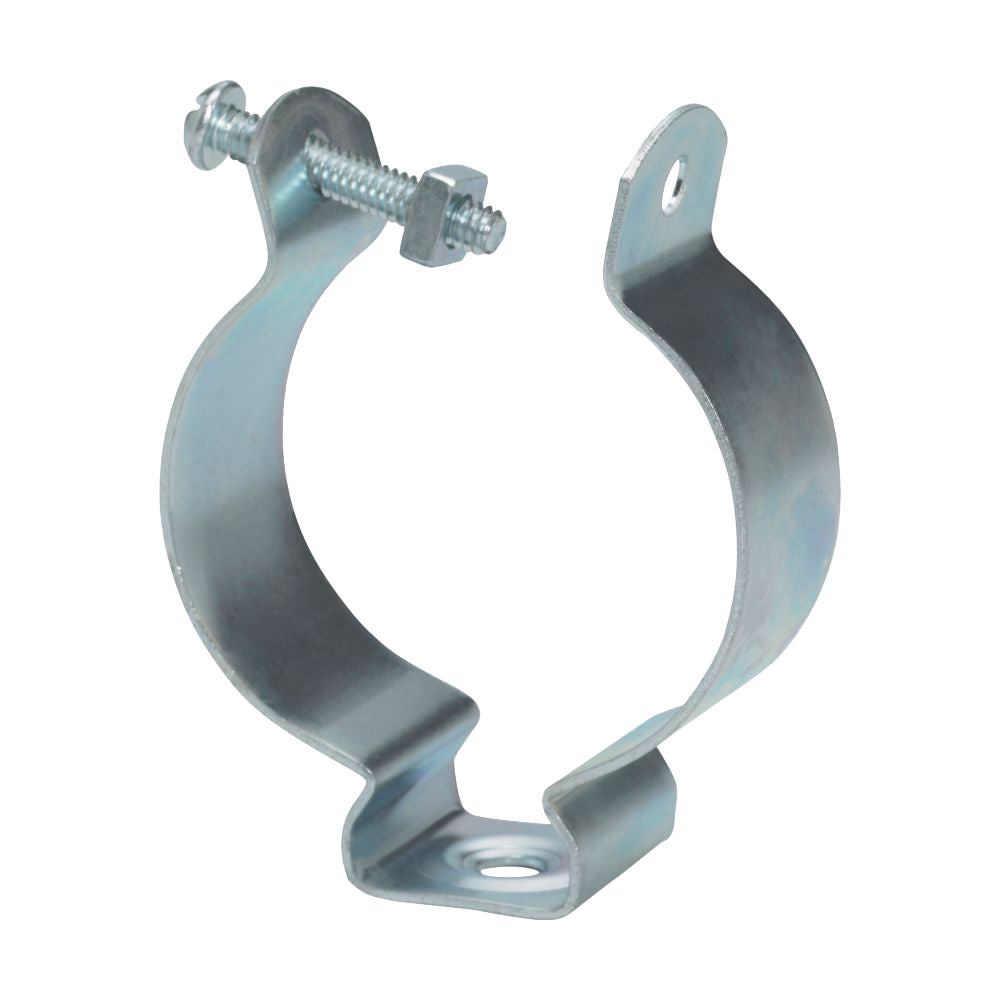

ARCH-75 - 3/4" Hangers for Rigid Conduit, IMC & EMT with Bolts

The ARCH-75 conduit hanger is designed to secure and suspend 3/4" rigid, IMC, and EMT conduit from overhead supports. Suitable for both indoor and outdoor use, it supports conduit runs in wet or dry locations from ceilings and walls. This product is ideal for electrical distributors and switchgear suppliers requiring reliable fastening solutions for wire and cable installations.

Specifications

• Size for EMT: 3/4"
• Size for Rigid: 3/4"
• Bolt Size: 1/4" - 20
• Dimension A: 2.20 in
• Dimension B: 0.73 in
• Dimension C: 0.83 in
• Dimension D: 0.26 in
• Weight: 0.033 lb
• Manufacturer Part #: ARCH-75
• UPC: 837654066492

Features

• Assembled with nut and bolt for secure installation
• Constructed from zinc plated steel for corrosion resistance
• Suitable for use in wet or dry locations
• Supports conduit runs from ceilings and walls
