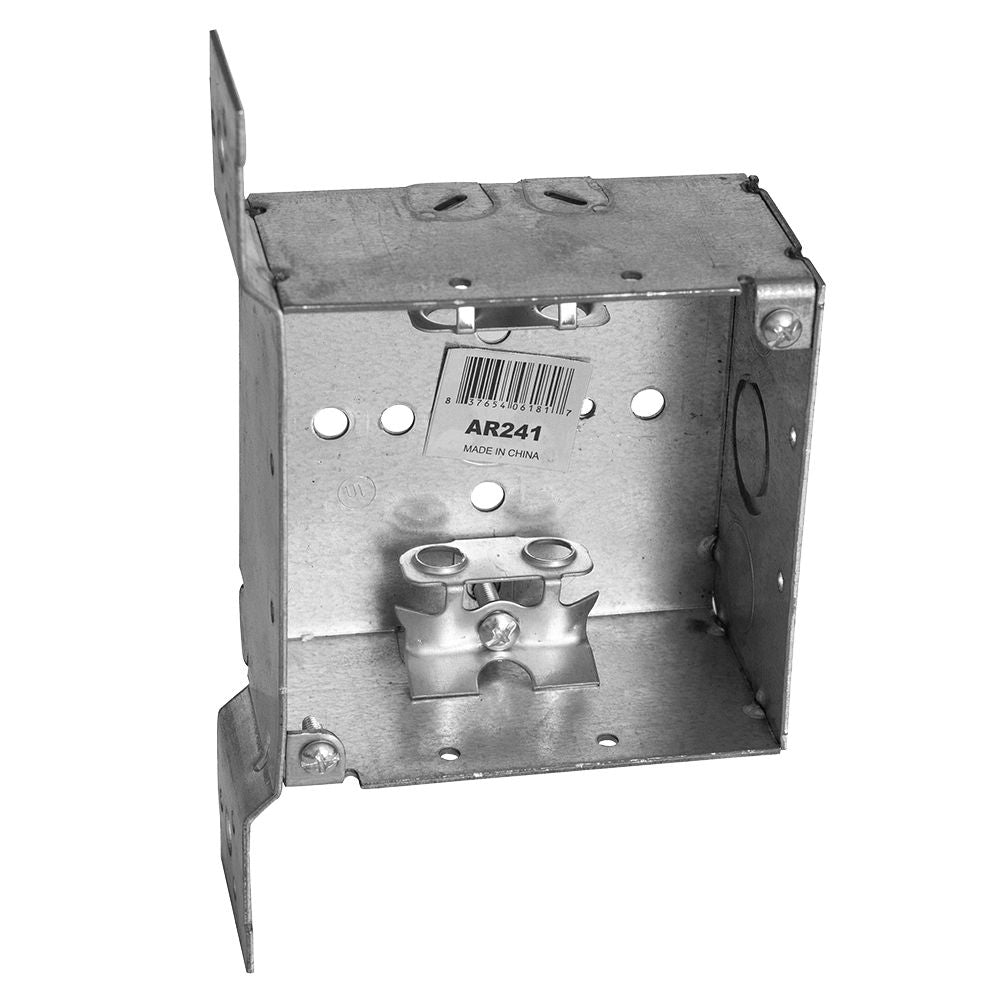

AR241 - 4S MC BOX 2-1/8" DEEP FB Bracket Electrical Box

The AR241 is a 4-inch square electrical box with a 2-1/8 inch depth, designed for installation in walls or ceilings to support lighting fixtures, switches, or receptacles. This product is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. It facilitates multiple conductor runs split into two or more directions to distribute power efficiently to various electrical devices.

Specifications

• Material: Steel
• Length / Depth: 2-1/8 in
• Width: 4.313 in
• Height: 7.00 in
• Cubic Capacity: 30.3 cu in
• Raised: Ground
• Fire Rated Walls: 2 hour fire
• Package Type: Loose
• Product UPC-A Labeled: Yes
• Weight: 1.08 lb

Features

• Welded steel construction with TS side-mount bracket featuring gauging tabs and recessed nailing spurs
• Includes nonmetallic sheathed cable (NMSC) clamps
• BX clamps provided for steel and aluminum armored cable, MCI cable, MCI-A cable, and flexible conduit
• EKO Knockouts for design and installation flexibility
• Supplied with three 1/2 inch and one 1/2 - 3/4 inch EKO knockouts
• Combination Phillips / slotted screw heads for versatile installation

Downloads & Links

• Spec Sheet
• Specification Sheet
