Appleton™ U-Line™ Factory Sealed 20 Amp Plugs and Receptacles - Hazardous Location Electrical Connectors

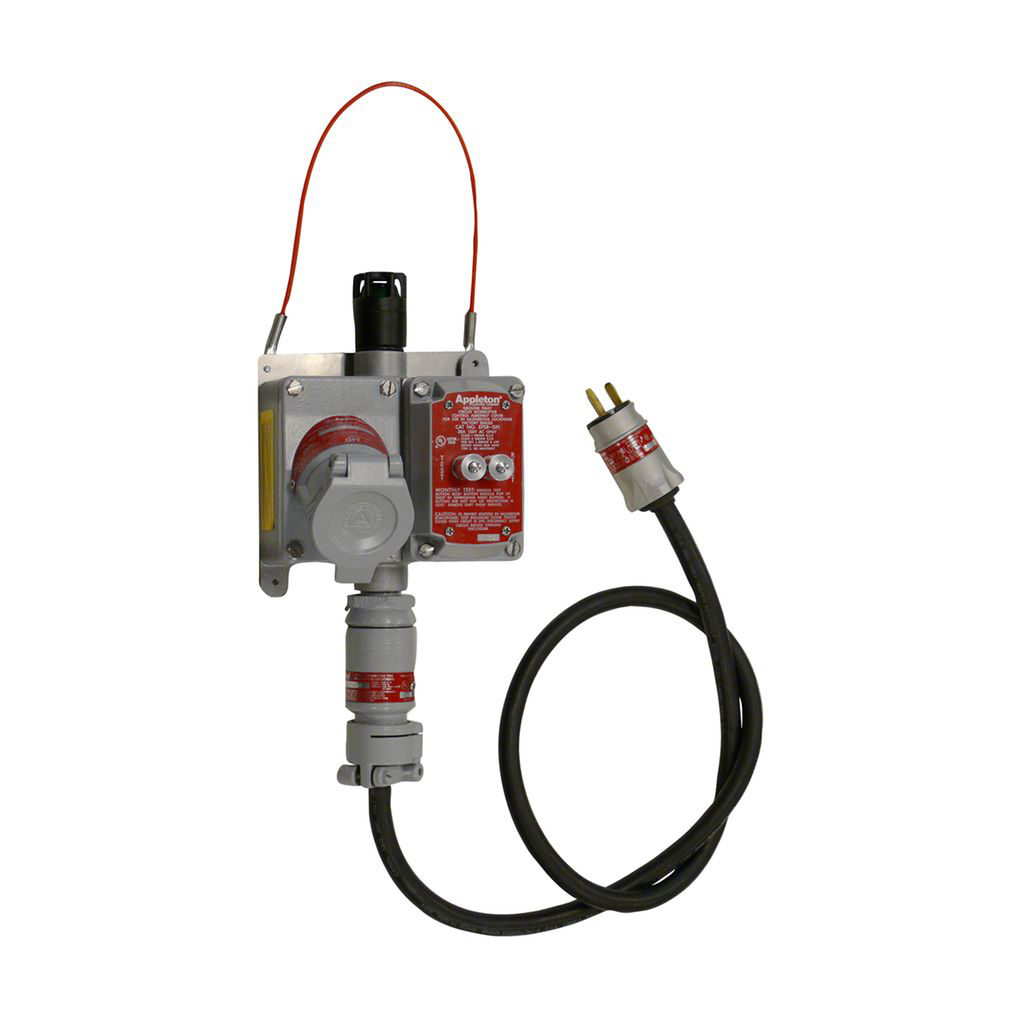

Appleton™ U-Line™ Factory Sealed 20 Amp Plugs and Receptacles are designed for use with stationary or portable electrically operated devices in hazardous locations. These plugs and receptacles ensure safe electrical connections by allowing the ECP Interchanger plug, which features built-in switch contacts, to fit into standard NEMA 5-20R and 6-20R receptacles while preventing standard plugs from mating with the receptacle. This product is suitable for electrical distributors and switchgear suppliers requiring reliable connections in environments with flammable vapors, gases, or corrosive conditions.

Specifications

• Amperage: 20 amperes
• Horsepower: 1 horse power
• Number of Wires: 2
• Manufacturer: Appleton
• Manufacturer Part #: EFS1752023
• Product Weight: 4.67 lbs

Features

• Factory sealed design for hazardous locations
• Built-in switch contacts activate upon plug insertion and twist
• Compatible with standard NEMA 5-20R and 6-20R receptacles but prevents use of standard plugs for safety
• Suitable for 125V at 20A and 250V at 20A applications
• Receptacle is grounded through an extra pole and the housing
• Designed for use where flammable vapors, gases, or corrosive conditions are present

Downloads & Links

• Instruction Sheet: ECP and NCP Plugs, 330062 | Appleton
• Instruction Sheet: U-Line Contender and U-Line Factory Contender Factory Sealed 20 Amp Plugs and Receptacles, 330062-1 | Appleton
• Catalog: U-Line Factory Sealed 20 Amp Plugs and Receptacles | Appleton
• Product Guide: Appleton U-Line Interchanger 15 and 20 Amp Plugs | Appleton
• Instruction Sheet: ECP and NCP Plugs, 330100
