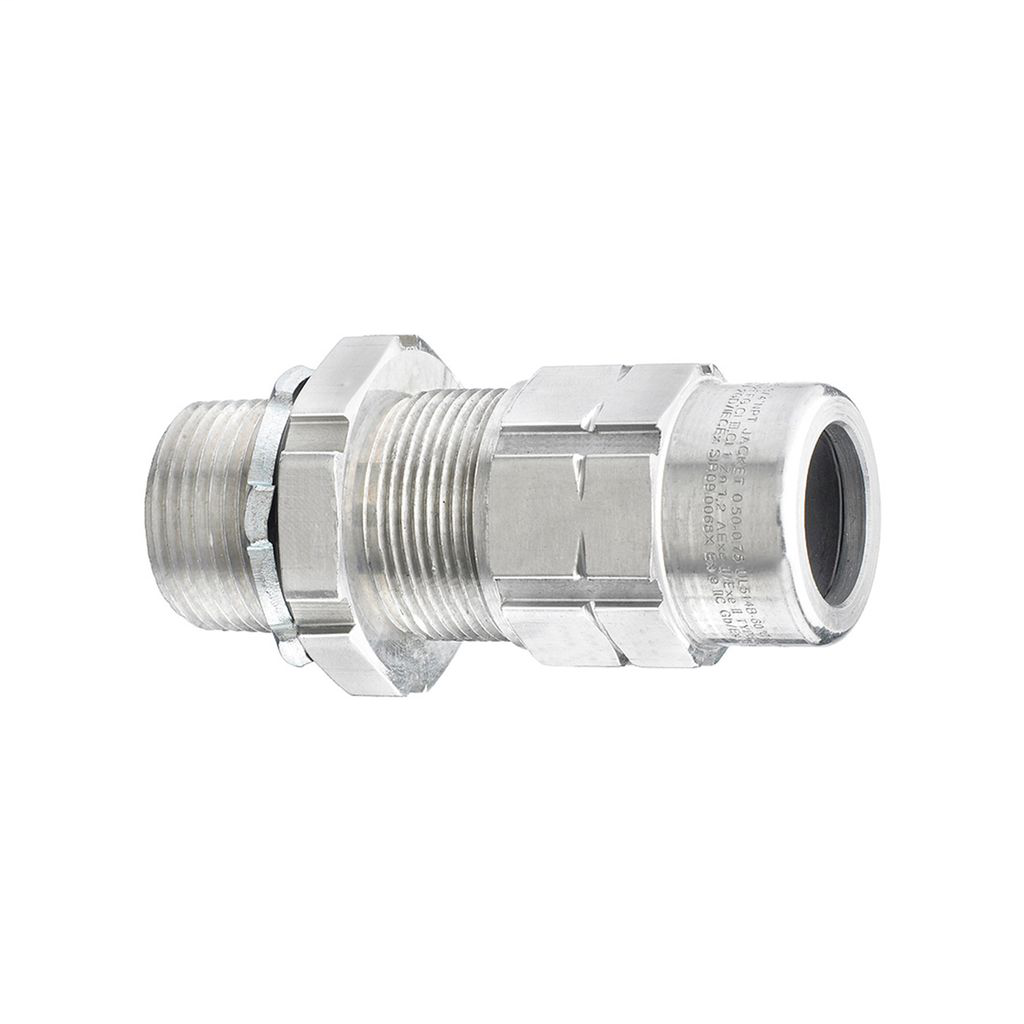

Appleton™ TMC2 Connectors For Jacketed Metal Clad Cable - Electrical Connectors

Appleton™ TMC2 Connectors are engineered for terminating jacketed type MC cables, including MC/MC-HL, corrugated interlocked aluminum/steel armor, and continuously welded armor cables such as TECK or CLx. These connectors provide a mechanical watertight connection while ensuring ground continuity for cable armor, making them suitable for use by electrical distributors and switchgear suppliers in demanding industrial and hazardous location applications.

Specifications

• Product Weight: 0.75 kg
• Trade Sizes: 1/2” through 4”
• Cable Jacket Diameter Range: 0.50” to 4.25”
• Cable Armor Diameter Range: 0.42” to 3.94”
• Operating Temperature: -60 °C to +110 °C (-76 °F to +230 °F)
• Certifications: UL 514B, UL 2225, CSA C22.2 No. 174, cCSAus Certified 249506
• Ingress Protection: NEMA 4X, IP66

Features

• Simplified two-piece design for ease of installation
• Integral ‘O’ ring face seal providing watertight protection (4X and IP66 rated)
• Independent sealing and armor clamping for secure connections
• True 360° grounding ensuring continuous ground path
• Removable cable armor end stop accommodates larger insulated conductors
• Aluminum connectors (1/2”, 3/4”, 1”) supplied with zinc-plated steel locknut
• Superior pull-out prevention and compact slim profile
• Reduced installation time with no disassembly required
• Widest cable acceptance range for versatile application
• Re-usable design for cost efficiency
• Additional integral deluge proof seal for protection in extreme offshore and onshore environments
