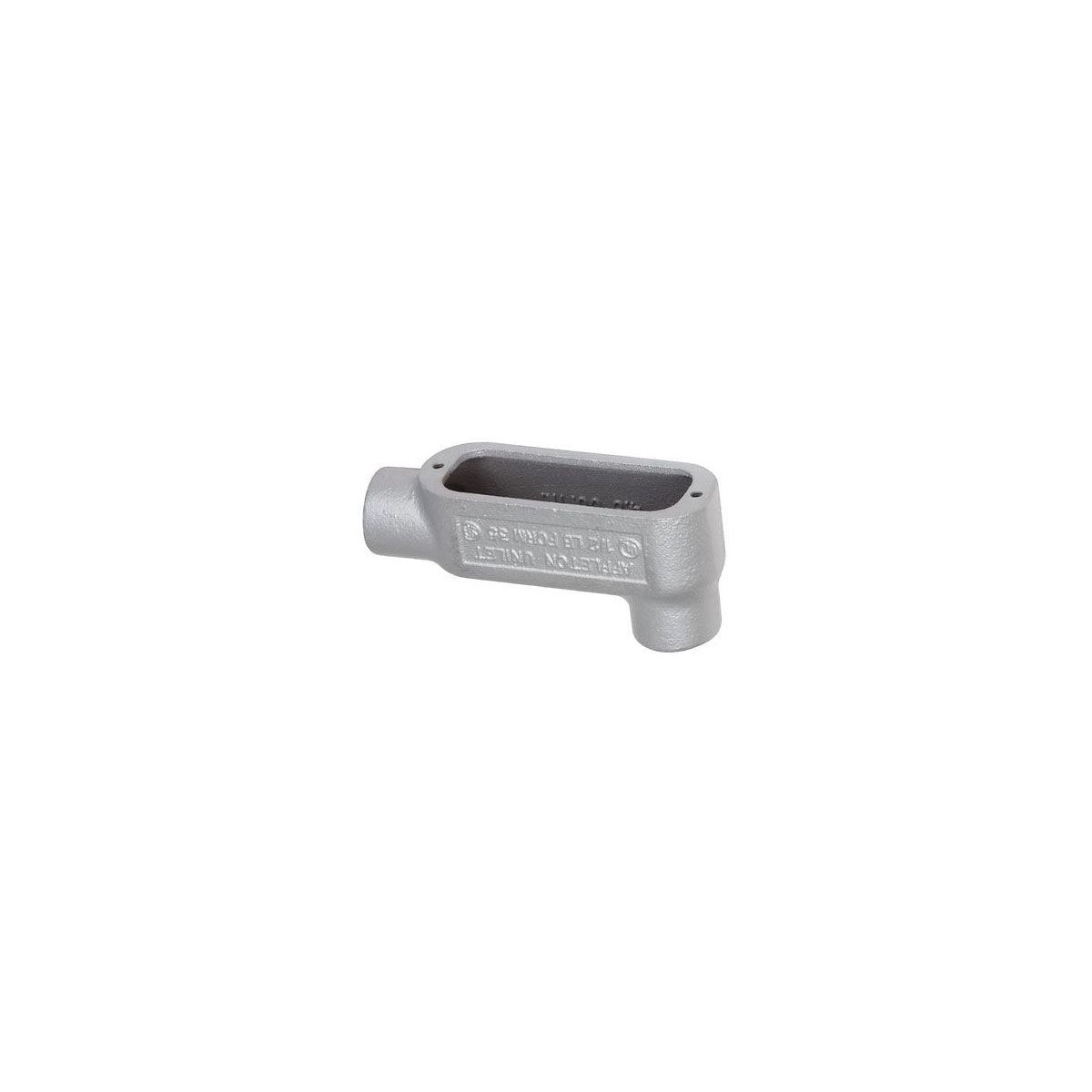

APPLETON LR150M UNILET FORM 35 11/2 THR Conduit Outlet Body

The APPLETON LR150M Unilet Form 35 conduit outlet body is designed for use with rigid steel, rigid aluminum, and IMC conduit systems. It serves as a pulling fitting, facilitates bends in conduit runs, provides openings for splicing, and allows access to conductors for maintenance. This product is suitable for electrical distributors and switchgear suppliers requiring durable conduit bodies in lighting solutions and wire and cable installations, especially in hazardous locations classified as Class I, Division 2 per NEC 501.10(B)(4).

Specifications

• Manufacturer: Appleton Electric
• Manufacturer Part #: LR150-M
• Conduit Body Style: LR (Form 35)
• Hub Size: 1-1/2 inches
• Material: Malleable iron body with triple-coat finish (zinc electroplate, chromate, epoxy powder coat)
• Cover Screws: Stainless steel
• Gaskets: Neoprene or composition fiber
• Weight: 2.5 lbs
• UL Listed: E2527
• CSA Certified: 065183
• UL Standards: 514A, 514B
• CSA Standard: C22.2 No. 18.3
• NEMA Standard: FB-1
• Maximum Wire Fill: (3) #1/0 conductors per NEC Annex C Table C8

Features

• Smooth, rounded integral bushings in hubs protect conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and excellent ground continuity
• High tensile strength and ductility with corrosion, impact, and shock resistance
• Flat back design for mounting flush against surfaces
• Suitable for hazardous locations, Class I, Division 2
• Complies with NEC/CEC standards for safety and performance
