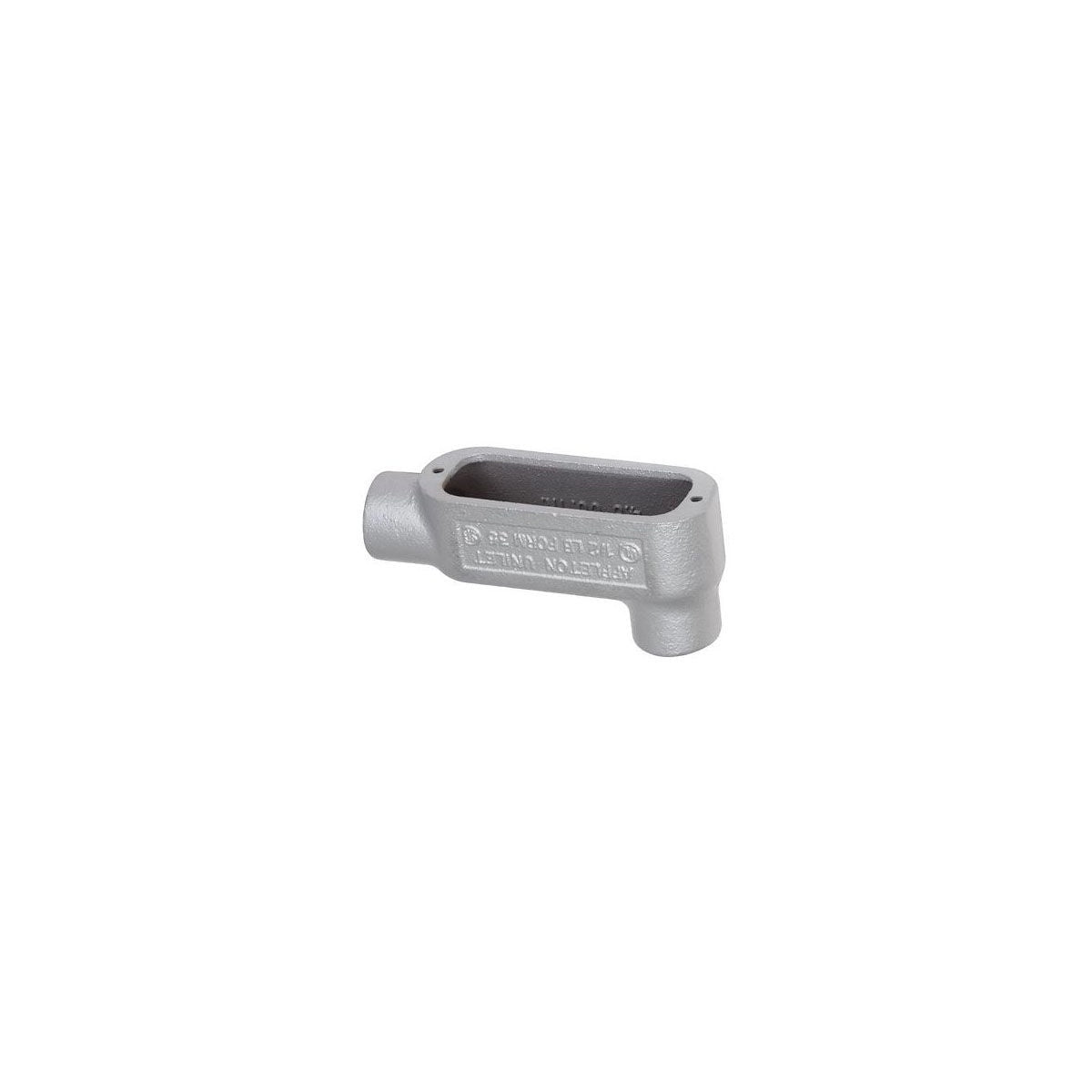

APPLETON LL150M UNI FORM 35 11/2 THREAD (A) - Malleable Iron Conduit Outlet Body

The Appleton LL150M is a Form 35‚Ñ¢ malleable iron conduit outlet body designed for use with rigid steel, rigid aluminum, and IMC conduit. It serves as a conduit system component for pulling fittings, making bends, providing openings for splicing, connecting and changing conduit directions, and allowing access for conductor maintenance. This product is suitable for hazardous locations classified as Class I, Division 2 per NEC 501.10(B)(4), making it ideal for electrical distributors and switchgear suppliers requiring durable and reliable conduit solutions.

Specifications

• Manufacturer: Appleton Electric
• Manufacturer Part #: LL150-M
• Product Weight: 2.93 lbs
• Material: Malleable iron body
• Thread Size: 1-1/2 inch trade size
• Compatible Conduit Types: Rigid Steel, Rigid Aluminum, IMC
• UL Listed: E2527
• CSA Certified: 065183
• UL Standards: 514A, 514B
• CSA Standard: C22.2 No. 18.3
• NEMA Standard: FB-1
• Hazardous Location Rating: Class I, Division 2
• Maximum Wire Fill: (3) #1/0 conductors (LL style)

Features

• Form 35‚Ñ¢ malleable iron Unilets‚Ñ¢ provide high tensile strength and ductility with corrosion, impact, and shock resistance.
• Accurately tapped, tapered threads ensure tight, rigid joints and excellent ground continuity.
• Smooth, rounded integral bushings in hubs protect conductor insulation.
• Flat-back design suitable for mounting flush against surfaces.
• Triple-coat finish on bodies and covers: zinc electroplate, chromate, and epoxy powder coat for enhanced corrosion resistance.
• Suitable for use as pulling fittings, bends, splice openings, conduit run connections, and maintenance access.
