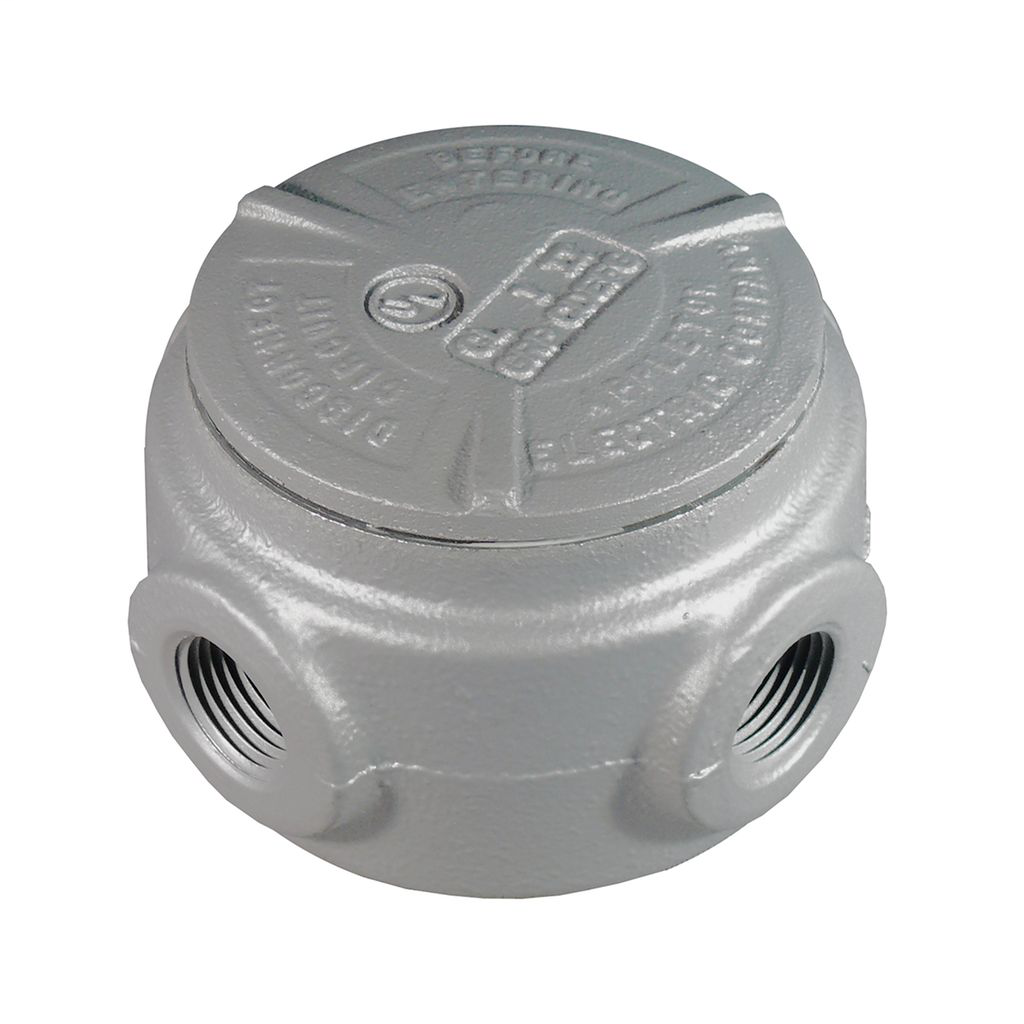

Appleton™ GRJS Universal Conduit Outlet Boxes - Explosionproof Conduit Outlet Box

Appleton™ GRJS Universal Conduit Outlet Boxes are explosionproof and dust-ignitionproof conduit outlet boxes designed for use in classified indoor and outdoor locations. These corrosion-resistant boxes provide access for maintenance, enable connection of different conduit lengths, and allow changes in conduit direction. Ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable management in hazardous environments.

Specifications

• Conduit Size: 3/4 inch
• Cover Opening Diameter: 65.0 mm (2.56 in)
• Capacity: 0.12 dm³ (7.3 in³)
• Material Body: Malleable iron
• Material Cover: Copperfree aluminum (max 0.4% copper)
• Weight: 2.6350 lbs
• Finish Body: Triple-coat zinc electroplate, chromate, epoxy powder coat
• Finish Cover: Epoxy powder coat
• Certifications: UL Standard UL 886 (UL 1203), UL Listed E10444

Features

• Explosionproof, dust-ignitionproof design suitable for Class I, Division 1 & 2, Groups C, D; Class II, Division 1 & 2, Groups E, F, G; and Class III locations
• Corrosion-resistant for indoor and outdoor use
• Five threaded universal openings with three close-up plugs for versatile conduit connections
• Internally threaded malleable iron body with externally threaded aluminum cover
• Compact round design for use in limited space
• Serves as mounting means for lighting fixtures when used with hub cover
• Accurately tapped tapered hub threads ensure tight, rigid joints and ground continuity
• Smooth, rounded integral bushing in each hub protects conductor insulation

Downloads & Links

• Catalog: GRJS Universal Conduit Outlet Boxes | Appleton
