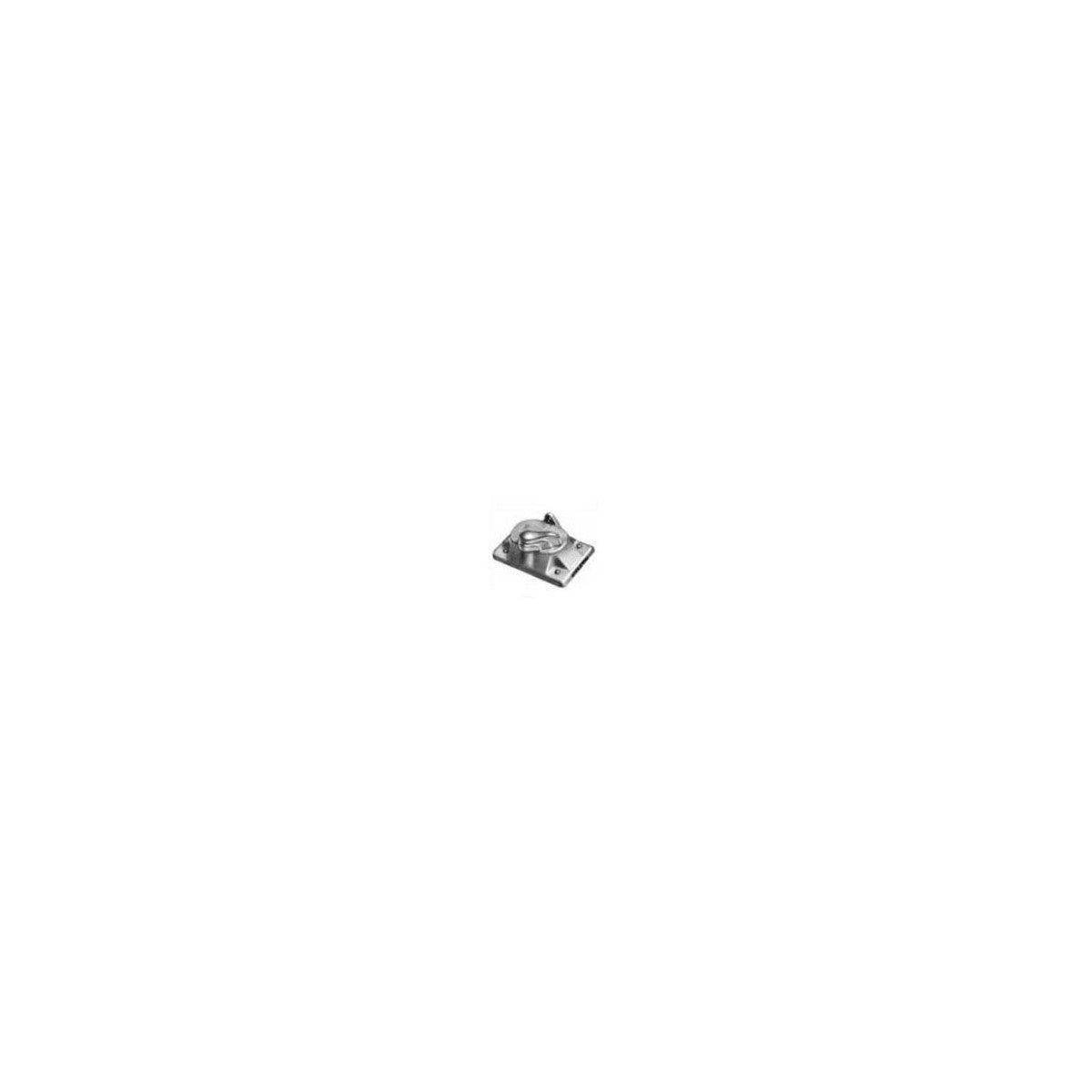

APPLETON FSK1VS Vaporproof Cover Single Gang - Cast Device Box Cover

The APPLETON FSK1VS vaporproof cover is designed for use with single gang cast device boxes, providing a secure, weatherproof solution for electrical distributors and switchgear suppliers. Ideal for indoor and outdoor applications, this cover supports lighting solutions and wire and cable installations requiring protection against moisture, dust, and environmental exposure.

Specifications

• Manufacturer Part #: FSK1VS
• Product Weight: 0.9050 lbs
• UPC: 781381348706
• Material: Malleable iron or aluminum (based on model)
• Finish: Epoxy powder coat (aluminum) or triple-coat zinc electroplate, chromate, and epoxy powder coat (malleable iron)
• Gasket: Neoprene for wet location sealing
• Screws: Stainless steel captive screws
• Hole Diameter: 1-7/16 inches

Features

• Corrosion-resistant construction suitable for harsh environments
• Weatherproof, raintight, and dust-tight when used with gasketed covers
• Designed for use with single gang device boxes for switches or toggle controls
• Captive stainless steel screws for secure, efficient installation
• Positive seal gasket wraps around ridge top of device box to prevent moisture ingress
• Compatible with standard flush wiring devices and toggle switches
• Listed for ordinary locations under UL Standard 514A and UL Listed E2527

Downloads & Links

• Spec Sheet
