Appleton‚Ñ¢ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton‚Ñ¢ EXGJH and EXLK flexible couplings are designed for use in electrical distribution systems where vibration and movement present challenges. These explosionproof and dust-ignitionproof couplings serve as flexible alternatives to rigid conduit in difficult-bend applications, making them suitable for hazardous locations requiring durable and reliable wire and cable connections. Ideal for lighting solutions and switchgear supplier applications, these couplings ensure safety and mechanical resilience in hazardous environments.

Specifications

• Material: Brass
• Finish: Natural
• Product Weight: 13.9 lbs
• UL Listed: E34997
• CSA Certified: 065181
• UL Standard: 886 (1203)
• CSA Standards: C22.2 No. 25, C22.2 No. 30
• ATEX Certification: LCIE 11 ATEX 3006U (stainless steel versions)
• Ingress Protection: IP66 (stainless steel models)
• Ambient Temperature Range: -40 ¬∞C to +150 ¬∞C (-40 ¬∞F to +302 ¬∞F)

Features

• Explosionproof, dust-ignitionproof, and watertight design
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity
• Heavy-duty construction resists mechanical abuse
• Electrical conductivity equal to rigid conduit on a similar length basis‚Äîno bonding jumper required
• Interior insulating liner protects conductors from abrasion under vibration

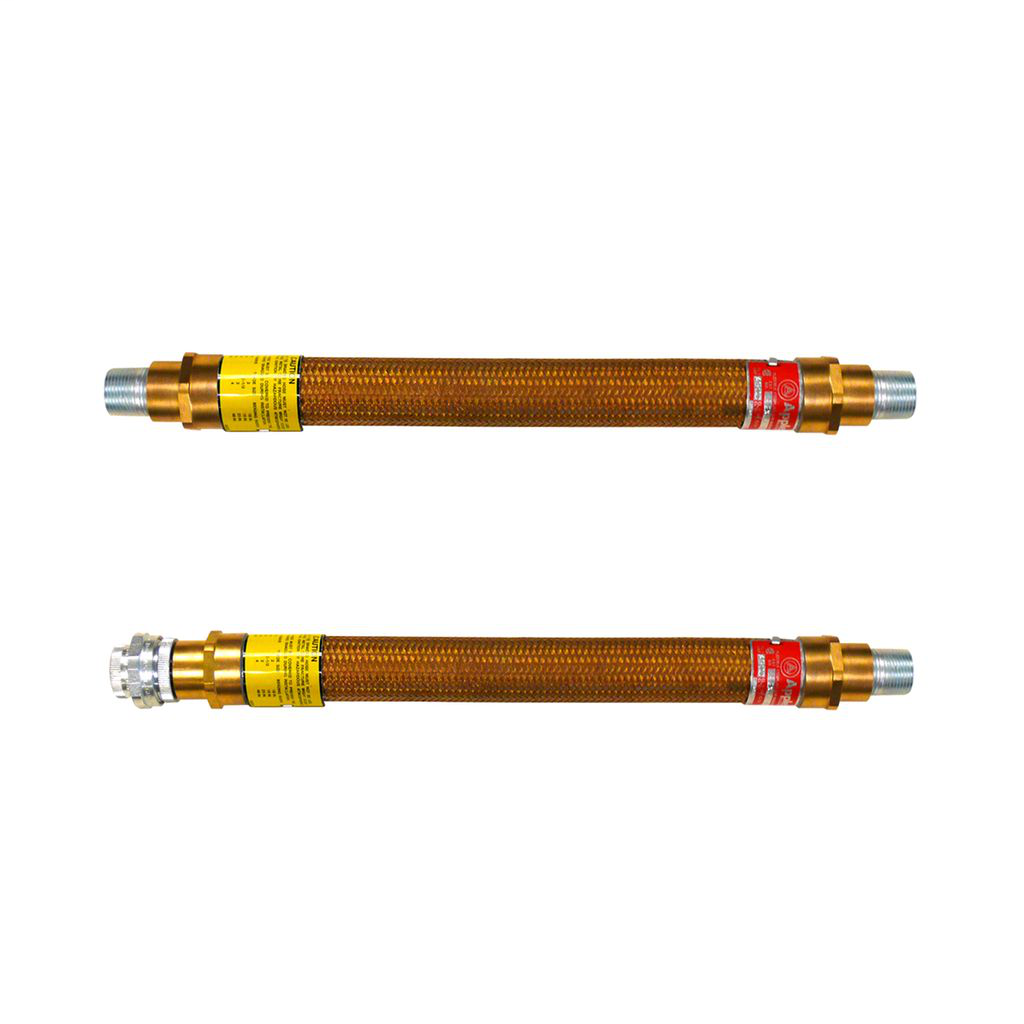

• EXGJH model features female end fittings with removable male nipples at both ends
• EXLK model features one female end fitting with union and one female end fitting with removable male nipple
• Available in sizes 1/2" through 4", with stainless steel options for 1/2" through 2"
• Custom lengths available upon request
