Appleton‚Ñ¢ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton‚Ñ¢ EXGJH and EXLK flexible couplings are designed for use in hazardous locations where vibration and movement present challenges. These explosionproof, dust-ignitionproof, and watertight flexible couplings serve as alternatives to rigid conduit in difficult-bend situations, providing reliable electrical continuity and mechanical protection. Ideal for electrical distributors and switchgear suppliers, they support safe and durable wire and cable installations in industrial and commercial lighting solutions.

Specifications

• Material: Brass
• Finish: Natural
• Product Weight: 3.98 lbs
• Manufacturer Part #: EXLK236SS
• Certification: UL Standard 886 (1203), UL Listed E34997, CSA Standard C22.2 No. 25 and No. 30, CSA Certified 065181
• ATEX Certification: LCIE 11 ATEX 3006U, IP66 rated
• Ambient Temperature Range: -40 ¬∞C to +150 ¬∞C (-40 ¬∞F to +302 ¬∞F)
• Application Classes: NEC/CEC Class I, II, III; Division 1 and 2; Groups A, B, C, D, E, F, G; Zones 1 and 2; ATEX Zones 1, 2, 21, 22

Features

• Explosionproof, dust-ignitionproof, and watertight design suitable for hazardous locations
• Smooth, rounded integral bushing protects conductor insulation
• Accurately tapped, tapered threads provide tight, rigid joints and reliable ground continuity
• Heavy-duty construction resists mechanical abuse
• Electrical conductivity equivalent to rigid conduit on a similar length basis‚Äîno bonding jumper required
• Interior insulating liner protects conductors from abrasion under vibrating conditions

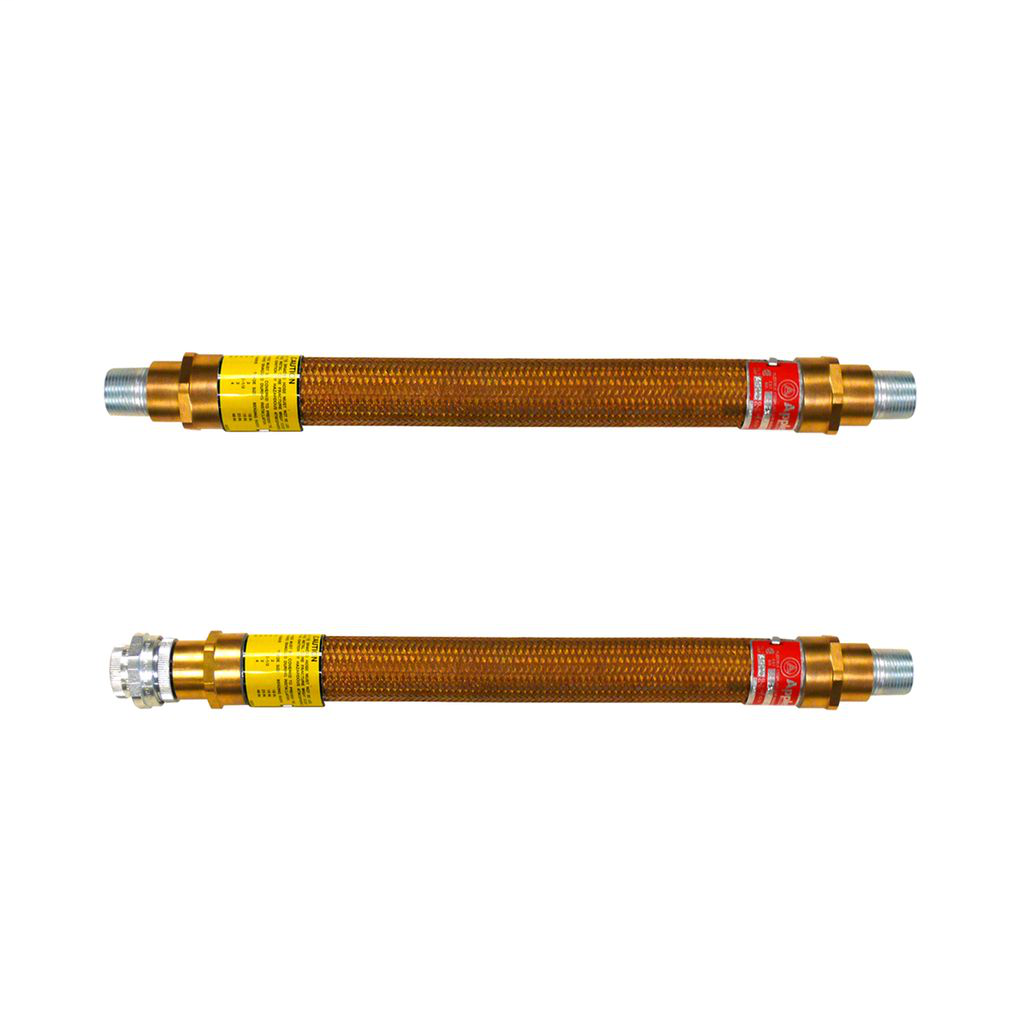

• EXGJH: female end fittings with removable male nipples on both ends
• EXLK: female end fitting with union on one end and female end fitting with removable male nipple on the other end
• Available in sizes 1/2‚Äù through 4‚Äù with options for stainless steel construction and various union materials

Downloads & Links

• Catalog: EXGJH and EXLK Flexible Couplings | Appleton
