Appleton‚Ñ¢ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton‚Ñ¢ EXGJH and EXLK flexible couplings provide explosionproof and dust-ignitionproof solutions designed for use in electrical distribution systems where vibration and movement present challenges. Suitable for replacing rigid conduit in difficult-bend situations, these couplings are ideal for wire and cable installations in hazardous locations, supporting lighting solutions and switchgear supplier requirements.

Specifications

• Material: Brass
• Finish: Natural
• Product Weight: 3.45 lbs
• Manufacturer Part #: EXGJH224
• NEC/CEC Certification: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• UL Listed: E34997
• CSA Certified: 065181
• ATEX Certification: II 2 GD, Ex d IIC Gb, Ex t IIIC Db, IP66

Features

• Explosionproof, dust-ignitionproof, and watertight construction
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity
• Heavy-duty design resists mechanical abuse
• Electrical conductivity equal to rigid conduit on a similar length basis, no bonding jumper required
• Interior insulating liner protects conductors from abrasion under vibrating conditions

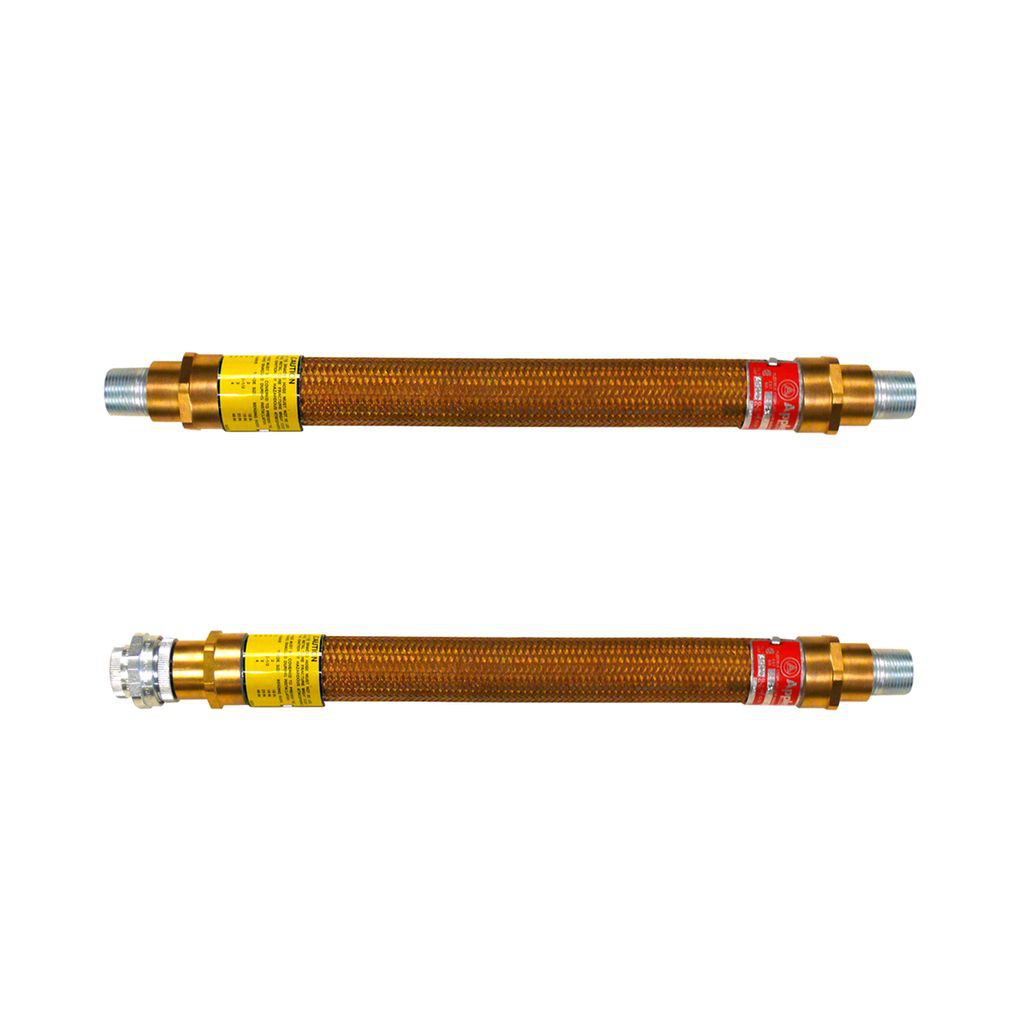

• EXGJH model: both end fittings female with removable male nipples
• EXLK model: female end fitting with union on one end and female end fitting with removable male nipple on the other

Downloads & Links

• Catalog: EXGJH and EXLK Flexible Couplings | Appleton
