Appleton™ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton™ EXGJH and EXLK explosionproof and dust-ignitionproof flexible couplings are designed for use in hazardous locations where vibration and/or movement is a problem. These couplings serve as flexible alternatives to rigid conduit in difficult-bend situations, providing reliable electrical conductivity and mechanical protection. Ideal for electrical distributors and switchgear suppliers, they ensure safety and durability in industrial electrical installations.

Specifications

• Material: Brass
• Finish: Natural
• Product Weight: 2.35 lbs
• Manufacturer Part #: EXGJH212
• UL Listed: E34997
• UL Standard: 886 (1203)
• CSA Certified: 065181
• CSA Standards: C22.2 No. 25, C22.2 No. 30
• NEC/CEC Compliance: Class I, Division 1 and 2; Class II, Division 1 and 2; Class III
• ATEX Certification: II 2 GD, Ex d IIC Gb, Ex t IIIC Db, IP66 (stainless steel sizes)

Features

• Explosionproof, dust-ignitionproof, and watertight construction
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity
• Heavy duty design resists mechanical abuse
• Electrical conductivity equal to rigid conduit on a similar length basis, no bonding jumper required
• Interior insulating liner protects conductors from abrasion under vibrating conditions

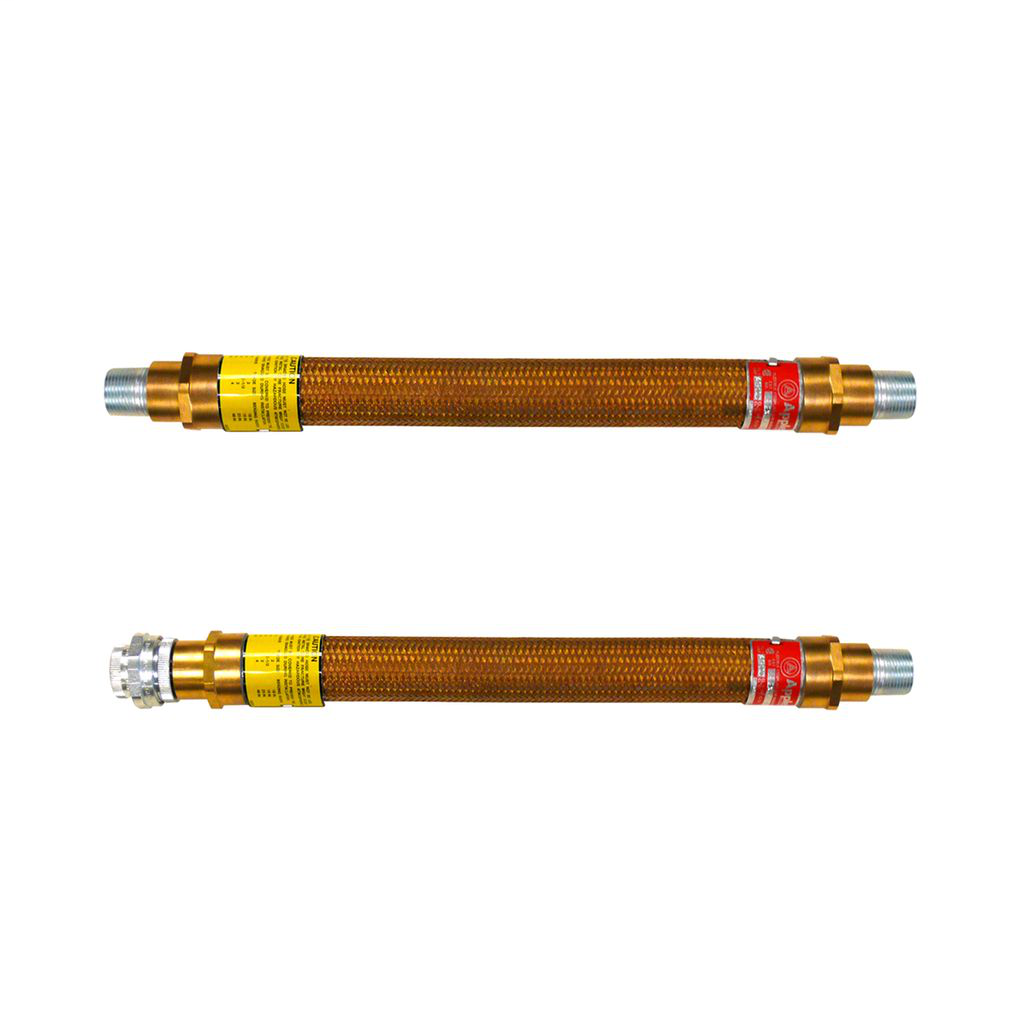

• EXGJH model: both end fittings female, each with removable male nipple
• EXLK model: one female end fitting with union and one female end fitting with removable male nipple
