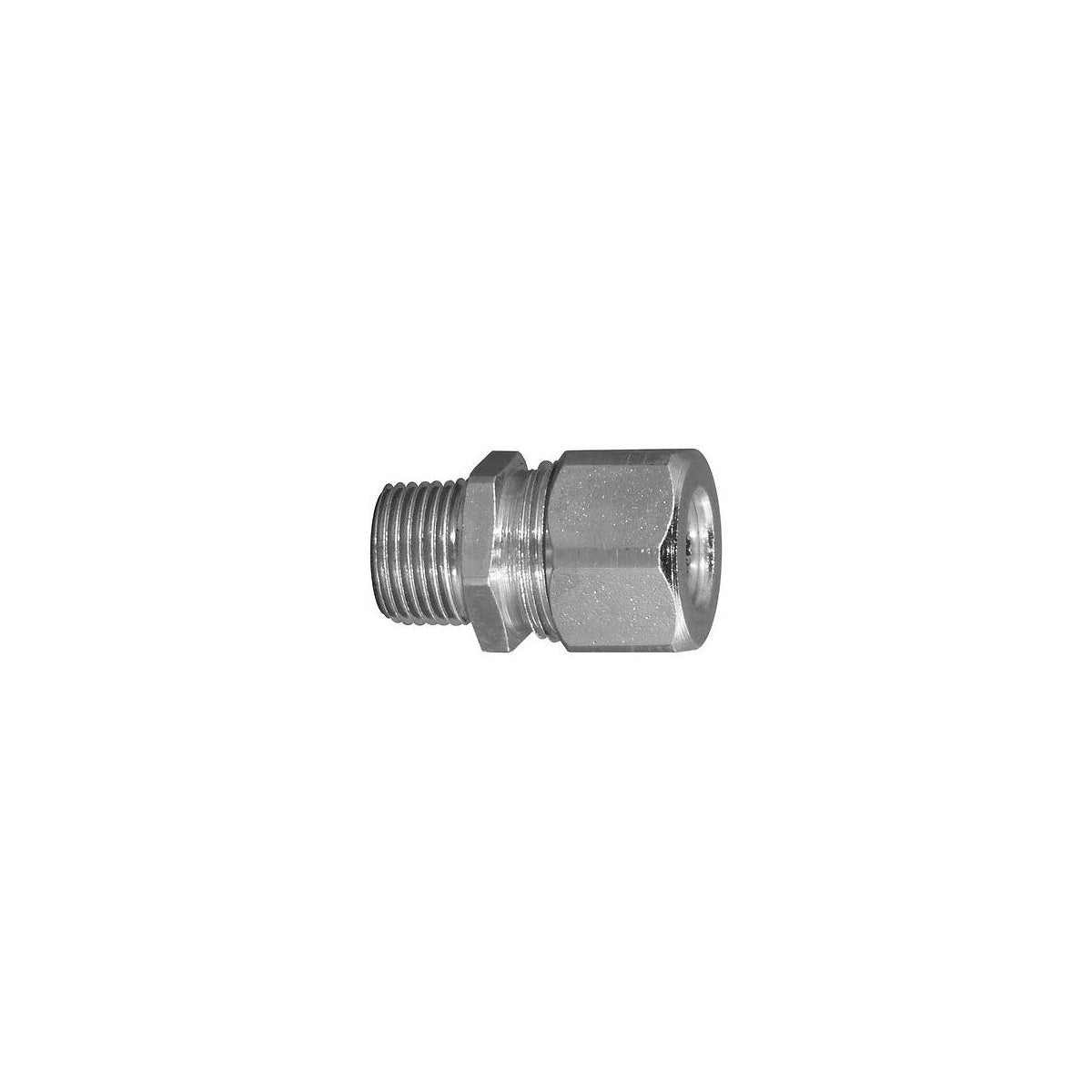

APPLETON CG153200S 2 IN STL L-T CRD&CBL CONN L - Liquidtight Cord and Cable Connector

The APPLETON CG153200S is a 2-inch steel liquidtight strain relief cord and cable connector designed for secure and reliable termination of flexible neoprene, hypalon, and PVC jacketed power or control cords and cables. It is suitable for use in wet or dry locations, providing protection against dust, dirt, oil, water, and other moisture-containing atmospheres. This product is ideal for electrical distributors and switchgear suppliers requiring durable and effective cable connectors for industrial and commercial lighting solutions and wiring applications.

Specifications

• Manufacturer: Appleton Electric
• Manufacturer Part #: CG-153200S
• Material: Steel (machined steel body and cap)
• Cable Diameter Range: 1.531 to 1.780 inches
• Dimensions: A = 62.0 mm (2.44 in), B = 76.2 mm (3.00 in)
• Weight: 104.33 kg per 100 units (230.00 lb per 100 units)
• Product Weight: 1.8400 lb (individual unit)
• UPC: 781381460118
• UL Listed: E14817
• UL Standard: 514B
• CSA Certified: 065178
• CSA Standard: C22.2 No. 18.3
• Suitable for use in Class I, Division 2; Class II, Division 1 and 2; Class III; NEMA 3R environments

Features

• Steel construction with machined steel body and cap for rugged service in non-hazardous areas
• Neoprene sealing grommet provides strain relief and protects internal wiring from external tension
• Steel washer reduces friction between grommet and connector cap for even pressure distribution and leakage prevention
• Hex head cap design for ease of installation
• Silicone free
• Color-coded identification label indicating catalog number and cable diameter range
