Appleton Electric
APPLETON CG100100 1 IN ALUM L-T CRD&CBL CONN
SKU: #405869
Part: #CG-100100
UPC: 781381192002
Appleton Electric
APPLETON CG100100 1 IN ALUM L-T CRD&CBL CONN
SKU: #405869
Part: #CG-100100
UPC: 781381192002
Description

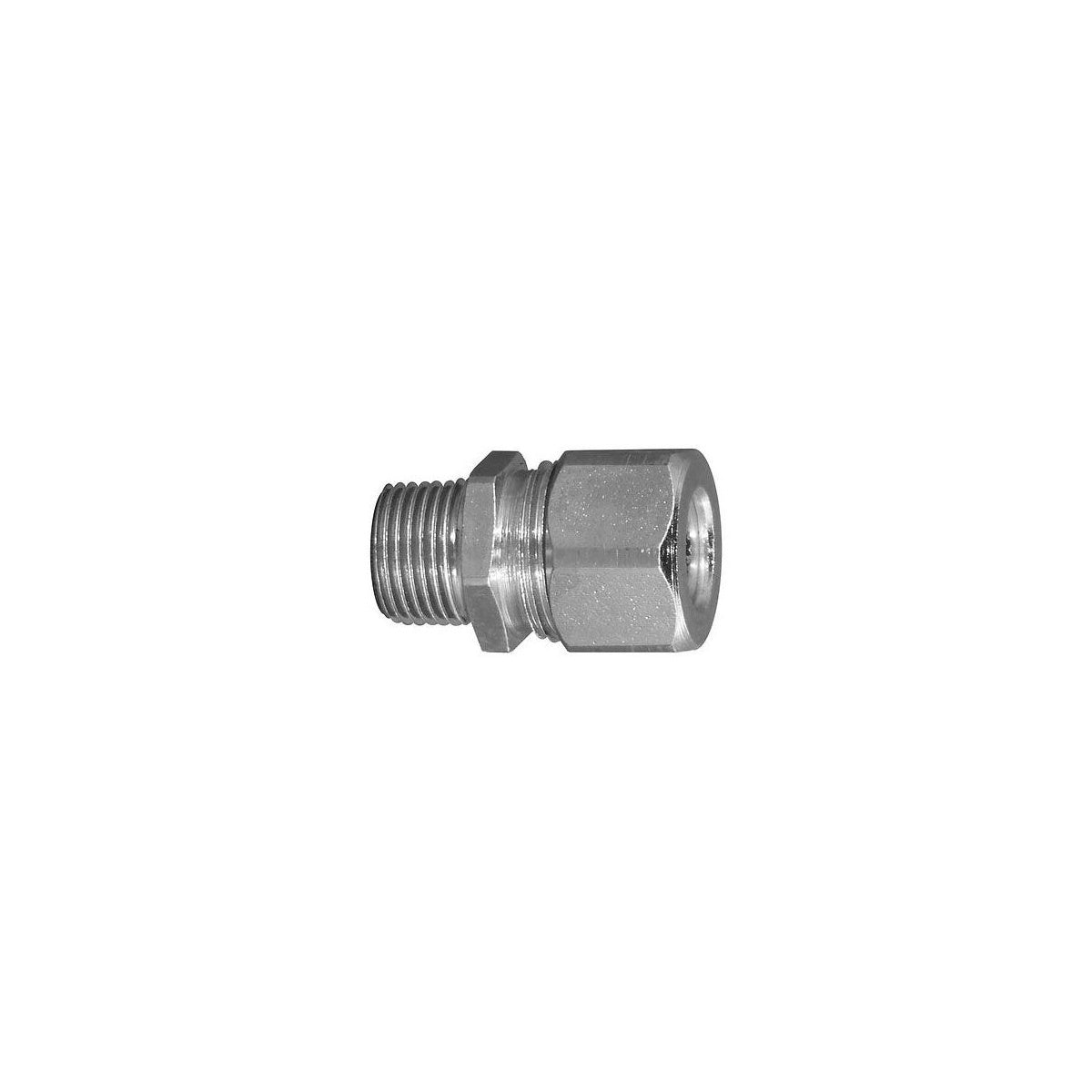

APPLETON CG100100 1 IN ALUM L-T CRD&CBL CONN Liquidtight Strain Relief Connector
The APPLETON CG100100 is a 1-inch aluminum liquidtight strain relief cord and cable connector designed for secure termination of flexible neoprene, hypalon, and PVC jacketed power or control cords and cables. Ideal for electrical distributors and lighting solutions providers, this connector ensures protection against dust, dirt, oil, water, and moisture in both wet and dry locations. It provides strain relief while maintaining the integrity of internal wiring connections, suitable for use in industrial and commercial wire and cable installations.
Specifications
- Manufacturer: Appleton Electric
- Manufacturer Part #: CG-100100
- Cable Diameter Range: 1.000 – 1.125 inches
- Material: Aluminum (body and cap copperfree aluminum)
- Sealing Grommet: Neoprene
- Washer: Steel or Teflon
- Dimensions: Length 44.5 mm (1.75 in), Width 23.9 mm (0.94 in)
- Weight: 6.80 kg per 100 pieces (15.00 lb per 100 pieces)
- UPC: 781381192002
- Product Weight: 0.1400 lb
- UL Listed: E14817
- UL Standard: 514B
- CSA Certified: 065178
- NEC/CEC Suitable for: Class I, Division 2; Class II, Division 1 and 2; Class III; NEMA 3R
Features
- Provides liquidtight and strain relief termination for flexible power or control cords and cables.
- Aluminum construction with copperfree aluminum cap for corrosion resistance and durability.
- Neoprene sealing grommet grips cable jacket firmly to provide strain relief and protect internal wiring.
- Steel or Teflon washer reduces friction and prevents leakage caused by grommet distortion.
- Designed for rugged service in non-hazardous areas and harsh environments.
- Color-coded identification label for easy catalog number and cable diameter range verification.
- Silicone free construction.
